INSTALLATION, OPERATION, AND MAINTENANCE MANUAL
IOM-2296
12-13
I.
DESCRIPTION AND SCOPE
The Model 2296 / 2296HF is a pneumatically actu-
ated, sliding stem globe-style control valve. Available
in Cast Bronze or 316L SST body material, in sizes
1/2" - 2" (DN15 - DN50). Model 2296HF is available
in Cast Bronze body material and only in sizes 1-1/2"
and 2" (DN40-DN50). Internal de sign is a “push down
to close” arrangement.
Failure position is determined by actuator for:
"D" = Direct action; on increasing air loading pressure,
the actuator stem extends. Fail-safe position is with
the stem retracted.
"R" = Reverse action; on increasing air loading pres-
sure, the actuator stem retracts. Fail-safe position is
with the stem extended.
This valve is designed to control general service through
moderately cor ro sive applications, but may be applied
in cryogenic applications also.
SECTION II
MODEL 2296 / 2296HF
GLOBE-STYLE
PNEUMATIC CONTROL VALVE
BODY IOM
SECTION I
ABBREVIATIONS
ATC–FO – Air–to–Close, Fail Open
ATO–FC – Air–to–Open, Fail Close
CCW
– Counter Clockwise
CW –
Clockwise
D or DIR – Direct Acting
IAS
– Instrument Air Supply
LOAD
– Positioner Output Air Pressure
R or REV – Reverse Acting
SIG
– Output Signal from Instrument
SST
– Cast or Wrought 316 Stainless Steel
V –
Vent

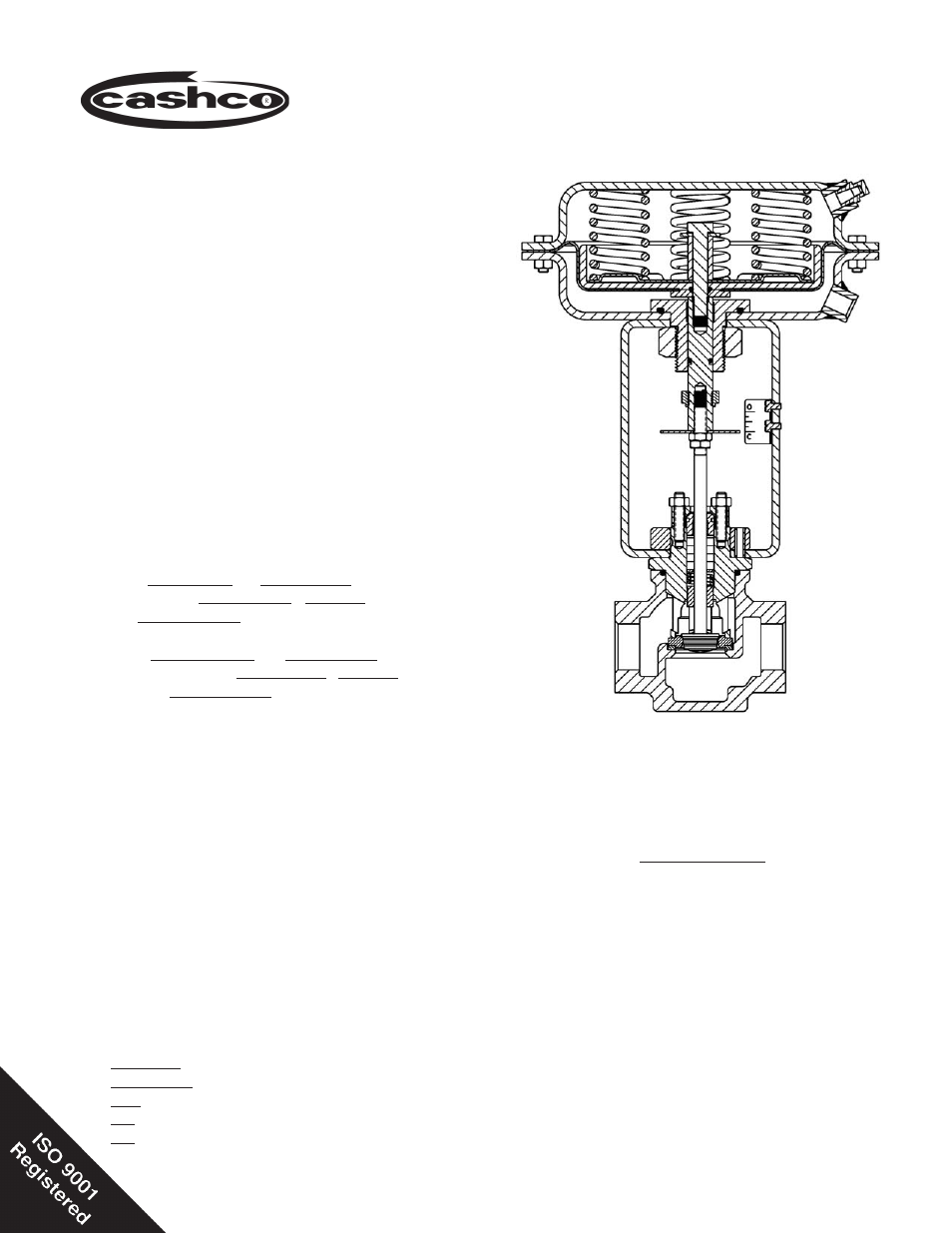

Model 2296
with ATO - FC Actuator
II. REFERENCE
Refer to Technical Bulletin 2296-TB for complete
tech ni cal specifi cations of a Model 2296 coupled with
either Cashco Actuator Model C27 or C53.
www.cashco.com/techbulletins/2296.pdf
Refer to following Installation, Operation & Main te nance
Manuals (IOM’s) for either actuator and/or devices that
maybe mounted to a Model 2296:
Actuators: www.cashco.com/IOM/C27-C53.pdf
Positioners:
P/P: www.cashco.com/techbulletins/9540l.pdf
I/P: www.cashco.com/techbulletins/srd991.pdf
I/P: www.cashco.com/iom/PS2iom.pdf
