39

8.3.4 Step 4

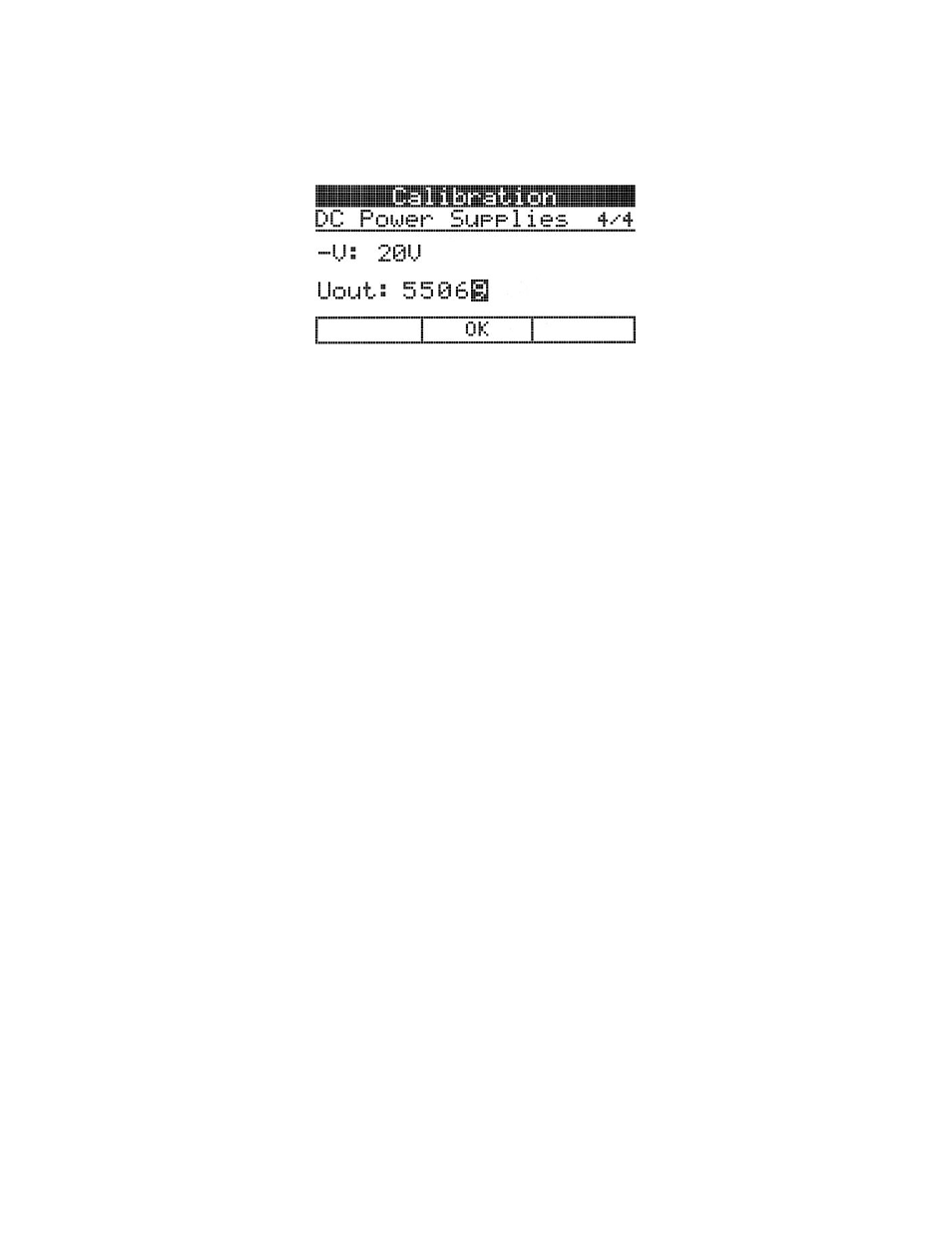

a. PB-507 will display:

Figure 34


b. Adjust the number until the DMM indicates the closest value to -20V.
c. Press the OK soft key to finish this step. The message “DC supplies calibration
done.” is displayed on the screen.

9 INFO, WARNING, AND ERROR MESSAGES

9.1 Info messages

Info messages are used to inform the user about system-related actions. Info
messages are displayed with an “i” in a circle in the top left corner of the window.
The following info messages may appear:

Waiting for host…

Host present

Host connected

Host disconnected

Function calibration done

Pulse calibration done

DC supplies calibration done

Contrast saved

Counter mode set to AUTO

Counter mode set to MAN

Automatic save enabled

Automatic save disabled

Front panel buttons locked

Front panel buttons unlocked

Page scrolling set to MAN

Page scrolling set to AUTO
