Step2: Setting up the Configuration Software Preferences

• If you are going to be communicating with the ST50/ST75 through the IrDA link, you need do nothing. The instructions in

this step are to be use only if you are going to use other than the default setting.

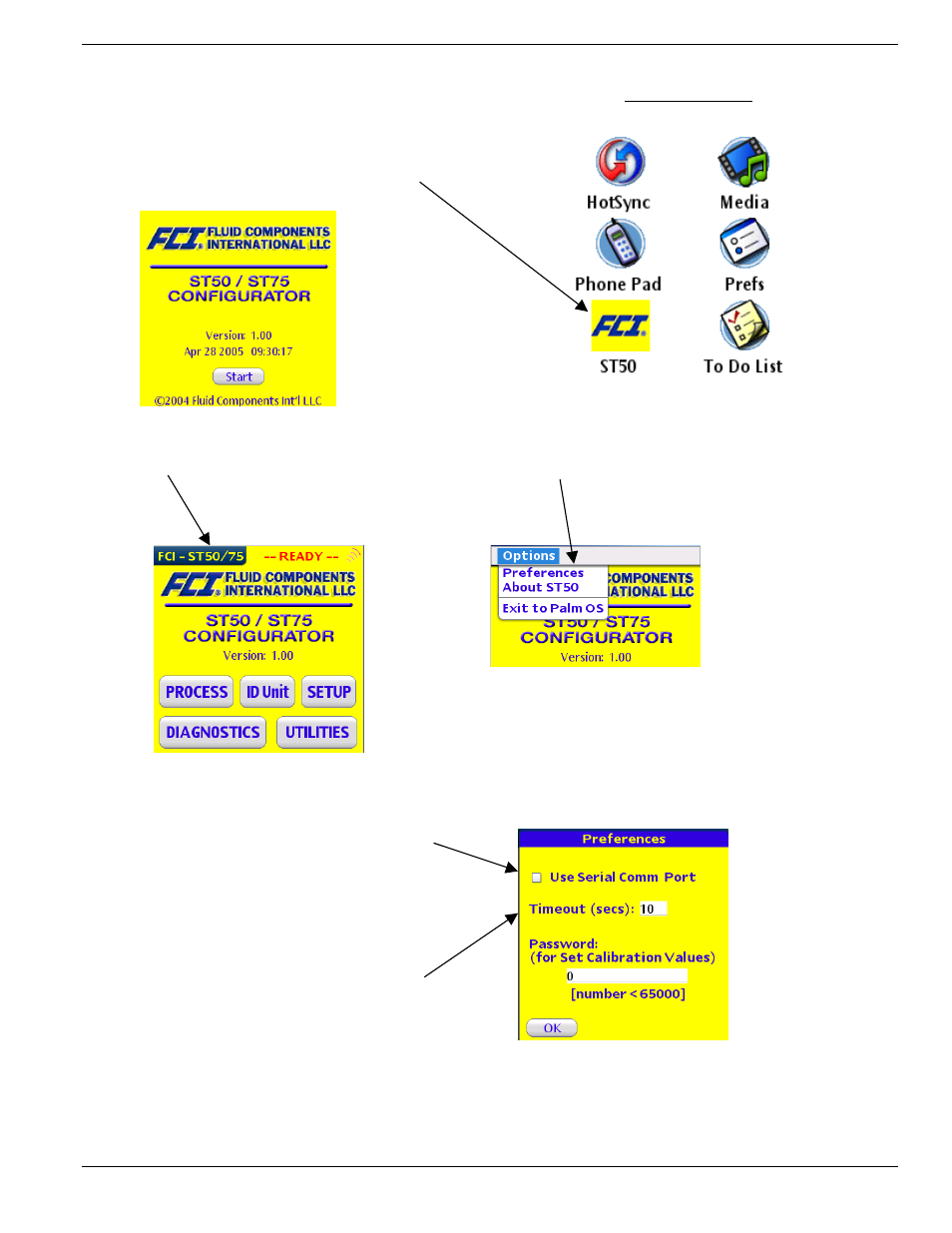

• From the applications menu in the PDA tap the

FCI ST50 Icon and the Configuration Software
opening screen will display.










• Tap Start to open up to the “Top Level Functions” screen of the Configuration Software.
• Tap on the “FCI – ST50/75” to open the options tab tap on “Preferences”.


















The “Preferences” screen sets up 3 items:

1. The ability to select the RS232 Serial port by

taping on the check box for “Use Serial Comm
Port” (You will need a serial cable kit FCI P/N
014108-02 connected to the ST50/ST75). The
ST50/ST75 must be set for serial wire
communication, and a PDA specific serial cable
may be required.

2. “Timeout” sets the time the configurator waits or

response from the ST50/ST75 before indicating a
problem.

3. “Password” is needed for some of the utility

functions. More of this in chapter 5.


NOTE: When using the Configuration Software and the ST50/ST75 in serial cable mode, remember to change the jumper

(JP5) in the ST50/ST75 to RS232 communication position.
