FLUID COMPONENTS INTERNATIONAL LLC

ST50/ST75 PDA SOFTWARE


Chapter 3
Using the Configuration Software to Read the ST50/ST75 Process Information


The Configuration Software Provides access to 3 Process parameters monitored by the ST50/ST75 Flow meter; these parameters
are Process Flow, Process temperature and Process totalization of flow. This chapter will show you how to use the Configuration
Software to read these parameters.

Once the link is established between the ST50/ST75 and the Configuration Software, and the Process information reading has
been selected it will continue to update about once a second, and will stop when the Configuration Software is moved away from
the ST50/ST75 IR illumination area, or the “Return” button is tap.

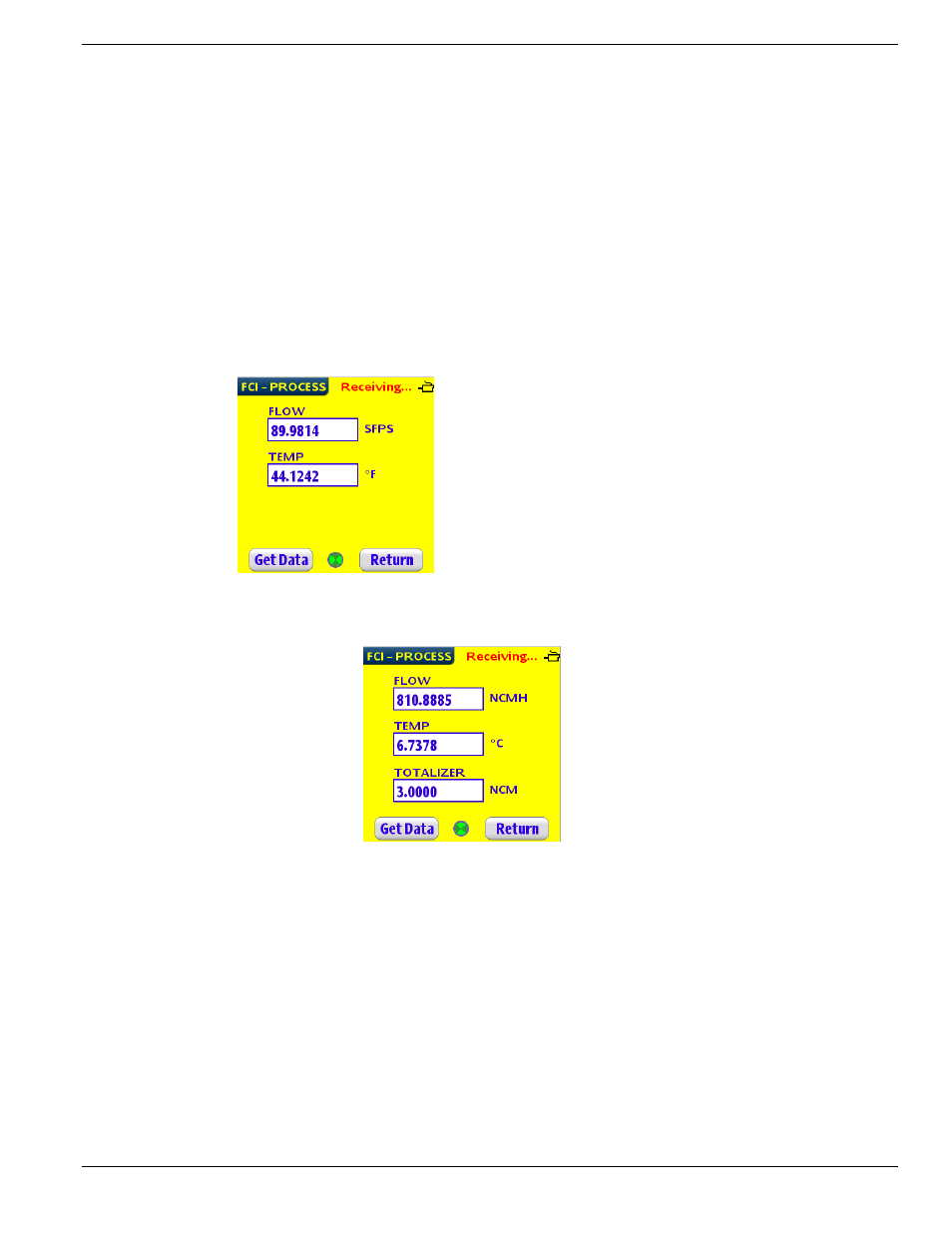

There are 2 possible screens, depending on the parameters selected during setup; the basic screen will always show Process Flow
and Temperature. And the alternative screen will show Process Flow, Temperature and Totalizer values.

Getting Process Data
• Tap on the “Process” button of the main screen, to open the Process information screen.

Basic Screen:













• Tap On the “Get All” button to read the current setup of the ST50/ST75.

Basic Screen with Totalizer active:

This page is subject to proprietary rights statement on last page.

11 06EN003372

Rev.

A
