8032
ENGLISH ENGLISH
Current consumption max� 750 mA + consumption of the measuring device, if output PNP is connected
max� 50 mA + consumption of the measuring device, if output PNP is not connected
Pulse input frequency range: 2 to 400 Hz; Input impedance: 10 k W
to be connected to an NPN transistor output or a push-pull output
U2
U1
T1 t
T
Protection against
polarity reversal
yes
Transistor output NPN and PNP, 700 mA max�
NPN output: 30 VDC max�
PNP output: controller voltage supply
Protection against
short-circuits
yes for the transistor output
Recommended cable type
Power supply
Wall-mounted version: shielded, section between 0,14 and 0,5 mm 2
Panel-mounted version: shielded, 2,5 mm 2 max� section for single wires or
1,5 mm 2 max� section for stranded wires with sleeves
Measuring device max� distance: 10 m, 0,5 mm 2 max� section
electrical connection
Wall-mounted version 5-pin M12 female cable plug and 4-pin M12 male cable plug (not supplied)
Panel-mounted version Terminal strips

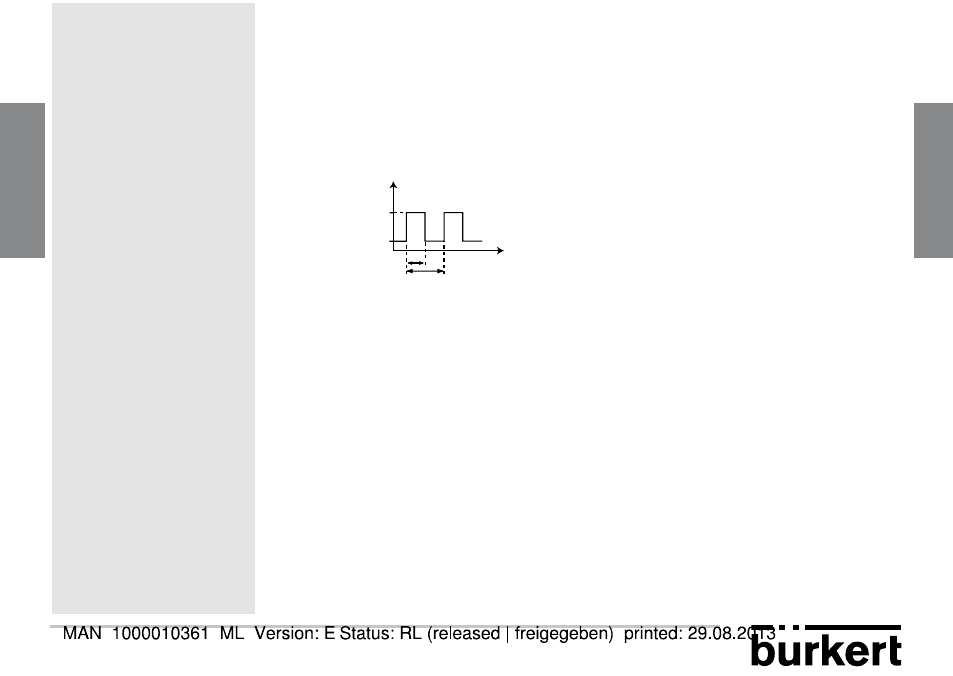

Pulse input
4,5 V < U1 < 5 V
0 V < U2 < 0,5 V
