8032 1
ENGLISH ENGLISH

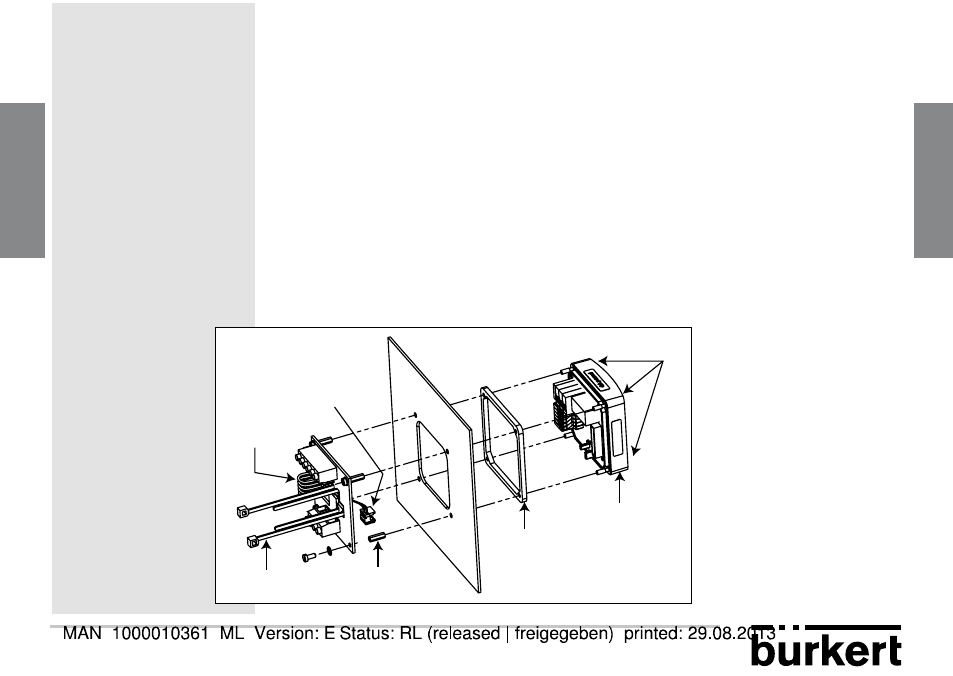

the seal onto the opening� Then, set the connection board onto the opening by inserting the 4
distance sleeves [6] onto the 4 screws of the front face�
6� Screw in an alternating pattern the 4 screws [3] of the front face into the distance sleeves [6]
of the connection board�
7� Connect the 5 wires [1] back successively by pressing the orange locking levers with a
screwdriver�
8� Wire according pin assignment described in paragr� 4�4�3 by respecting the instructions des-
cribed in paragr� 4�4�
9� Use the supplied cable clips [7] to fit the cables to the connection plate�
1
min. 1 mm
max. 3 mm
2
3
4
5
6 7
