8032 1
ENGLISH ENGLISH
4
5
3
1 2
0 VDC
V+
(12-30 VDC)

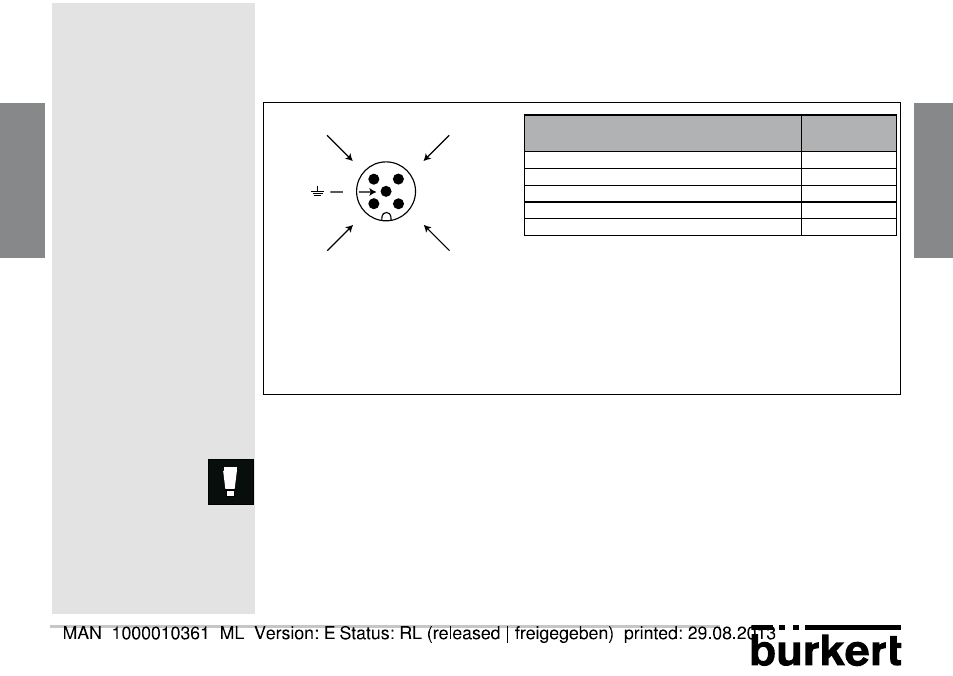

npn/pnp wiring of the plastic
5-pin m12 fixed connector
PNP transistor output
NPN transistor
output
pin number of the 5-pin m12 cable available
as an accessory (order code 438680)
Wire colour
1 brown
2 white
3 blue
4 black
5 grey
The controller is fitted with a steerable 5-pin M12 fixed
connector:
Unfasten counternut� Turn the fixed connector to the
right position, but by max� 360° to avoid twisting of the
cables inside the housing� Fasten counternut using the
appropriate tool while maintening the fixed connector
in the right position�
(*) Functional earth
operating safety
When the cable plugs are not correctly plugged-in and tightened, there is
a risk to electrocute yourself�
Always check all the cable plugs before powering the device to ensure
the good operating of the device�
