ENGLISH ENGLISH
remote flow rate controller 8032
4 installation
4.4 electrical connection
Always ensure the power supply is switched off before working on the
device� All the cable plugs of the wall-mounted version must be pulled
out� Use:
- a shielded cable with an operating temperature > +80 °C�
- a high quality voltage supply (filtered and regulated)�
a 1-a fuse must be used for the power supply.

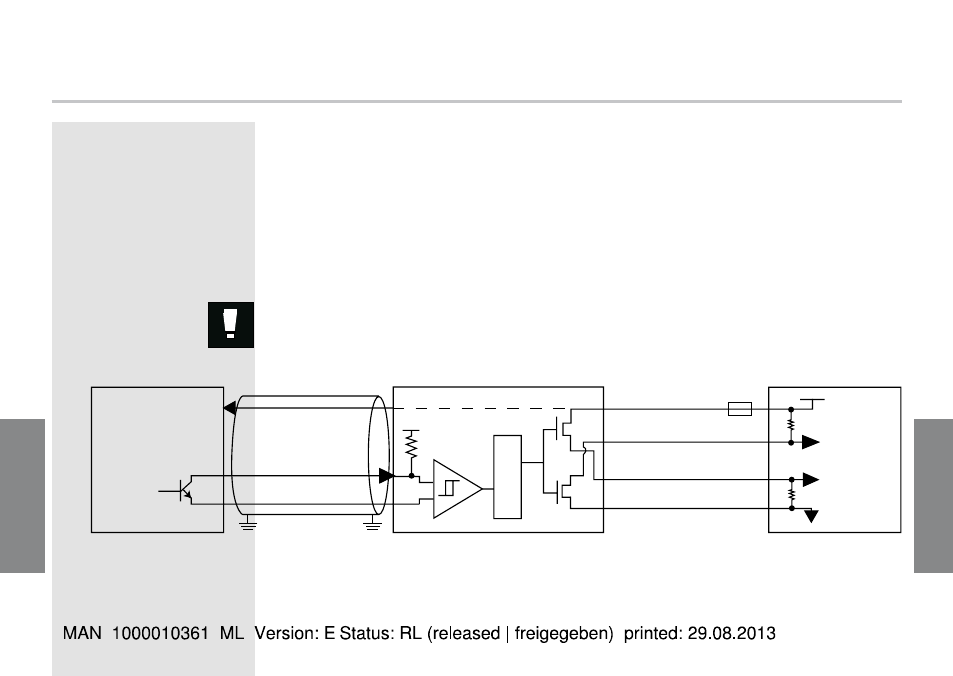

+ 5V
10 k Ω
8032
NPN
PNP
+
-
0 VDC
V+
(*)
1A
Load
NPN output
PNP output
V+ sensor
Pulse input
Analog 0 V
Receiver + power
supply (PLC for ex�)
Remote sensor
Load
(*) By electromagnetic perturbations use a shielded cable to connect the remote sensor to the
controller and connect the cable at both ends to an earth with the same potential.
