30
Operationandfunction
Type 8700, 8701, 8703, 8705
8. operATion AnD funcTion
8.1. safety instructions
Warning
risk of injury due to non-conforming operating.
Non-conforming operating could lead to injuries and damage the
device and its surroundings.
• Operating personnel must familiarize themselves with the
contents of the operating instructions.
• Observe the safety instructions and use the devices as
indicated in this manual.
• Only adequately trained personnel may operate the device.
8.2. operation of the mfm / mfc
The MFM / MFC is operated by means of analogue standard signals
or field bus communication as well as binary inputs. Three LEDs and
a relay output are used for operation and status displays.
There is a serial interface via which a connection to a PC can be
established, using the "Mass Flow Communicator" software.

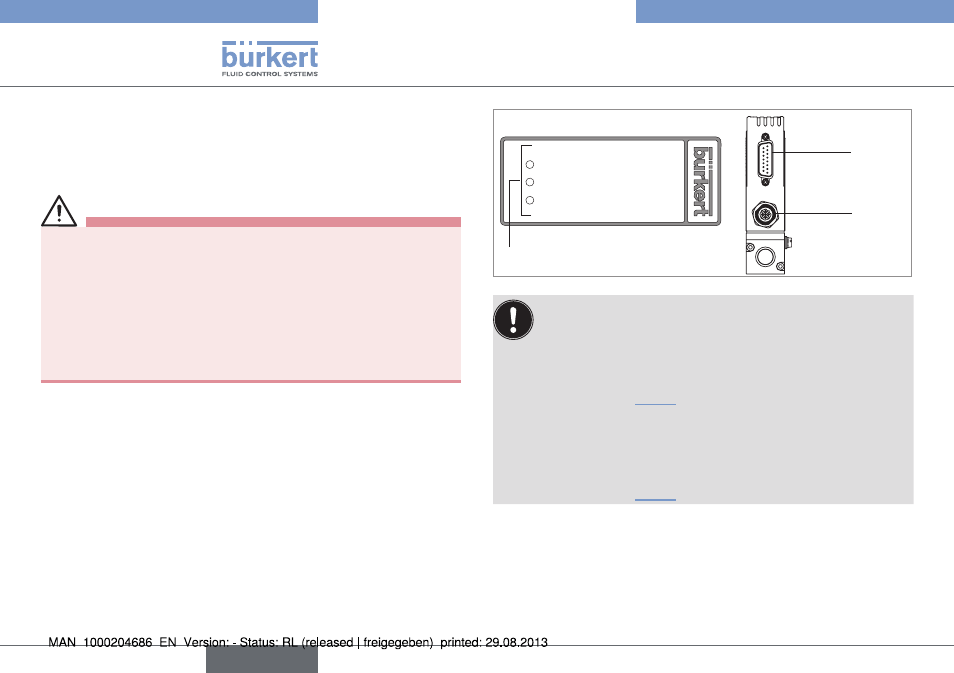

Power / Autotune
Communication
Error
LEDs
Binary
inputs /
Relay
output
Field bus
• selecting the standard signals / Assigning the binary
inputs
The standard signal type as well as the assignment of
the binary inputs can be specified on order placement or
configured via the "Mass Flow Communicator" PC software
(see also chap. 10.1.3).
• Assigning leDs / Assigning the relay output
The assignment of the "Communication" and "Limit(y)" LEDs
as well as the assignment of the relay outputs can also be
configured via the software
(see also chap. 10.1.3).
