Technicaldata

Type 8710, 8711, 8713, 8715

3,5

2xØ6

0

14

17,75

14

17,75

0

10

26

58,5

81

92 97

107

35,5

2xØ 8,8

4xØ 4,5

35,5

43

58,5

1,7

0

5

30

62,5

81,5

2 x M4

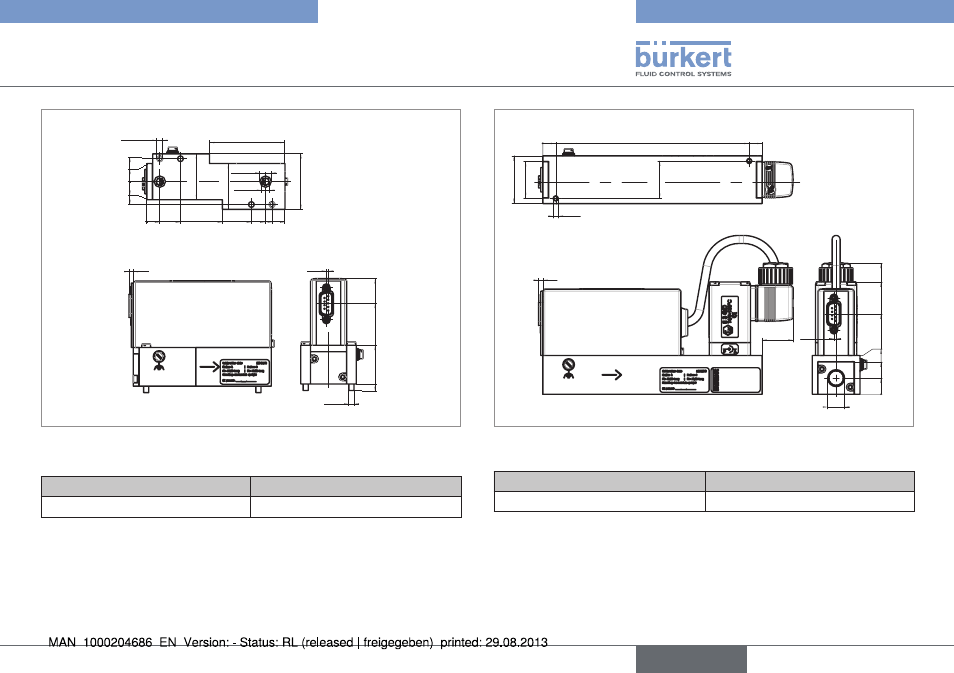

Fig. 12: Dimensions of MFM with flanges, types 8703 and 8705,

and MFC with flanges, types 8713 and 8715

Weight aluminium (kg)

Weight stainless steel (kg)

ca. 0.8

ca. 1.1

3,5

24

0

12,5

25

30

62,5

87

101,5

1,7

A

0

10

160

170

29

37 28

2x M4

Fig. 13: Dimensions of MFC with external solenoid valve, type

8713

Weight aluminium (kg)

Weight stainless steel (kg)

ca. 1.2

ca. 1.5
