Installationandcommissioning
Type 8700, 8701, 8703, 8705
mfm types 8703, 8705
and mfc types 8713, 8715:

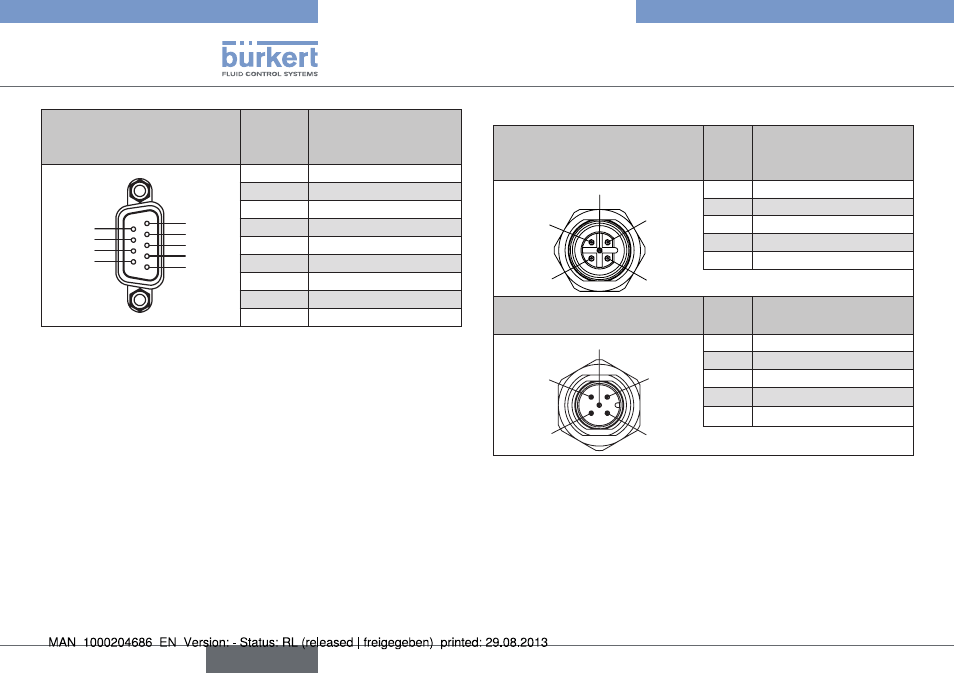

9-pin sub-D plug pin Assignment
6
7
8
9
1
2
3
4
5
1 Binary input
2 GND
3 24 V - Supply +
4 Relay - C Contact
5 Relay - NC Contact
6 1) TX+ (RS485 - Y)
7 1) TX- (RS485 - Z)
8 1) RX- (RS485 - B)
9 1) RX+ (RS485 - A)
1) For operation in Half-Duplex mode, connect pin 6 to 9 and pin 7 to
8.
Pin assignment for field bus version
profibus Dp socket, b
encoded m12 (Dp v1 max. 12
mbaud) pin Assignment
2
1
3
4
5 1 VDD
2 R x D / T x D - N (line A)
3 DGND
4 R x D / T x D - N (line B)
5 Not used
Devicenet or cAnopen
m12 connector pin Assignment
1
2
4
3
5 1 Shield
2 Not used
3 DGND
4 CAN_H
5 CAN_L
