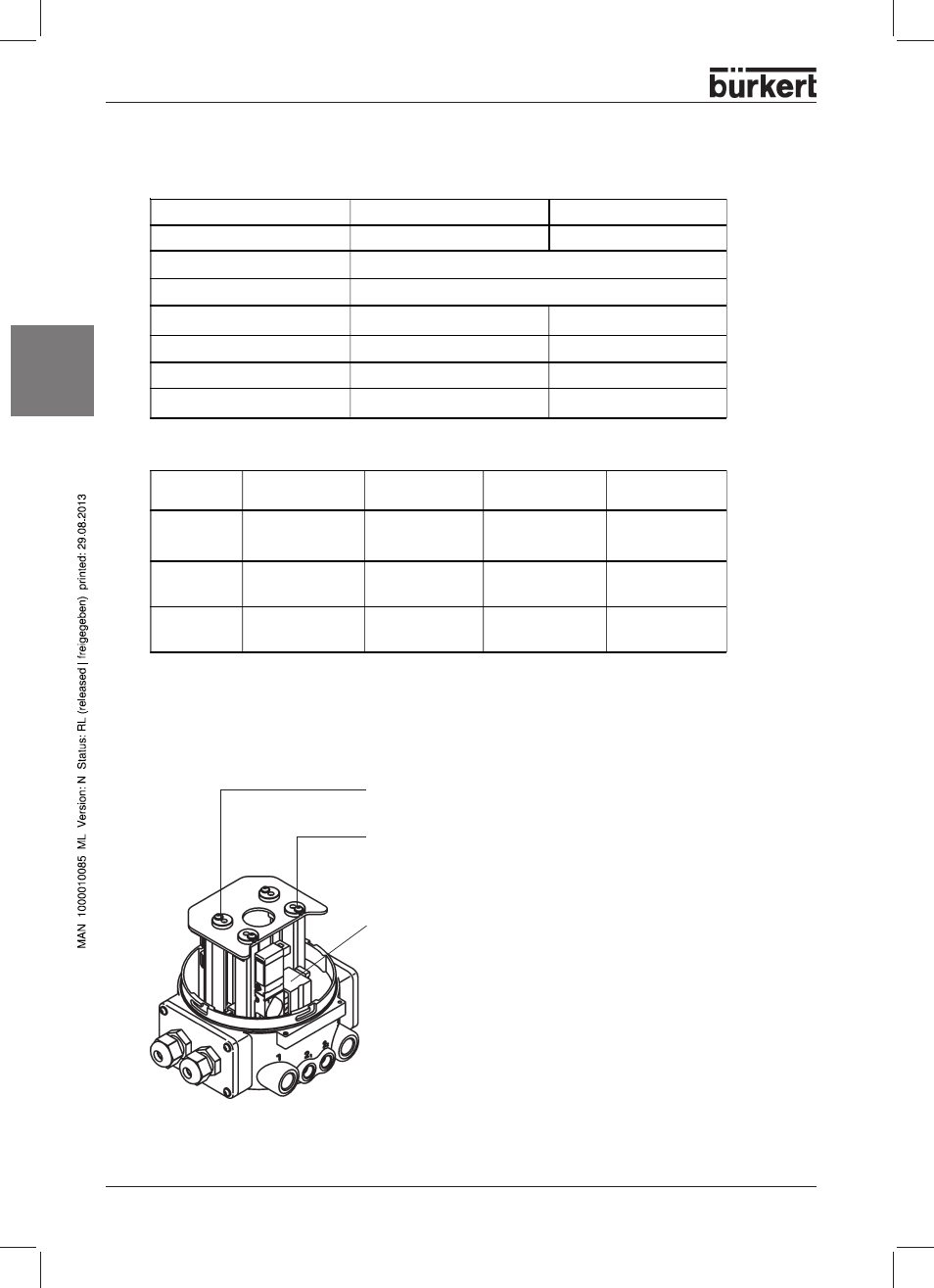

22 - 8631
AS I
NTERFACE
english
Programming data
Initiator 2 / Data bit D2
Initiator 1 / Data bit D3
Pilot valve / Data bit D0
Parameter bits are not occupied
Data bit D3 D2 D1 D0
Signal Input initiator 1 Input initiator 2
Input diagnosis coil
current
Output control valve
Value 0 Position not reached Position not reached ok Control valve off
Value 1 Position reached Position reached
Error
(interruption)
Control valve on
standard Device Device for A/B-Slave addressing
Certification: Approval no. 32901 (to V.2.11) Approval no. 47601 (to V.2.11)
Programming data:
E/A-configuration D hex (1 output, 3 inputs)
ID-Code F hex (for allocation see below) A hex (for allocation see below)
ext. ID-Code 1 F hex 7 hex
ext. ID-Code 2 F hex E hex
Profil S-D.F.F S-D.A.E
