Dimensions
4-way block
TECHNICAL DATA
Ш 34,5
Ш 36,5 Ш 29,8
Ш 27,8 Ш 23,4
Ш 21,8
52,5 49,1 46,1
51,85
44 47
Ш
34,5
Ш
36,5
Ш
27,8
Ш
29,8
Ш
21,8
Ш
23,8
12 19
37,6
35,6 35,6
57 56 40
7
Abschlussplatte
37
25,7
14,5
14,5
14,44
11,44
58,2
105,2
118,2
180,7
30
25,5
35,2
34,5
259,5
63
70,1
4
6,4
( 180,7 )
46
1,5
38,5
10,5
1,5 38,5
276
8,88
TU35
TU35
TU28
TU28
TU22
TU22
Port connections
Hose connection, straight
Designation Designation Designation Designation Designation D i a m e t e r D i a m e t e r D i a m e t e r D i a m e t e r D i a m e t e r Installed height Installed height Installed height Installed height Installed height
( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m )
TU22L 22 47.5
TU28L 28 50.5
TU35L 35 53.85
Designation Designation Designation Designation Designation D i a m e t e r D i a m e t e r D i a m e t e r D i a m e t e r D i a m e t e r Installed height Installed height Installed height Installed height Installed height
( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m ) ( m m )
TU22 22 37
TU28 28 37
TU35 35 39
Hose connection, angled

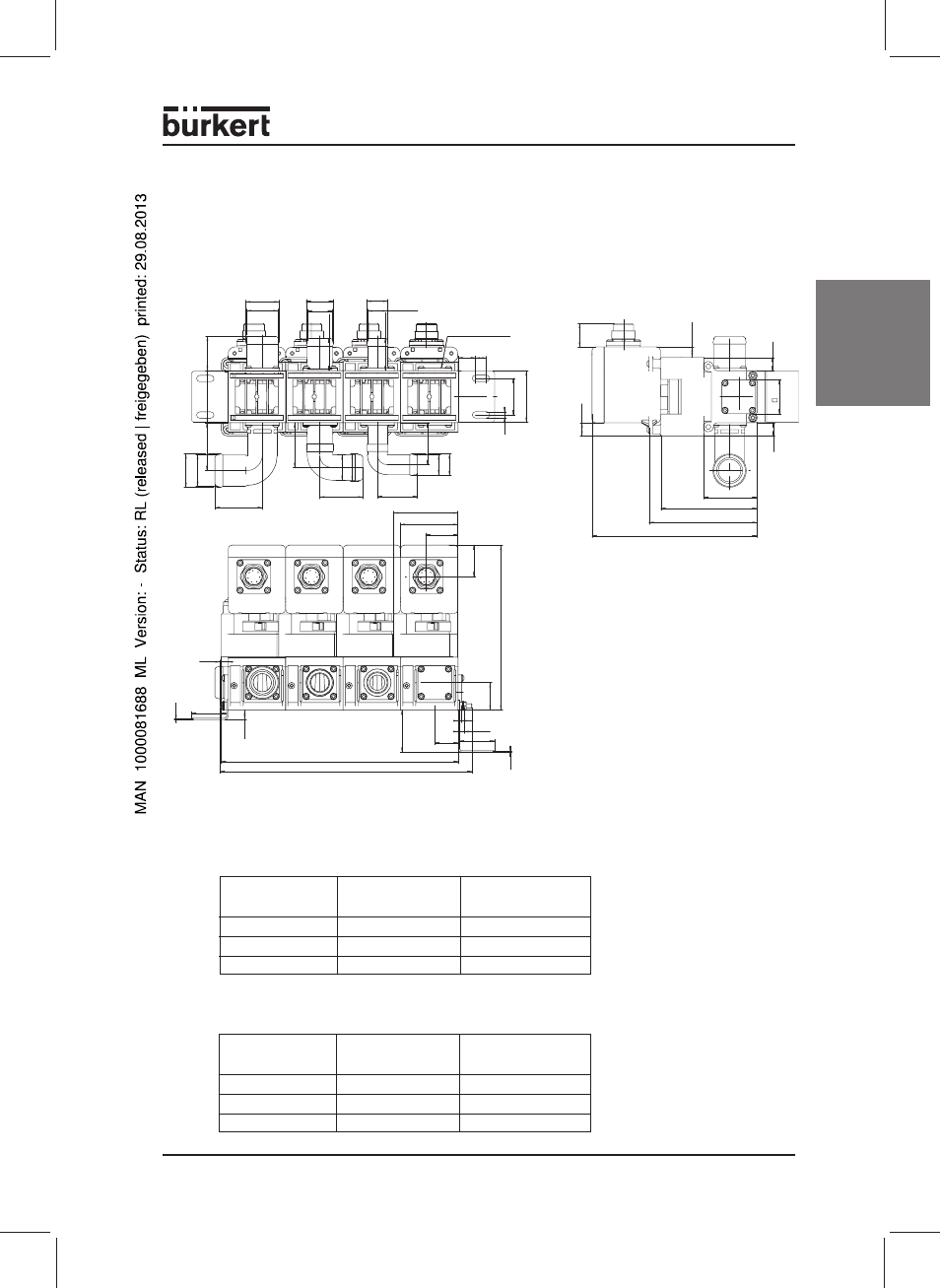

This assembly drawing is
an overview of the different
constructive possibilities of
the motorised control valve.
