10 - 0258
english

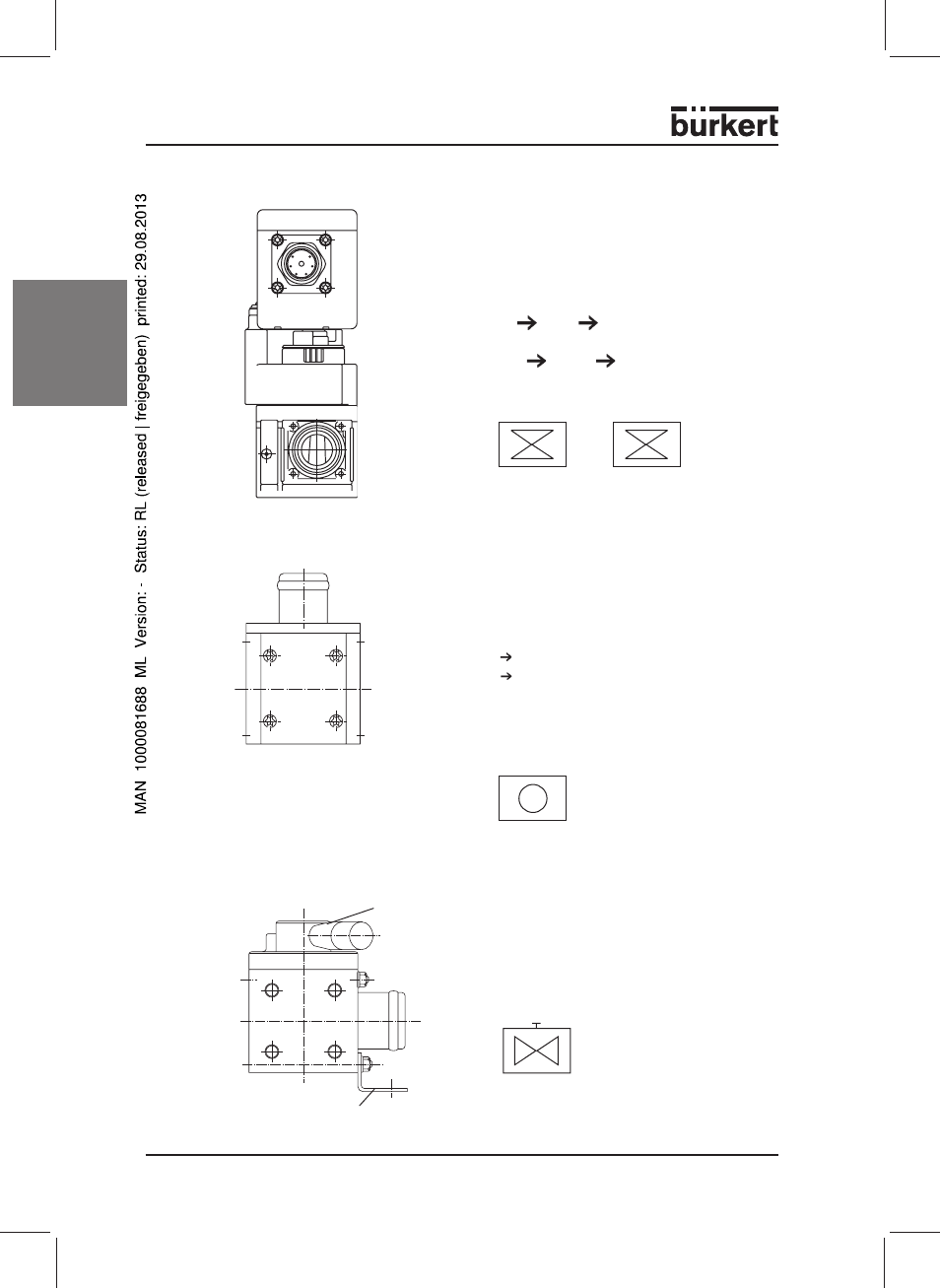

Shut-off valve
Description
The shut-off valve is operated
manually. The direction of flow is freely
selectable.
Block symbol
Hand lever
Mounting angle
4 2
3-way mixing or distribution valve
Description
The 3-way mixing or distribution valve is
continuously operated.
The directions of flow
• in the distribution valve:
P A, P B
• in the mixing or distribution valve:
P1 A, P2 A
Block symbols
Check valve
Description
The check valve has a collection
function. Manual override is possible.
Manual lever at the left stop:
P A
closed
P B open
Note the direction of flow.
Block symbol
R 4 2
1
3
4 2
1
3
E 4 2
1
3
F
Mixing Distribution
