3-3
Model 0254
Section 3 Operation Installation and Operation Manual
X-SE-0254-eng
Part Number: 541B129AAG
September, 2010
• Quickly navigate to setpoint or valve override functions
• Start and stop control functions
• Select a blend control master
• Execute the emergency stop function
Instructions for the using the above are described in their respective
subsections throughout this section.

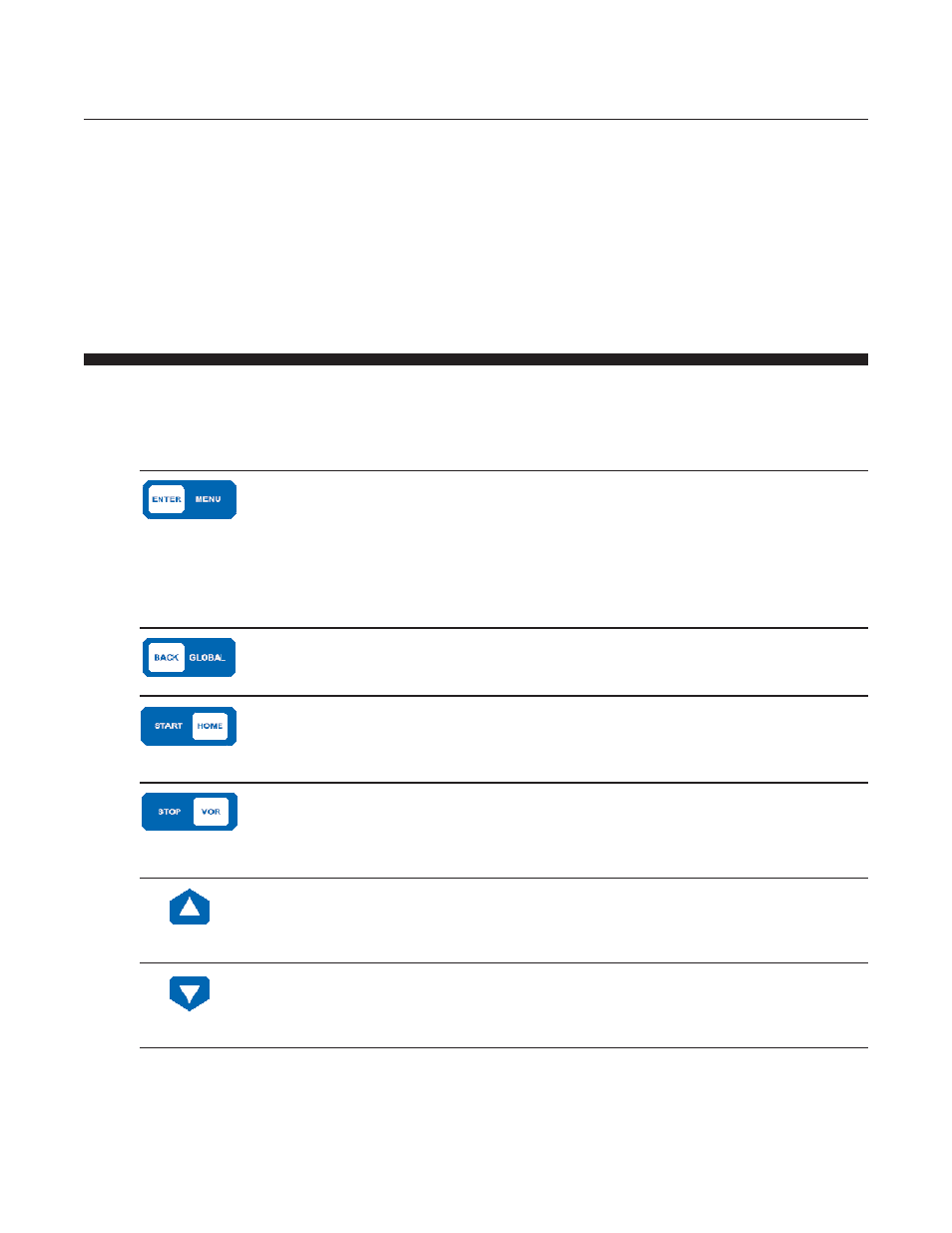

3-2-2 Key Functions
The control function of the keys is dependant on the context of the function
that has been requested to be accomplished as follows:
Key Present Location System Response
Home Screen Navigates to channel configuration screen.
Function Select Screen Selects viewing configuration or programming
configuration.
Display Configuration Screen Selects the home screen value.
Input Configuration Screen Programs the value that the cursor points to and
saves the value.
Home Screen Press three times to enter Global System Settings.
All Other Screens Navigates immediately to previous screen.
Home Screen Press three times to start batch and/or blend controls
operation.
Power Down Condition Press to restore power.
Home Screen Terminates operating controls if any. Otherwise HOT
navigates to change channel VOR state. This key can
be used to power down the system when pressed for
3 seconds.
All Screens Move cursor up to desired item.
All Screens: Selected Item Increase blinking program selection to succeeding
choice.
All Screens Move cursor down to desired item.
All Screens: Selected Item Decrease blinking program selection to preceding
choice.
