2-10-2 Table Top Stand Assembly Instructions
1. Attach the four rubber mounting feet to the base, as shown in
Figure 2-2.
2. Use four of the provided screws to attach the two brackets to the base.
3. Slide the Model 0254 enclosure into the brackets.
4. Use four screws to secure the enclosure to the brackets.
Do not over-tighten these attachment screws.
CAUTION
!
5. Connect the power supply cable with the D-connector to the power
connector on the back of the enclosure.
6. Connect the power supply AC cord to a power outlet.
7. Connect the cables to the RS-232 and Channel connectors, as
approprate for the application.

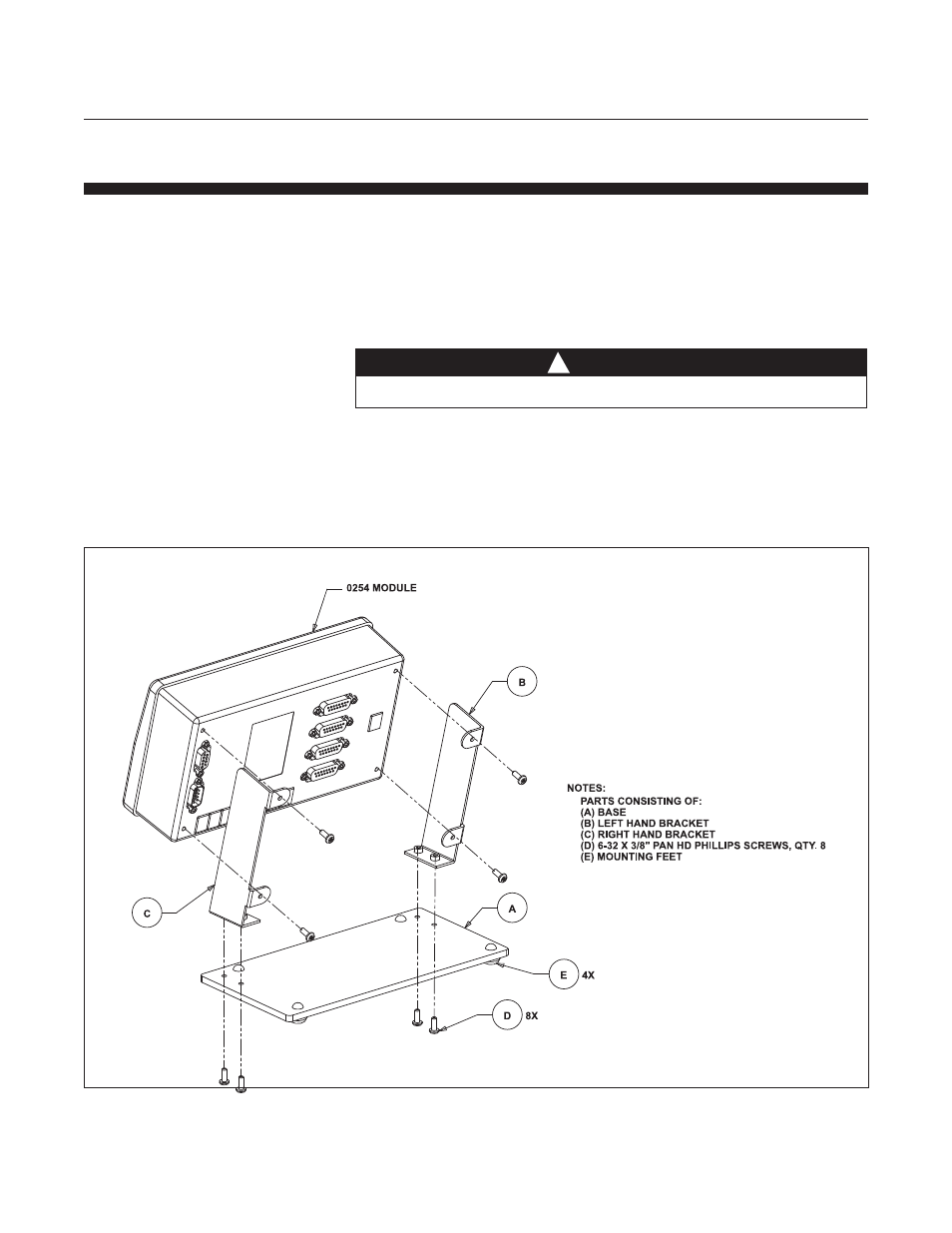

Figure 2-2 Table Top Stand Mount Installation
