Brooks Instrument 0254 - Manual (Page 28)

3-2
Model 0254
Section 3 Operation Installation and Operation Manual
X-SE-0254-eng
Part Number: 541B129AAG
September, 2010

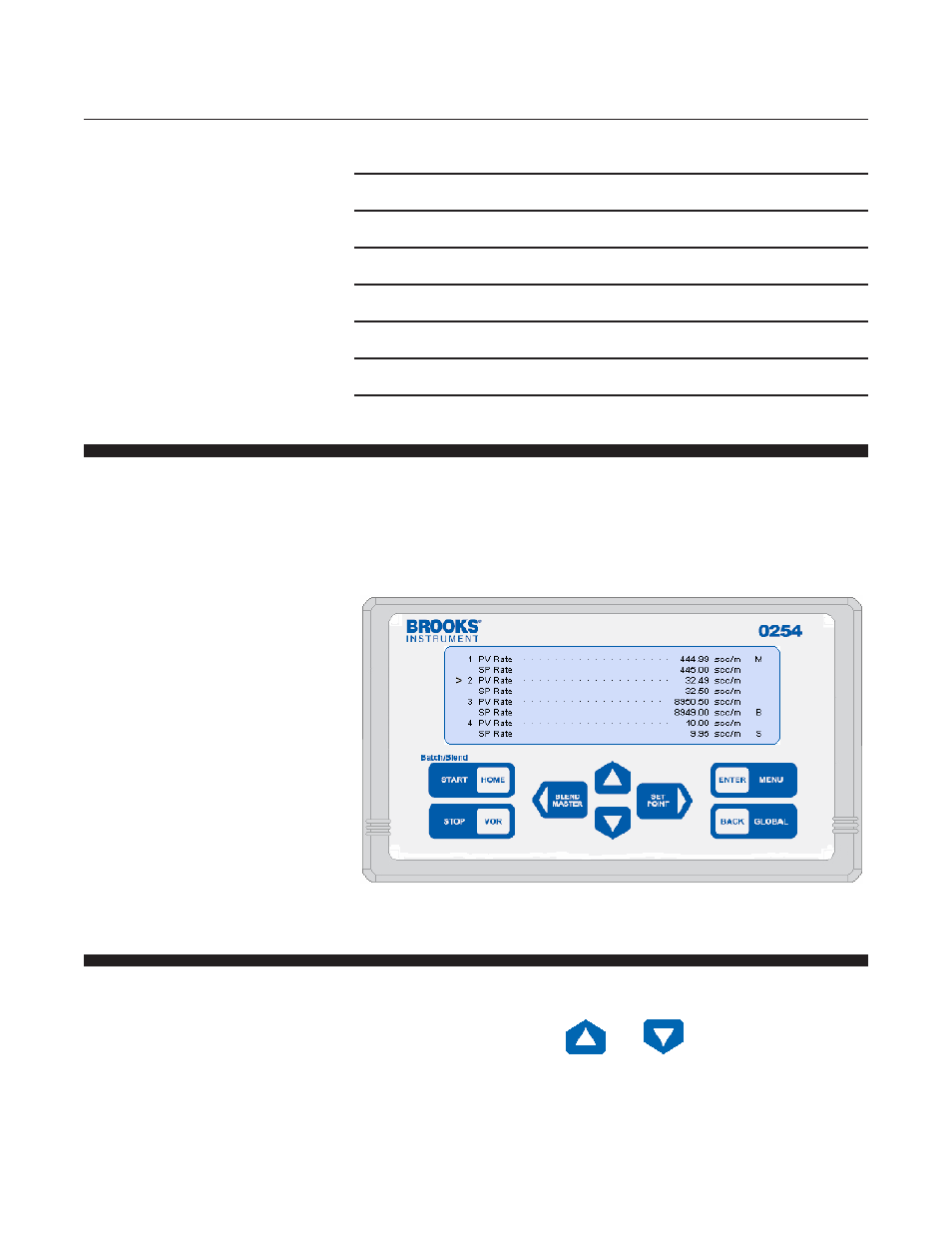

Table 3-1 Display Home Screen Fields
Cursor Points to channel even when channel is Off.
Channel Numbers 1-4.
Description Process value text.
Value Numeric process value.
Unit / Time-base Combined measure units and rate time-base.
Control Process control state indicators.
3-2 Operating Controls
The primary instrument control is supported by eight front panel tactile
snap-action keys, and alternatively by serial communications. Every
function that can be accomplished by using the keys can also be
simultaneously be accomplished by serial communication commands. The
serial communication functions are described more fully in Section D.
3-2-1 Primary Functions
Primary functions performed from the Home screen are as follows:
• Select a channel using the and keys
• Enter the configuration selection menu
• Enter the Global System Settings selection menus
