FlexLink X45 Руководство пользователя User Manual

Page 32

Mounting, installation, adjustment

5113196-2

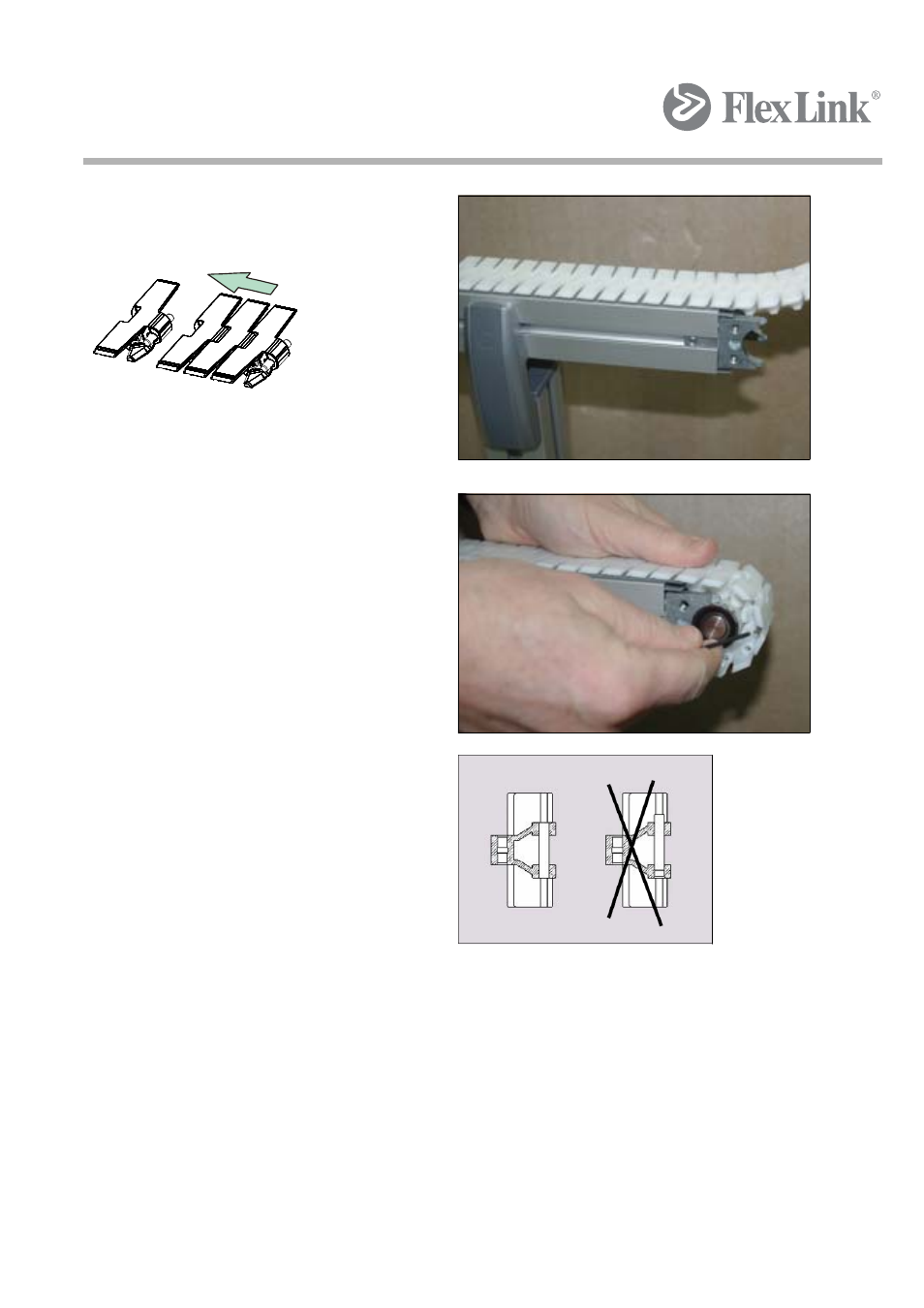

3 Feed the chain into the conveyor until it reach the

drive wheel at the driving end.

CAUTION! Check the feed direction of the chain

4 Continue to feed the chain around the drive

wheel into the return part of the beam.

5 To avoid noise the number of links in the chain

shall be adjusted so that a slight pretension is
obtained.

CAUTION! Make sure that the chain enters the
drive wheel correctly.

6 Use a pair of slip joint pliers to insert the pin half-

way into the chain link.

7 Join the chain ends.

8 Press the pin through the chain.

9 Make sure that the pin snaps in to the correct

position (centered).
