Functions
Create
d
by EBCCW
0
0
:06
13 5113196-2

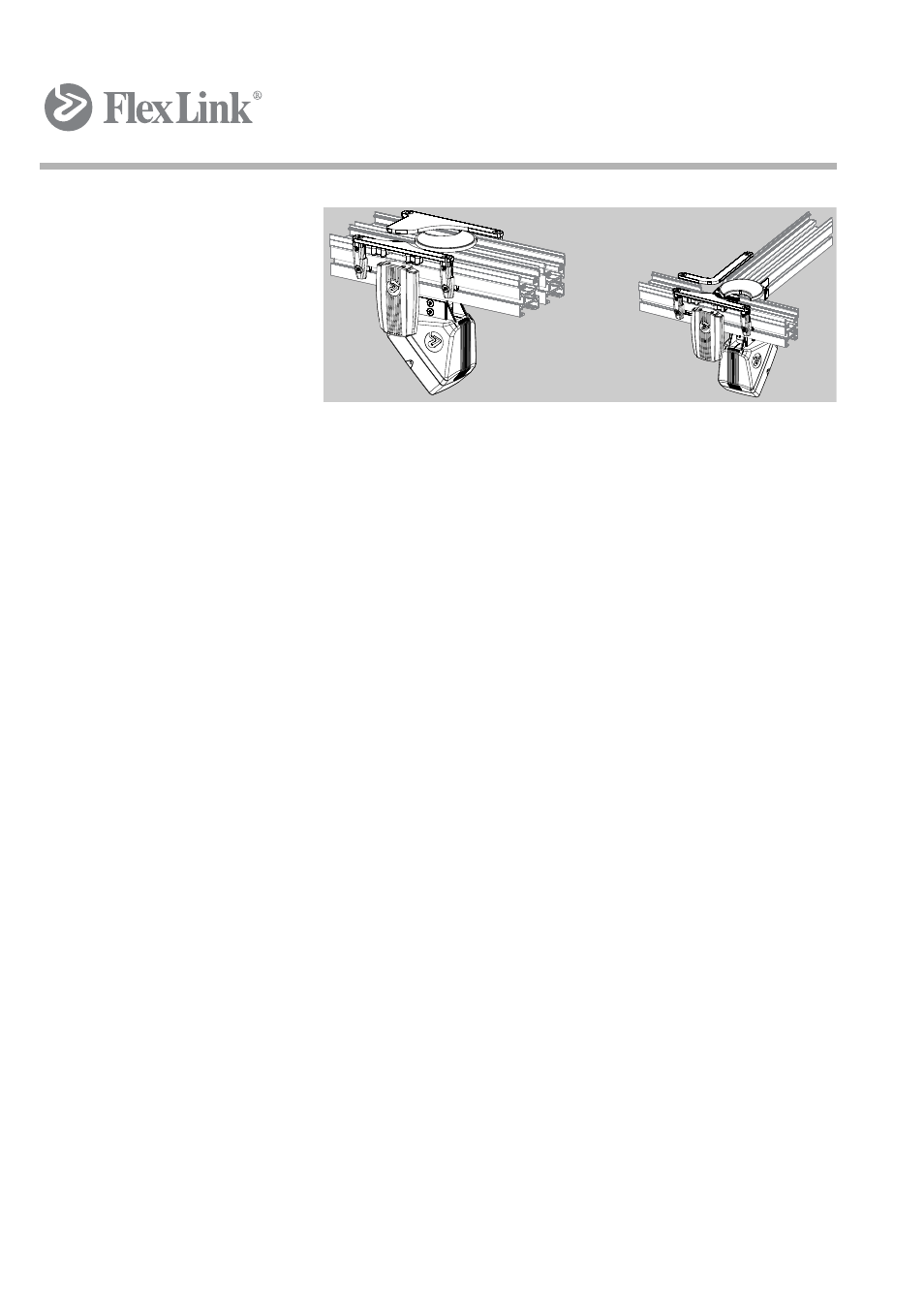

Figure 2 Diverter, parallel and 90 °
The unit has two positions for photoelectric sensors. The first one is used
for sensing the queue status of the infeed conveyor. This sensor can be re-
placed by a RFID read/write head.
When a puck arrives the rotation disc opens up to receive the puck. The
second sensor is used for detecting that the puck has reached the gap of
the rotation disc. This is the trigger signal for the main rotation of the rota-
tion disc, with a puck in the gap.
The decision of which outfeed conveyor to release the puck on can be re-
ceived from the external bus, via a local sensor or from a predetermined
pattern.
