Draw-Tite 118615 T-ONE CONNECTOR User Manual
English, T-connector t-one, Connecteur en t t-one

WARNING
Read and follow all warnings and cautions
printed on the tow vehicle’s battery.
9. Reconnect the vehicle’s Negative (-) battery
cable and install the 10 amp fuse into the
fuse holder from step 8 i.
WARNING
All connections must be complete for the
T-One
®
T-Connector to function properly.
Test and verify installation with a test light
or trailer once installed. For initial test,
reset vehicle electrical system by temporarily
removing the key from the ignition.
10. On driver’s side, locate a flat surface in an out
of the way place and mount the T-Connector’s
black convertor box with the double sided tape.
Secure the remainder of the T-One
®
T-Connector harness with the cable ties
provided, to prevent damage or rattling
and being careful to avoid any areas that
would pinch, cut or melt the wire.
11. Reinstall the plastic trim panels, threshold,
storage covers, floor covering and other
items removed during installation, being
careful not to pinch or cut the wires.
NOTE
Store 4-Flat in rear cargo area when not in use.
WARNING
Overloading circuit can cause fires. DO NOT
exceed lower of towing manufacturer rating or:
• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: (5.6 amps)
Read vehicle’s owners manual & instruction
sheet for additional information.
ENGLISH
TOOLS REQUIRED:
Trim Panel Remover, Drill (3/32” Drill Bit),
Philips Head Screwdriver, Test-probe

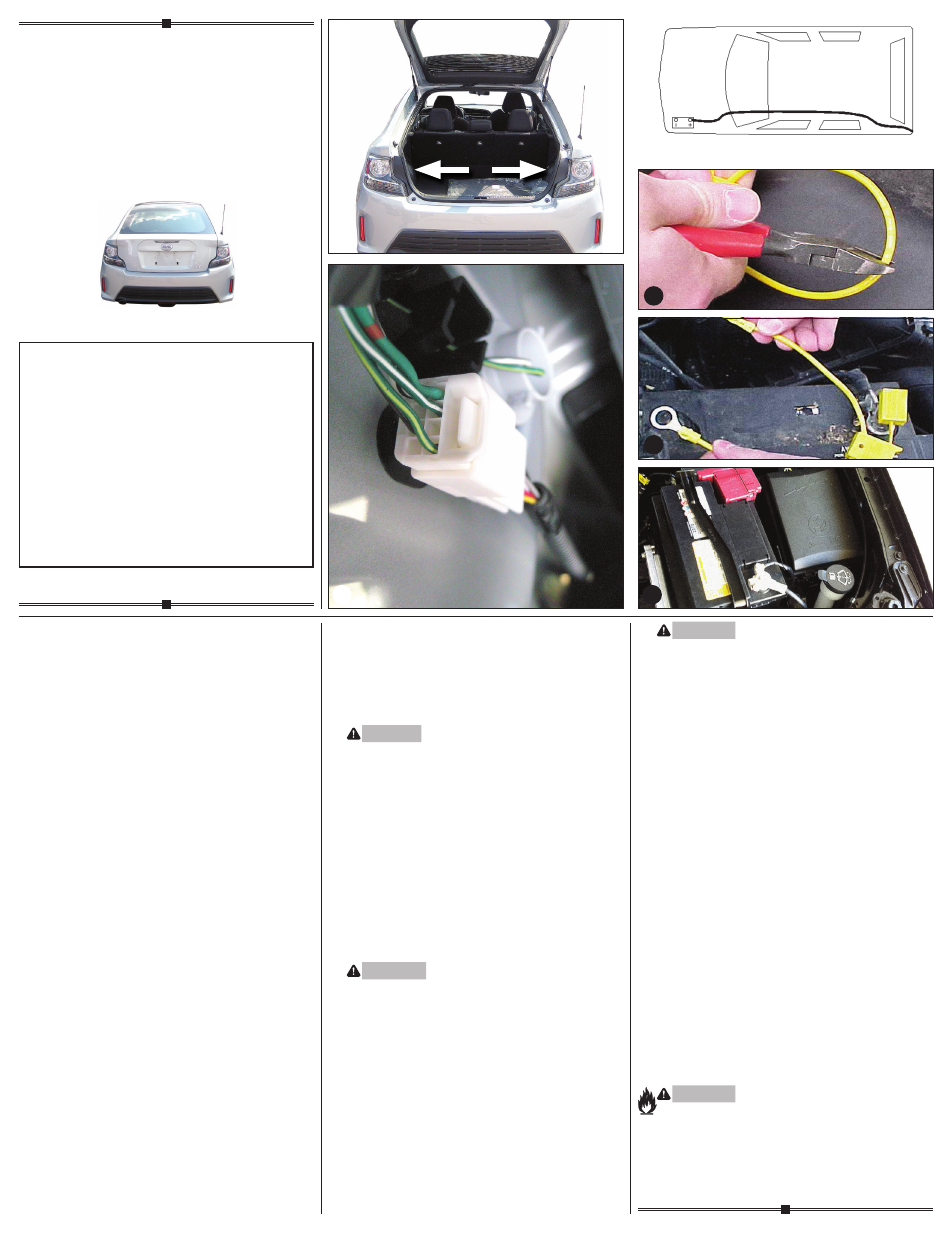

1. Open rear hatch. Temporarily remove the
rear threshold plate, storage covers and
floor covering d.
2. Partially remove the rear interior trim
panels on both the driver and passenger
side of the vehicle. Several trim panel fasteners
will need to be removed to remove the panels.
Set aside all items removed being careful
not to damage parts.
3. On the driver and passenger sides of the
vehicle, locate the vehicle’s taillight wiring
harness. The taillight wiring harness will have
a connection point, on both sides, matching
the ends of the T-One
®
T-Connector. Separate
this connector, being careful not to break the
locking tabs. All connector surfaces should
be clean and free of dirt e.
4. On the driver’s side, insert the T-One
®
T-Connector end, with the
yellow wire,
between the vehicle wiring connectors and
lock into place. Be careful not to damage the
locking tabs and be sure that connectors are
fully inserted with locking tabs in place.
5. Route the T-One
®
T-Connector end with
green
wire to the passenger ‘s side behind the panels
and along the threshold. Repeat step 4 for
T-One
®
T-Connector end with the
green wire.
6. Locate a suitable grounding point near the
connector such as the vehicle’s frame or
cross member. (Do not drill into vehicle floor
or bed.) Clean dirt and rustproofing from area.
Drill a 3/32” hole and secure
white wire using
eyelet and screw provided.
CAUTION
Verify what is behind any surface prior to
drilling to avoid damage to the vehicle and/or
personal injury. Do not drill into any exposed
surfaces.
7. From inside the vehicle, connect the
black 12 ga. wire and the red wire from
the T-Connector black box with the supplied
yellow butt connector. Either route the
black
wire thru a grommet and along the exterior
frame or follow the existing wiring along the
thresholds into the engine compartment up
to the battery avoiding areas that may pinch
or break the wire f.
WARNING
If routing the wire thru a grommet and along
the exterior of the vehicle, be careful to avoid
any hot pipes, heat shields, the fuel tank or any
other points that may pinch or break the wire.
8. Disconnect the vehicle’s Negative (-)
battery cable. If not removed, remove the
fuse from the yellow fuse holder (provided).
After cutting the fuse holder wire g, attach
the ring terminal and secure to the vehicle’s
Positive (+) battery cable. Connect the other
end of the fuse holder to the
black 12 ga. wire,
using the yellow butt connector (provided) h.
d
e
f
g
h
i
Installation Instructions
Directives de Montage
Instrucciones de Instalación
T-One
®
T-Connector
T-One
®
Connecteur en T
T-One
®
Conector en T
Scion tC
118615-037
Rev. A
4/9/2014
READ THIS FIRST:
Read and follow all vehicle warnings and installation
instructions before beginning installation. Wear safety
glasses and use all safety precautions during installation.
LISEZ CECI EN PREMIER:
Lire et observer toutes les consignes de sécurité et les
instructions avant de commencer l’installation. Durant
l’installation, veiller à toujours porter des lunettes de
protection et respecter les mesures de sécurité.
LEA ESTO PRIMERO:
Lea y siga todas las advertencias e instrucciones de
instalación del vehículo antes de empezar la instalación.
Use gafas de seguridad y todas las precauciones de
seguridad durante la instalación.
PAGE 1 OF 3
