5. Locate a suitable grounding point near

the connector. Clean dirt and rustproofing
from the area. Drill a 3/32" hole and secure
the white wire using the eyelet and screw
provided

e.

CAUTION

Verify what is behind any surface prior to
drilling to avoid damage to the vehicle and/
or personal injury. Do not drill into any
exposed surfaces.

WARNING

All connections must be complete for the
T-Connector to function properly. Test and
verify installation with a test light or trailer
once installed. For initial test, reset vehicle
electrical system by temporarily removing
the key from the ignition.

6. In the Driver’s side storage area, clean a flat

area using a mixture of rubbing alcohol and
water. Mount the T-Connector black box using
double-sided tape provided

e.

7. Route the 4-Flat from below the threshold

plate into trunk. Store there when not in use.

8. Reinstall felt trunk liner, threshold, and

other items removed during installation,
being careful not to pinch or cut the wires.

WARNING

Overloading circuit can cause fires.
DO NOT exceed lower of towing
manufacturer rating or:
• Max. stop/turn light: 1 per side (2.1 amps)
• Max. tail lights: (5 amps)
Read vehicle's owners manual &
instruction sheet for additional information.

ENGLISH

TOOLS REQUIRED:

Trim Panel Remover, Drill (3/32” Drill Bit),
Philips Head Screwdriver, Test-probe

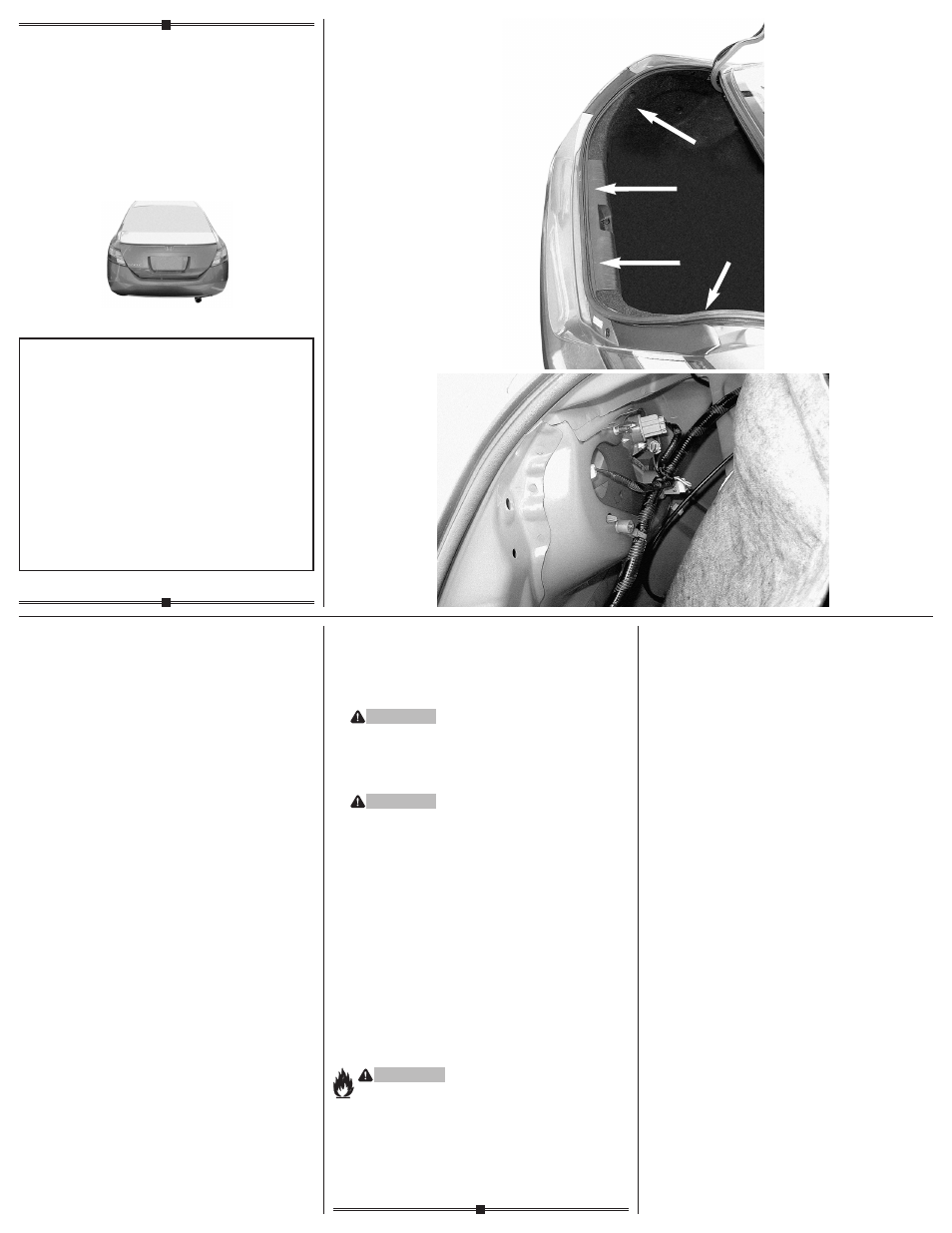

1. Open trunk. Temporarily remove the rear

threshold plate. Partially remove the felt
trunk liner behind the taillights

d.

2. On the driver and passenger sides of the

vehicle, locate the vehicle's taillight wiring
harness. The taillight wiring harness will have
a connection point, on both sides, matching
the ends of the T-Connector. Separate this
connector, being careful not to break the
locking tabs. All connector surfaces should
be clean and free of dirt

e.

3. On the driver's side, attach both ends of the

T-Connector containing the yellow, brown
and red wires. Be careful not to damage the
locking tabs and be sure that connectors are
fully inserted with locking tabs in place.

4. Route the T-Connector end with green

wire to the passenger 's side behind the
panels and along the threshold. Repeat step
3 using the T-Connector ends containing the
green wire.

d

e

118437-037

Rev. B

01/24/08

READ THIS FIRST:
Read and follow all vehicle warnings and
installation instructions before beginning
installation. Wear safety glasses and use
all safety precautions during installation.

LISEZ CECI EN PREMIER:
Lire et observer toutes les consignes de sécurité
et les instructions avant de commencer l’installa-
tion. Durant l’installation, veiller à toujours porter
des lunettes de protection et respecter les
mesures de sécurité.

LEA ESTO PRIMERO:
Lea y siga todas las advertencias e instrucciones
de instalación del vehículo antes de empezar la
instalación. Use gafas de seguridad y todas las
precauciones de seguridad durante la instalación.

Installation Instructions

Directives de Montage

Instrucciones de Instalación

T-Connector

Connecteur en T

Conector en T

Honda Civic
