Draw-Tite 59904 BIKE MOUNTING ADAPTER KIT - Manual (Page 2)

Product Code:
Product Name:
59904
Adapter Bike for Basket
Please read all instructions carefully before assembly, installation and/or use of this product.

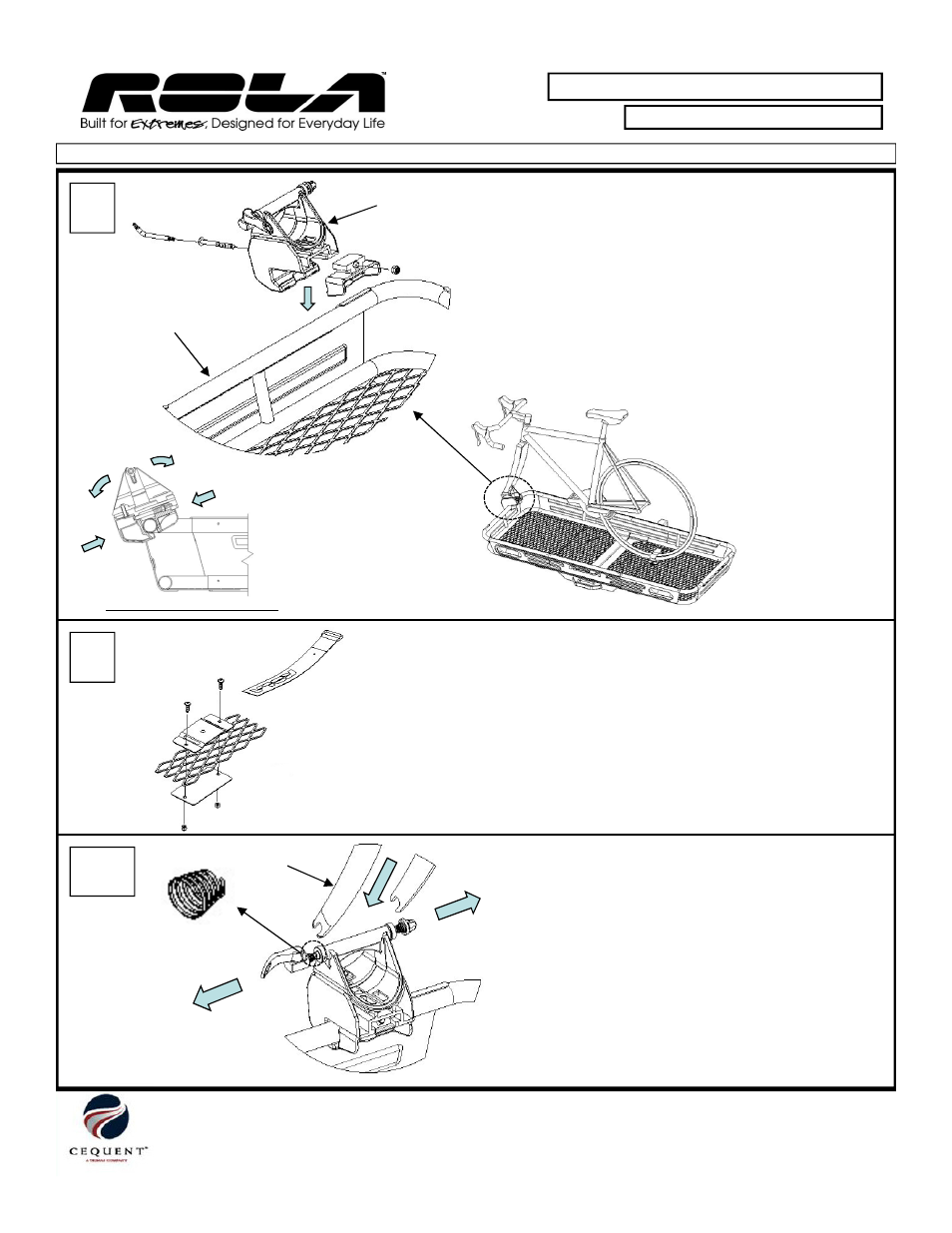

Assembly Instructions:
1. To attach Adapter Assembly to cargo basket,
use the L-Wrench supplied to loosen the bolt
and open the clamp jaw.
Place Adapter
Assembly onto basket side rail tube and
tighten using L-Wrench supplied.
2. Note, the position and angle of Adapter
Assembly will vary depending on the number
of bicycles you are transporting. Cargo Basket Rail
1 Adapter
Assembly
Clamp Adapter to basket rail
Cequent Performance Products
Plymouth, MI 48170
Technical Service: (888) 521-0510
59904N Rev A 10-12-11
Printed in XXXXX Page 2 of 4
2
3. To attach Rear Tire Bracket & Strap
Assembly to cargo basket, measure the
distance between front wheel axle to rear
wheel axle.
4. Place the strap brackets & nylon strap
around expanded metal floor and install the
M6 x 20mm long security bolts as shown.
Note: Align hole in strap with post in top
strap bracket.
3a
Conical Spring
Orientation
Bicycle Loading:
5. To attach bike to Adapter Assembly,
unscrew Skewer Clamp to maximum width.
6. Remove front wheel from bike and place
bike fork drop-outs down onto fork mount as
shown.
7. With Skewer Clamp Lever open, tighten until
Clamp Lever closes with firm resistance and
fully closes as shown in step 3a & 3b.
Bike Forks
