Installation Instructions

GOOSENECK MOUNTING KIT

Chevrolet/GMC 2500/3500 Heavy Duty

Short & Long Bed

Part Numbers:

4434

Equipment Required:

Fastener Kit: 4434F
Wrenches: 3/4, 15/16, 10mm, 18mm

Drill Bits: 1/4”

Other Tools: Drill, Reciprocating saw

WARNING:

Under no circumstances do we recommend

exceeding the towing vehicle manufacturers recommended vehicle
towing capacity.

All Fasteners Typical, Both Sides

9461/9471 HIDE-A-GOOSE HITCH

INSTALLATION

V hi l F

d

Fasteners from

Hide-A-Goose

Hitch

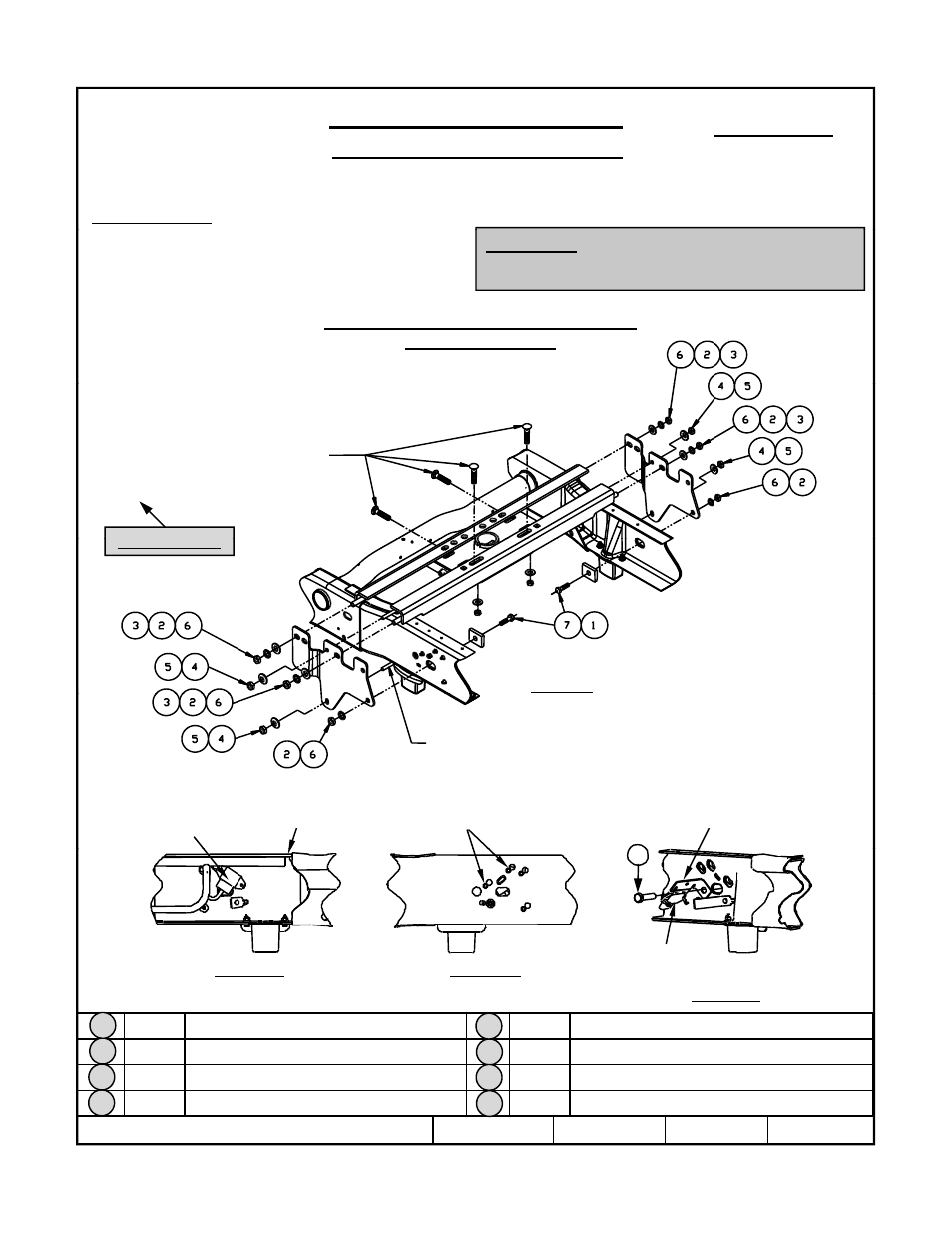

Figure 1

Vehicle Forward

Driver side

frame rail

Plug

Loosen two
flange bolts

Angle bracket

(included)

U-Bolt (both sides)

Figure 2a

Inside driver side frame rail

Figure 2b

Outside driver side frame rail

Figure 2c

Plug
(wire not shown for clarity)

7

z

2007, 2008, 2009 Cequent Performance Products

Sheet 1 of 8

4434N

4-3-09

Rev. G

Qty. (2)

Spacer, 3/8 x 1-1/2” x 2”

Qty. (4)

Conical Washer, 1/2”

Qty. (6)

Lock Washer, 5/8”

Qty. (6)

Hex Nut, 5/8”-11

Qty. (4)

Flat Washer, 5/8”

Qty. (2)

Hex Bolt, 5/8”-11 x 2-1/2” GR5

Qty. (4)

Hex Nut, 1/2”-13

Qty. (4)

Shims, 5/16” x 2” x 1” (not shown in Figure 1)

6

7

8

5

4

3

2

1

Printed in China
