Installation instructions, Part numbers – Draw-Tite 4456 GOOSENECK RAIL KIT User Manual
Page 5
Installation Instructions
GOOSENECK MOUNTING KIT
Chevrolet/GMC 2500/3500 Heavy Duty
Short & Long Bed
Part Numbers:
4456
Equipment Required:
Fastener Kit: 4456F
Wrenches:
15/16”
Drill Bits: 1/4”
Other Tools: Drill, Reciprocating saw
WARNING:
Under no circumstances do we recommend
exceeding the towing vehicle manufacturers recommended vehicle
towing capacity.
Vehicle Forward
All Fasteners Typical, Both Sides
6300 / 630044 / 8339 GOOSENECK HITCH
INSTALLATION
Fasteners from
Hitch Fastener Kit
As an option you can loosen or remove truck
bed bolts to raise bed above top of truck
frame. This will allow more room to slide rail
kits in place. See following pages for detail.
Optional, Raise Bed: 18mm socket, 15” extension

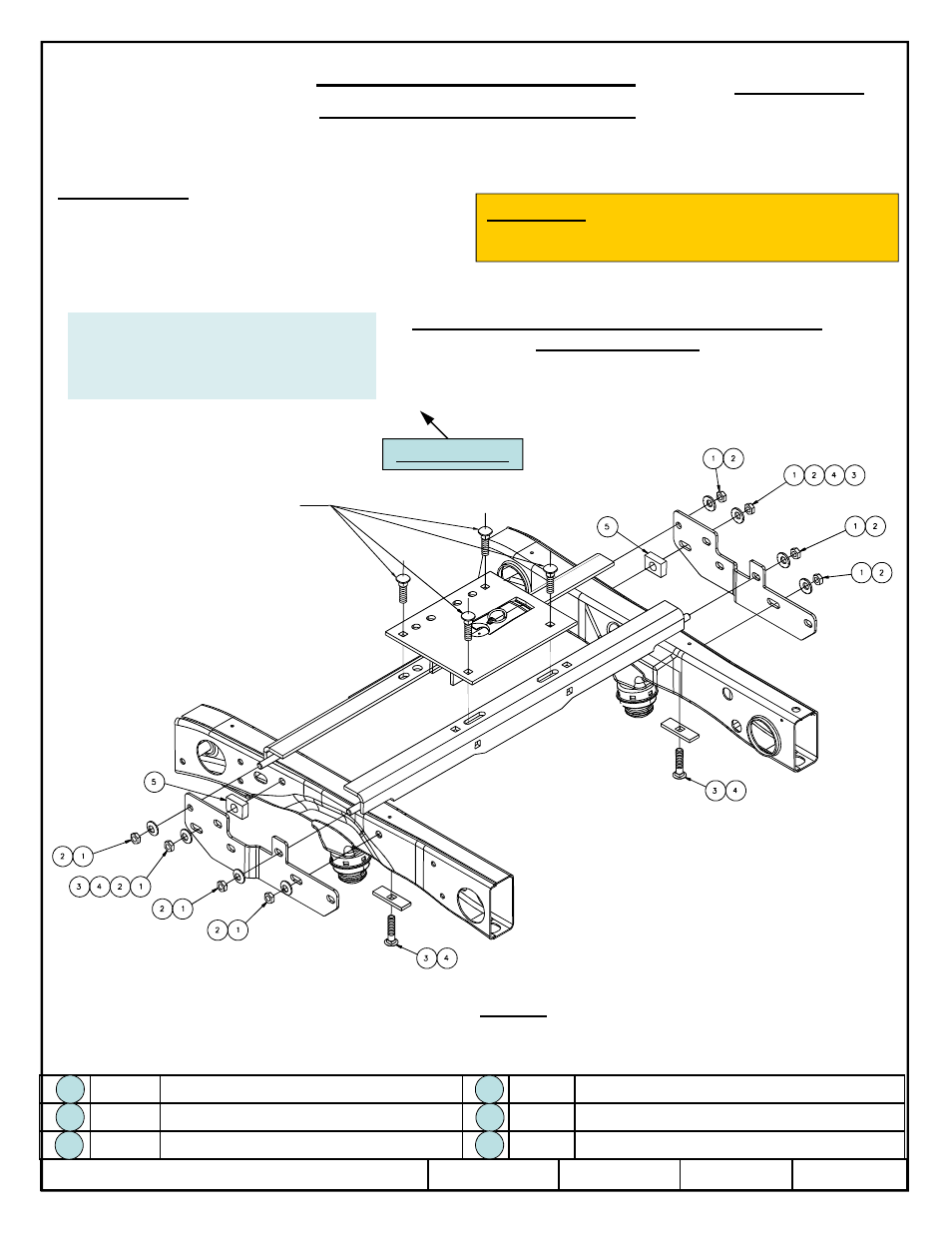

Figure 7
z
2011 Cequent Performance Products
Sheet 5 of 8
4456N
8-17-11
Rev. B
Qty. (10)
5/8-11, Hex Nut
Qty. (4)
Block 1/4 X 1.13 x 3.00
Qty. (10)
5/8” Conical Toothed Washer
Qty. (2)
Block 5/8 X 1.50 X 2.13
Qty. (6)
5/8 X 2.50 Carriage Bolt – GR5
Qty. (4)
Shims, 5/16 X 2.00 X 1.00 (Not Shown)
5
6
4
3
2
1
