Draw-Tite 6033 16K 5TH WHEEL - Manual (Page 10)

13
14
15
16
17
18
19
20
21
26
27
28
29
30
31
32
33
35
33
37
38
39
40
41
42
36
34 SEPARATE BASERAIL KIT
PART #30035 PCS.
1. LONG BRACKET (2)
2. SHORT BRACKET (2)
3. FILLER SPACER (8)
4. SPACER (2)
5. CARRIAGE BOLTS (8)
6. KNURLED BOLTS (8)
7. 1/2” NUTS (16)
8. 1/2” LOCKWASHERS (16)
9. 1/2” SERRATED WASHERS (4)
10. 1/2” FLAT WASHERS (4)
25. BASERAILS (2)

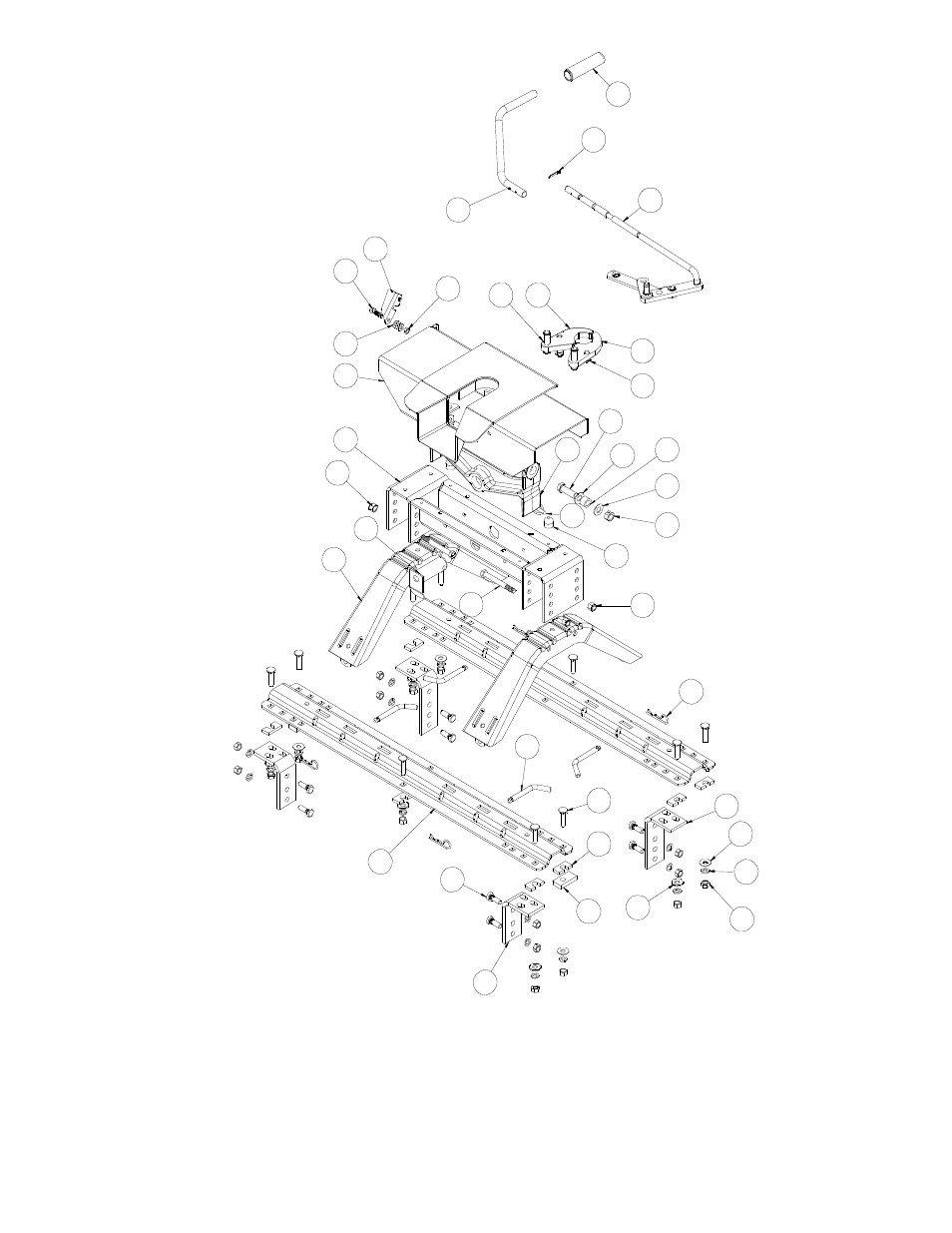

Fig. 19
6032IN-24MAR09D PCN11701 ©2001 DRAW-TITE, INC. LITHO IN USA
1
2
3
4
5
6
7
8
9
10
25
11
12
16K 5TH WHEEL PCS.
11. LONG PULL PIN (4)
12. SPRING RETAINING PIN(4)
13. L.H. JAW
(1)
14. R.H. JAW (1)
15. PIN (2)
16. RETAINER RINGS (6)
17. ACTUATING HANDLE (1)
18. LATCH (1)
19. 3/8” BOLT
(1)
20. 3/8” LOCKWASHER (1)
21.3/8” NUT
(1)
22.SPRINGS
(2)
26. HEAD ASSEMBLY (1)
27. HEAD SUPPORT (1)
28. SIDE BRACKETS (2)
29. PIVOT BEAM (1)
30. PIVOT PIN (1)
31. KLIK-PIN (1)
32. 1/2-13” X4 1/2” BOLTS (4)
33. 1/2” LOCK NUTS (4)
34. COTTER PIN (1)
35. HANDLE, TUBE (1)
36. HANDLE GRIP (1)
