Draw-Tite 3400 FRICTION SWAY CONTROL User Manual
Installation instructions, Sway control

INSTALLATION INSTRUCTIONS
SWAY CONTROL
3
4
5
6
1a
1b
1c
2a
2b
2b
7
2
1
8
10
11
9
REF. QTY.
DESCRIPTION
REF. QTY.
DESCRIPTION
1
1
Ball Assembly
4
1
Bar - Ball Mounting (sold separately)
1a
1
Ball
5
1
Handle, On/Off
1b
1
Nut, Hex, 5/8-11
6
1
Slide Bar
1c
1
Lock Washer
7
1
Bolt, Tension Adjusting
2
1
Fastener Kit
8
1
Grip, Handle
2a
6
Screw, Self Tapping 24-9 X 1
9
1
Compression Plate Ass'y
2b
2
Clip
10
1
Washer, Hardened
3
1
Ball/Plate Assembly
11
1
Main Body Ass'y

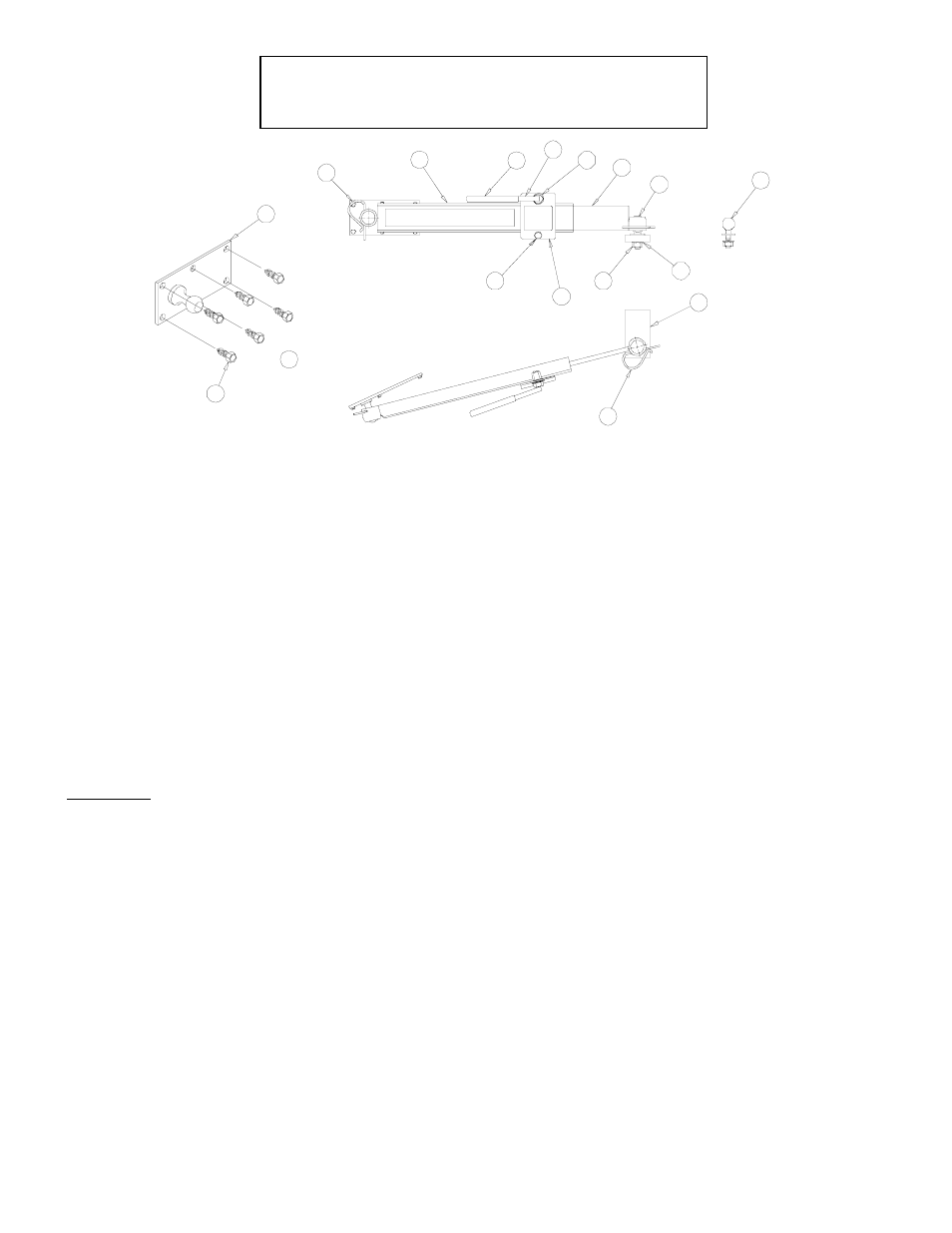

FIGURE 1
READ ALL INSTRUCTIONS AND CHECK PACKAGE CONTENTS
IMPORTANT
1. SWAY CONTROL CANNOT BE USED ON TRAILERS WITH SURGE BRAKES. DO NOT USE SWAY CONTROL ON CLASS
I HITCHES.
2. Trailer loading: Proper trailer loading is your first-line defense against dangerous instability and sway. Heavy items should be
placed on the floor in front of the axle. The load should be balanced side-to-side and secured to prevent shifting. Tongue weight
should be about 10-15 percent of gross trailer weight for most trailers. Too low a percentage of tongue weight can cause sway.
Load the trailer heavier in front.
3. The handle (5) is an on/off device. The bolt (7) below is for adjustment only.
4. When towing during slippery conditions such as wet, icy, or snow-covered roads or on loose gravel, turn on/off handle (5)
counterclockwise until all tension is removed from unit. Failure to do so could prevent tow vehicle and trailer from turning
properly.
5. Do not speed up if sway occurs. Sway increases with speed. Do not continue to operate a swaying vehicle. Check trailer
loading, sway control adjustment and all other equipment until the cause of sway has been determined and corrected.
6. Never paint or lubricate slide bar (6).
