Draw-Tite 118269 OEM WIRING HARNESS User Manual
Dg h i j

READ THIS FIRST:
Read and follow all vehicle warnings and installation
instructions before beginning installation. Wear safety
glasses and use all safety precautions during installation.
LISEZ CECI EN PREMIER:
Lire et observer toutes les consignes de sécurité et les
instructions avant de commencer l’installation. Durant
l’installation, veiller à toujours porter des lunettes de
protection et respecter les mesures de sécurité.
LEA ESTO PRIMERO:
Lea y siga todas las advertencias e instrucciones de
instalación del vehículo antes de empezar la instalación.
Use gafas de seguridad y todas las precauciones de
seguridad durante la instalación.
118269-037
Rev. A
04/15/13
Installation Instructions
Directives de Montage
Instrucciones de Instalación
T-Connector
Connecteur en T
Conector en T
ENGLISH
TOOLS REQUIRED:
Trim Panel Remover, Wire Cutters,
10mm Socket & Ratchet or 10mm Wrench,
Philips Head Screwdriver, Test-probe

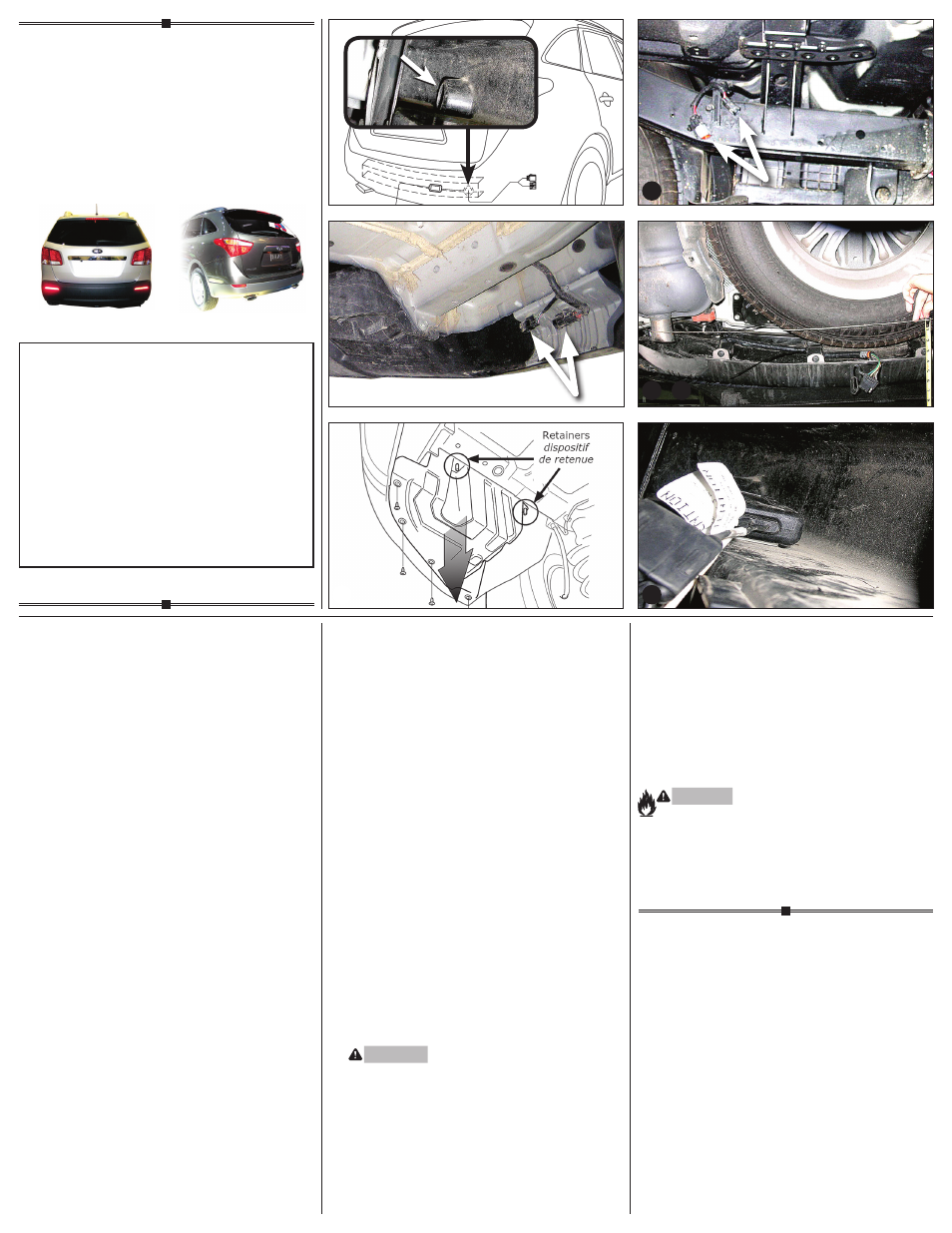

1. KIA Sorento:
Lower spare tire to gain access to vehicle wiring.
Hyundai Veracruz:
Find access hole inside the bumper support
channel, above passenger side exhaust,
and route T-Connector harness plugs though
hole d.
2. KIA Sorneto:
Underneath the vehicle, on the passenger’s
side, on top of the frame rail near the rear tire,
locate the vehicle Tow-Plug harness. It will have
a connection point matching the T-Connector
harness. Remove protective cap, being careful
not to break the locking tabs. All connector
surfaces should be clean and free of dirt e.
NOTE
On some vehicles, the vehicle wiring harness
is located behind a protective cover on the
drivers side frame rail. Remove the plastic
trim fasteners, securing the protective cover,
to access vehicle’s wiring harness. f.
Hyundai Veracruz:
Locate the vehicle Tow-Plug harness underneath
the vehicle, on the passenger’s side frame,
near the rear tire. It will have a connection point
matching the T-Connector harness. Remove
protective cap, being careful not to break the
locking tabs. All connector surfaces should be
clean and free of dirt g.
3. Remove he vehicle tow plug protective
caps and return to customer. All connector
surfaces should be clean and free of dirt.
Insert the T-Connector harness into the vehicle’s
Tow-Plug harness and lock into place. Be sure
that connectors are fully inserted with locking
tabs in place.
4. KIA Sorneto:
Route the T-Connector harness rearward to
the back of the fascia of the bumper. Route
the T-Connector harness along the inside of
bumper toward the center of vehicle h.
Hyundai Veracruz:
Route the T-Connector harness along the inside
of bumper support channel toward the center
of vehicle. Mount the 4-Flat end in an accessible
location with a bracket or electrical box
(not included) i.
WARNING
Route the wire being careful to avoid any hot
pipes, heat shields, the fuel tank or any other
points that may pinch or break the wire.
5. Mount the T-Connector black box using
double-sided tape provided onto the bottom
of the bumper support channel. Secure all
loose wires with cable ties j.
6. All connections must be complete for the
T-Connector to function properly. For initial test,
reset vehicle electrical system by temporarily
removing the key from the ignition. Test and
verify installation with a test light or trailer
once installed.
WARNING
Overloading circuit can cause fires. DO NOT
exceed lower of towing manufacturer rating or:
• Max. stop/turn light: 2 per side (4.2 amps)
• Max. tail lights: (7.5 amps)
Read vehicle’s owners manual & instruction
sheet for additional information.
d
g
h i
j
Hyundai Veracruz
Kia Sorento
e
f
