Draw-Tite 118262 OEM WIRING HARNESS User Manual
Draw-Tite For the car

ENGLISH
TOOLS REQUIRED:
Test-probe

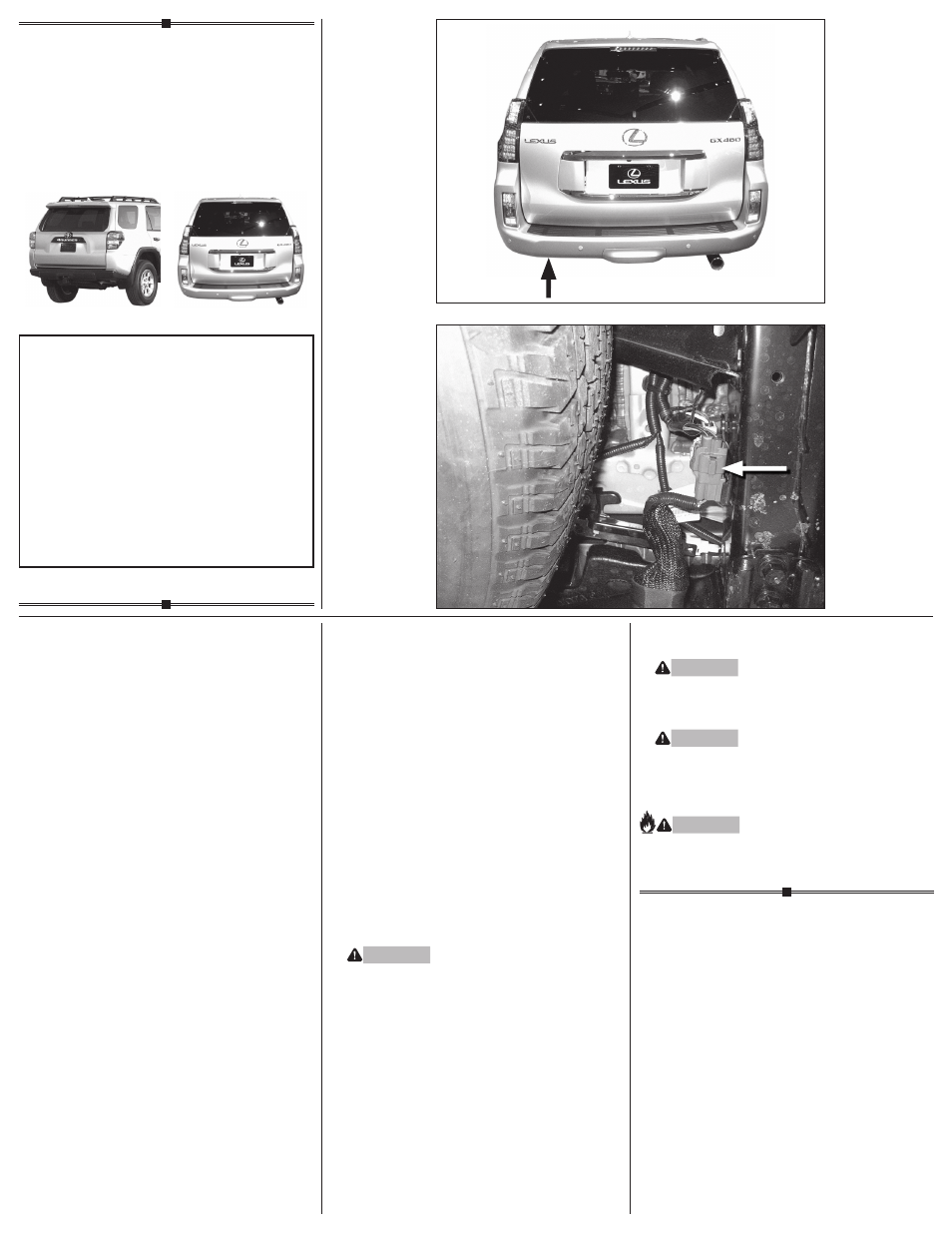

1. Locate the vehicle’s wiring harness 3-Pin and
4-Pin plugs located in the rear, underneath the
vehicle, inside the driver’s side frame rail. This
harness will have connectors that will mate to
the end of the tow plugs.
2. Remove factory tow harness protective
caps and check to see if the mating surface
is clean and free of dirt, clean if necessary.
3. Insert the tow plugs into the connectors.
Be careful not to damage the locking tabs
and be sure that connectors are fully
inserted with locking tabs in place.
4. Route the T-Connector harness along the
inside of bumper toward the center of vehicle.
WARNING
Route the wire being careful to avoid any
hot pipes, heat shields, the fuel tank or any
other points that may pinch or break the wire.
5. Plug the 7-way socket (provided) into the
Trailer Tow Harness.
WARNING
Secure all loose wires and mount the Trailer
Tow Harness in an accessible location with
a bracket or electrical box (not included).
WARNING
All connections must be complete for the
T-Connector to function properly. Test and
verify installation with a test light or trailer
once installed.
WARNING
Do not exceed manufacturer’s fuse rating.
Read vehicle’s owners manual & instruction
sheet for additional information.
READ THIS FIRST:
Read and follow all vehicle warnings and
installation instructions before beginning installation.
Wear safety glasses and use all safety precautions
during installation.
LISEz CECI EN PREmIER:
Lire et observer toutes les consignes de sécurité et les
instructions avant de commencer l’installation. Durant
l’installation, veiller à toujours porter des lunettes
de protection et respecter les mesures de sécurité.
LEA ESTO PRImERO:
Lea y siga todas las advertencias e instrucciones
de instalación del vehículo antes de empezar la
instalación. Use gafas de seguridad y todas las
precauciones de seguridad durante la instalación.
118262-037
Rev. A
08/27/2010
Installation Instructions
Directives de montage
Instrucciones de Instalación
T-Connector
Connecteur en T
Conector en T
4-Runner
Lexus GX460
