Draw-Tite 20274 WIRING ADAPTER User Manual
Draw-Tite For the car

READ THIS FIRST:
Read and follow all vehicle warnings and installation
instructions before beginning installation. Wear safety
glasses and use all safety precautions during installation.
LISEz CECI En PREmIER:
Lire et observer toutes les consignes de sécurité et les
instructions avant de commencer l’installation. Durant
l’installation, veiller à toujours porter des lunettes de
protection et respecter les mesures de sécurité.
LEA ESTO PRImERO:
Lea y siga todas las advertencias e instrucciones de
instalación del vehículo antes de empezar la instalación.
Use gafas de seguridad y todas las precauciones de
seguridad durante la instalación.
20274-037
Rev. A
01/25/11
Installation Instructions
Directives de montage
Instrucciones de Instalación
T-Connector
Connecteur en T
Conector en T
ENGLISH
TOOLS REQUIRED:
Trim Panel Remover, Wire Crimpers

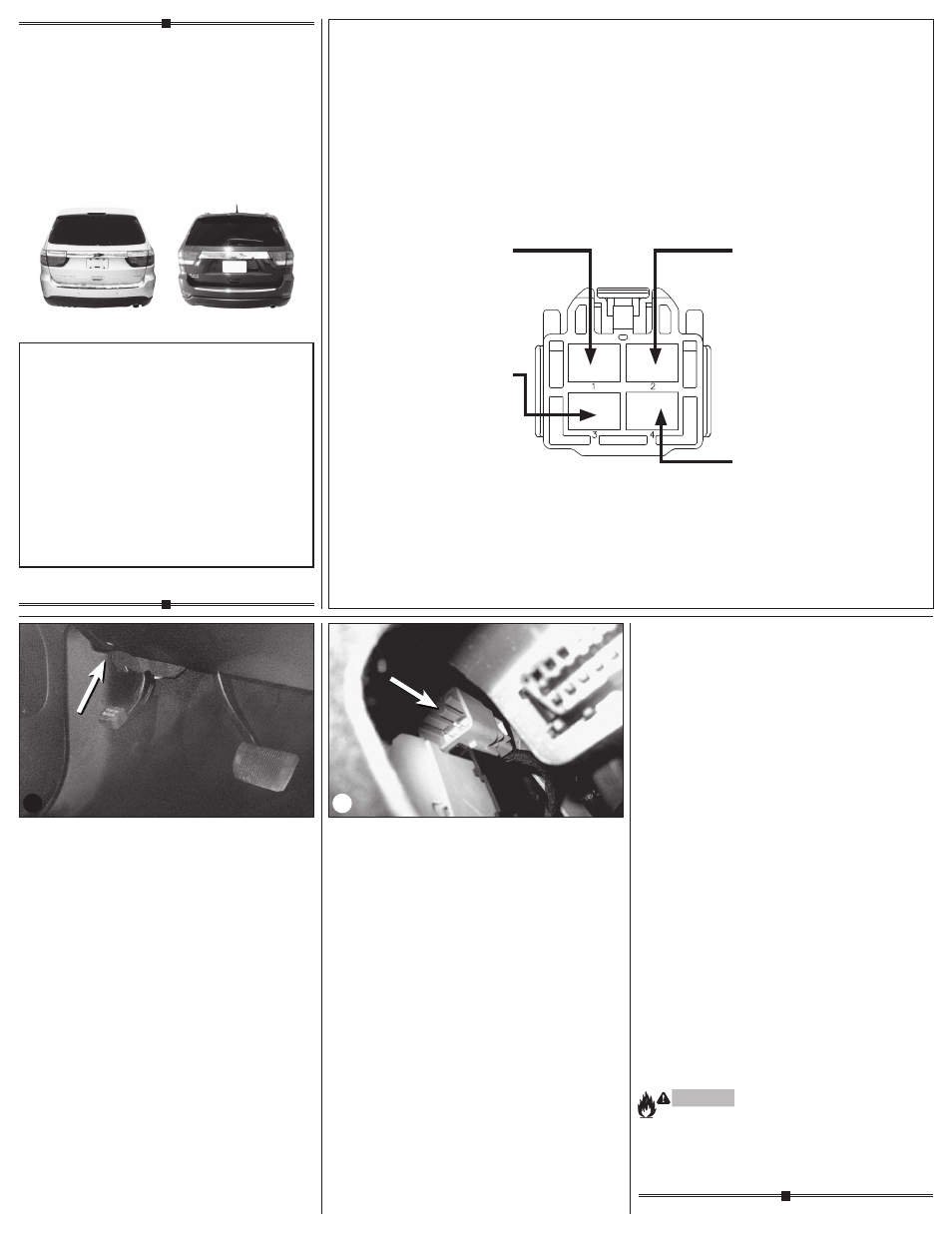

1. Carefully remove vehicle trim panel underneath
dash making sure not to pull on courtesy lamp
wires that are attached d.
2. Locate the vehicle’s electric brake control harness
connector. The harness will be located underneath
the dash and left of the steering column, taped to
another harness near the emergency brake pedal.
There will be a 4-pin connector that mates with the
one on the adapter e.
3. Plug the brake control adapter into the vehicle
electric controller connector. Use butt connectors
and attach the wires from the adapter to the
corresponding wires on the electric brake control,
following the brake control manufacturer’s
installation instructions.
4. Complete the installation per the electric
brake control manufacturer’s instructions
and mount the unit as directed. Perform test
procedures as instructed.
nOTE
Vehicles not equipped with OEM trailer tow
package, may require fuses and relays to complete
output & battery feed circuits (sold separately).
Consult owners manual for locations.
WARnInG
Overloading circuit can cause fires. DO NOT
exceed lower of towing manufacturer rating or:
• Max.4 axles: 8 brakes (24 amps)
Read vehicle’s owners manual and instruction
sheet for additional information.
d
Dodge Durango
Jeep Grand Cherokee
e
Vehicle Stop Lamp Switch
To Brake Controller (Input)
Commutateur De Feux
D’arrêt Du Véhicule Au
Controle De Freins
Interruptor De Luces De
Frenado Del Vehiculo Al
Controlado De Freno (Entrada)
Fused Trailer Brake Controller
Battery Feed
Alimentation À Fusible De La
Batterie Au Contrôle De Freins
Conductor (Con Fusible)
De La Bateria Al Controlador
Del Freno Del Remolque
Ground
Mise À La Terre
Tierra
Trailer Brake Controller
(Output)
Contrôle De Frein
De Remorque (Sortie)
Conductor Del Controlador
De Freno (Salida) Al Freno
Eléctrico Del Remolque
Wiring Adapter Housing
(Containing Female Terminals - Wire Side)
Logement De L’adaptateur De Câblage
(Contenant Les Bornes Femelle - Côté Fil)
Protector Del Adaptador De Cables
(Contiene Los Terminales Hembra - Alambre El Lado)
