Installation Instructions
Mazda 5
Part Numbers:
77150
24773
60841

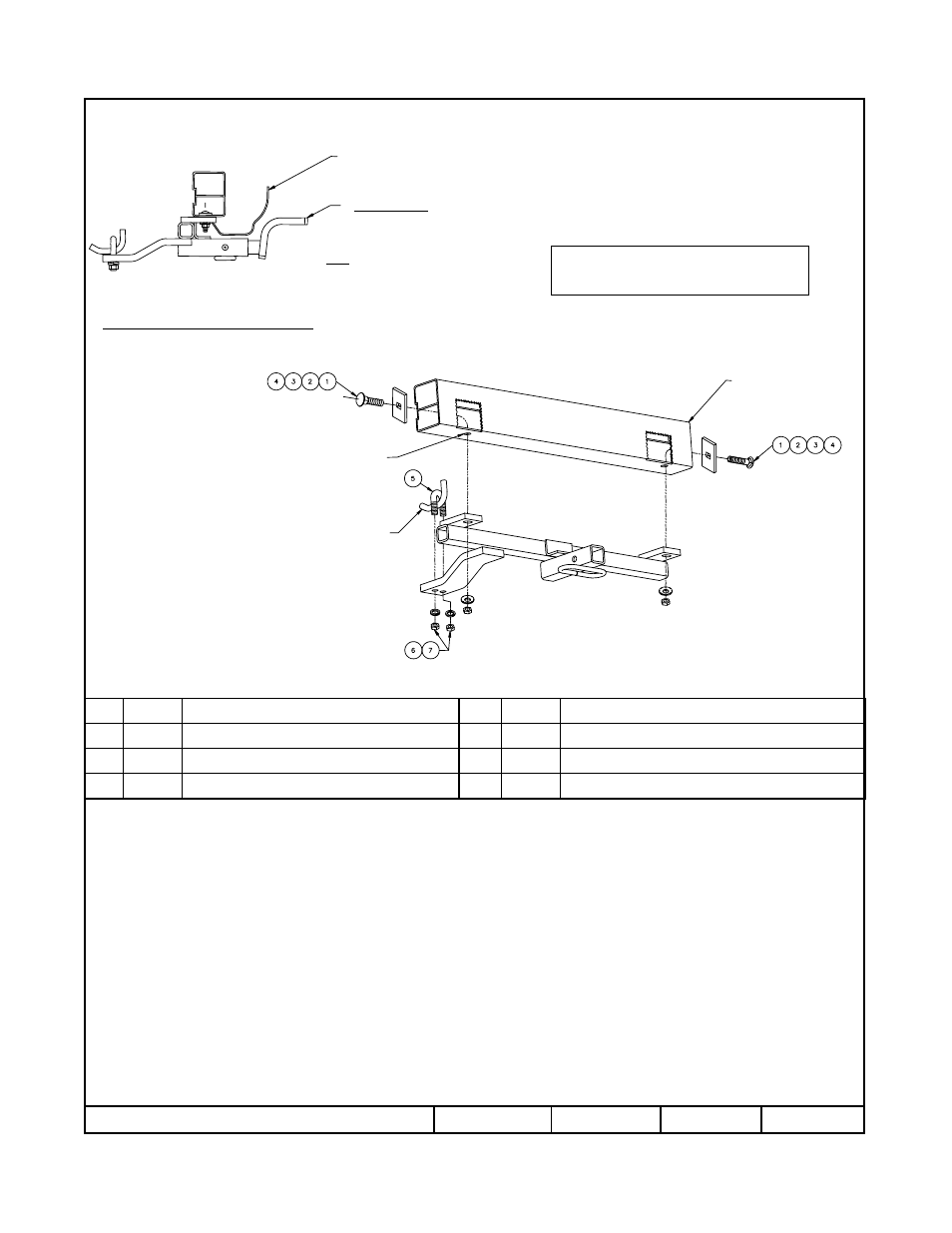

Hitch Shown In Proper Position
Wiring Access Location: PC3, PC4
Equipment Required:
Wrenches: 11/16, 3/4
Drill Bits: 1/2”
1.
Enlarge existing holes on the bottom surface of the vehicle bumper structure with a 1/2” drill bit.
2.
Fishwire carriage bolts and blocks through the vehicle bumper structure and through the 1/2 drilled holes in in step 1.
3.
Raise hitch into position and loosely install the conical toothed washers and 1/2 hex nuts.
4.
Install the 3/8 U-Bolt through the vehicle tow hook and through the tow hook attachment of the receiver. Install lock washers
and 3/8 hex nuts as shown above.
5.
Tighten all remaining fasteners to the required torque specifications.
Rev. A
5-25-06
24773N
Sheet 1 of 3
z
2006 Cequent Towing Products
1/2 Hex Nut
Qty. (2)
4
3/8 Hex Nut
Qty. (2)
7
Conical Toothed Washer
Qty. (2)
3
Lock Washer
Qty. (2)
6
1/4 X 1.00 X 3.00 Block
Qty. (2)
2
3/8-16 U-Bolt
Qty. (1)
5
1/2-13 X 1.50 Carriage Bolt
Qty. (2)
1
Tighten all 3/8-16 GR5 fasteners with torque wrench to 30 Lb.-Ft. (41 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Drawbar must be used in the
Rise position only.
Drawbar Kit:
3593
Fastener Kit: 24773F
2000 LB (908 Kg) Max Gross Trailer Weight
200 LB (90.8 Kg) Max Tongue Weight
Tighten all 1/2-13 GR 5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
Vehicle Tow Hook
Vehicle Bumper
Structure
Enlarge Existing
Holes (See Step 1.)
Fascia
