Draw-Tite 24771 SPORTFRAME HITCH User Manual
Installation instructions, Hyundai azera, Part numbers

FASCIA
Installation Instructions
Hyundai Azera
Part Numbers:
60837
24771
77148

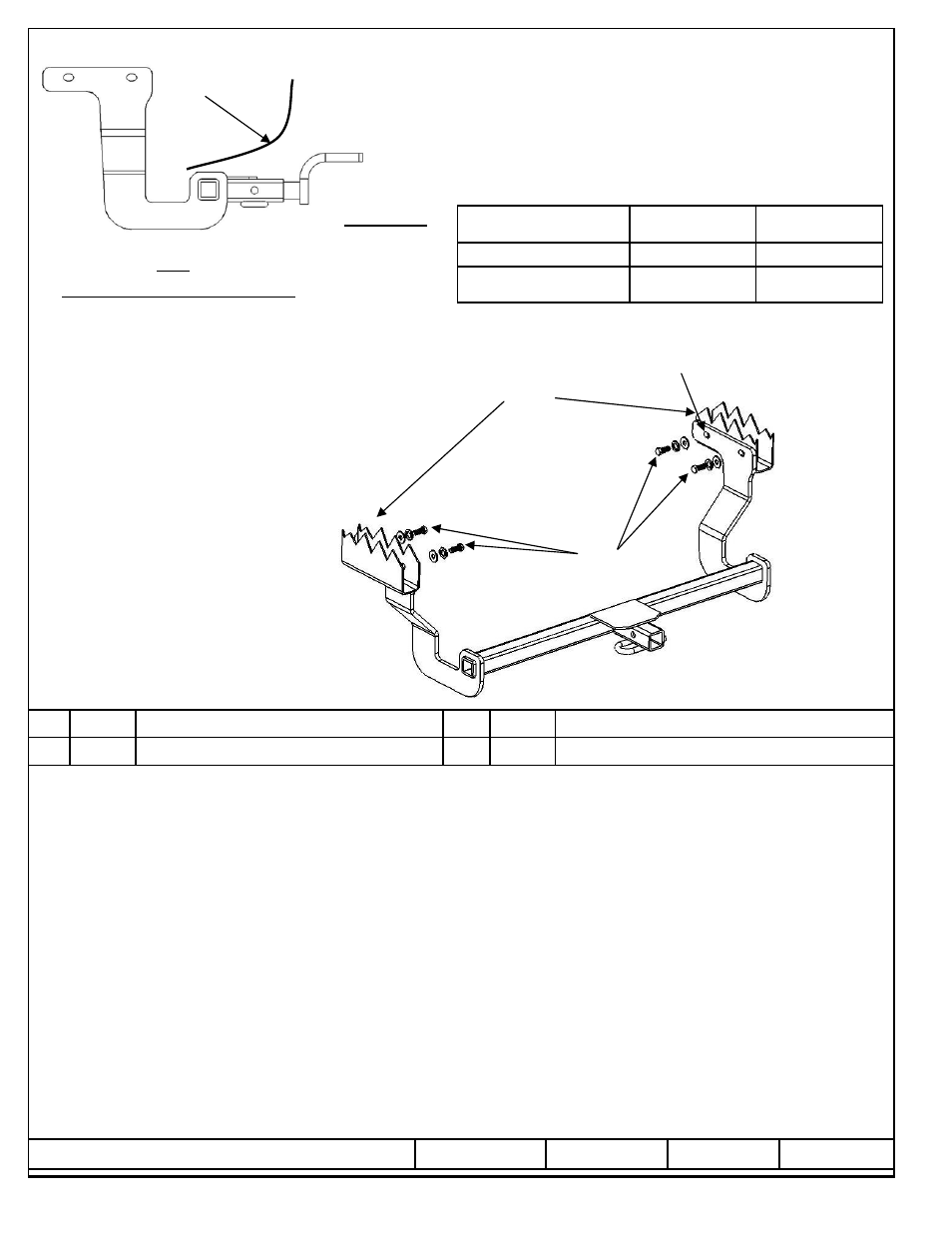

Hitch Shown In Proper Position
Equipment Required:
Wrenches: 3/8” Drive Ratchet, 12mm socket, 10mm socket, 17mm socket
Drill Bits: N/A
z
2005 Cequent Towing Products
Sheet 1 of 1
24761N
04-18-06
Rev. B
1
Qty. (4)
Hex Bolt M10
3
Qty. (4)
Lock Washer
2
Qty. (4)
Flat Washer
4
Qty. ()
Tighten all M10 fasteners with torque wrench to 42 Lb.-Ft.
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: 24761F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing
N/A
N/A
Weight Carrying
Ball Mount
2000
200
Wiring Access Location: N/A
EXISTING WELD NUTS
FRAME
123
1.
Remove 4 – bolts (2 per side) for muffler hangers.
2.
Remove 6 – bolts (4 per side) on heat shield and let hang down.
3.
Slide rubber muffler hanger off of post on passenger side.
4.
Slide 2 rubber muffler hangers off of holders where the dual exhaust come together and let muffler assembly rest on cross
member in middle of vehicle.
5.
Slide hitch assembly into place with the hitch brackets to the inside of the frame rails.
6.
Bolt hitch to vehicle with fasteners supplied in fastener kit as shown.
7.
Insert the supplied (4) M10 hardware with flat and lock washers through bracket holes and thread into the weld nuts already in
the frame, hand tighten all supplied hardware.
8.
Tighten the (4) M10 CL8.8 fasteners with torque wrench to 42 Lb-ft.
9.
Re-install the 2 muffler hangers at the dual exhaust location.
10.
Re-install both heat shields
11.
Re-install rear muffler hangers
12.
Re-install passenger side muffler rubber mount.
Drawbar must be used in the
RISE position only.
Drawbar Kit:
3593
Form: F205 Rev A 5-6-05
