Draw-Tite 24878 SPORTFRAME HITCH - Manual (Page 2)

Installation Instructions
Part Numbers:
24878
60295
77266
Chevrolet Sonic 5 Door Hatchback
All models including LS, LT & LZ

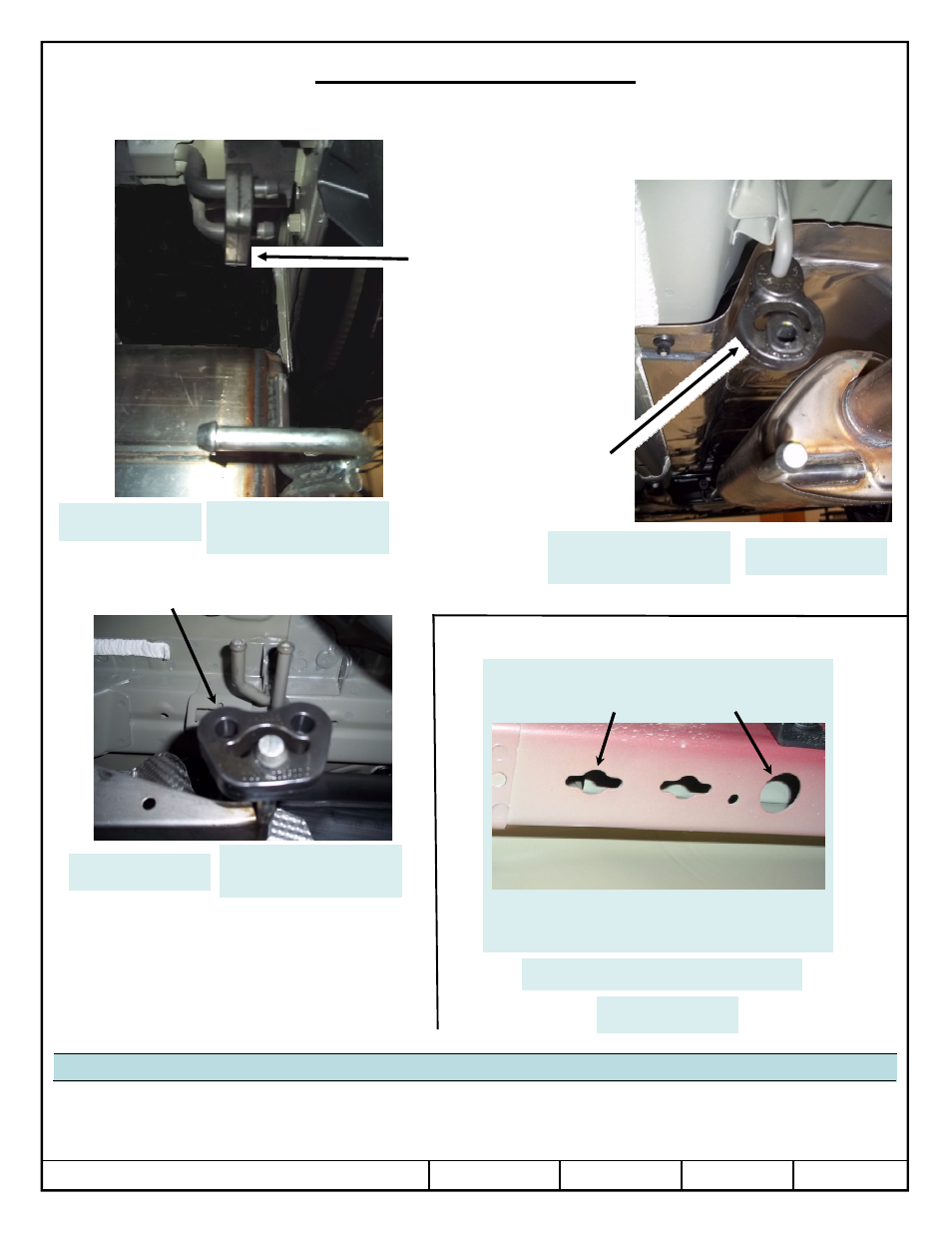

Picture 1. Rear Muffler
Isolator
Picture 2.
Tail-pipe hanger rubber isolator
shown removed off of metal
pegs.
Forward Muffler
Isolator
Rubber isolator shown
removed off of metal
peg attached to forward
side of muffler.
Rubber isolator shown
removed off of metal peg
attached to rear of muffler.
© 2011 Cequent Performance Products Sheet 2 of 6 24878N 11-11-11 Rev. A
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Picture 3.
pegs.
Tighten 7/16”-Gr.5 Carriage Bolts with torque wrench to 50 Lb.-Ft. (68 N*M)
Tail-pipe Isolator
located above axle.
First; fish-wire bolt with block up through this larger
hole and back down through smaller attachment hole.
Passenger’s side vehicle frame rail.
Second; fish-wire up through the large hole and
back down through same large hole.
Picture 4.
