Draw-Tite 36298 FRAME HITCH - Manual

Installation Instructions
Toyota Sienna
Part Numbers:
90638
36298
06077
Do Not Exceed Lower of Towing Vehicle
M f t ’ R ti
Optional Drawbar Kit 36061
(Sold Separately)
For 1998-2000 Model Years
Must be used in Rise position only
Frame Rail
Fascia
Hitch Shown In Proper Position Wiring Access Location: SUV3, SUV4
Equipment Required:
3500 LB (1589 Kg.) Max Gross Trailer Weight
300 LB (136 Kg.) Max Tongue Weight
Manufacturer’s Rating or
Drawbar must be used in the
Rise position only.
Drawbar Kit:
36053
Fastener Kit: F36298
Wrenches: 7/8”, 16mm
Drill Bits: None
Frame Rail
Existing Weldnuts
1
2
1. Remove tow hooks from frame rails.

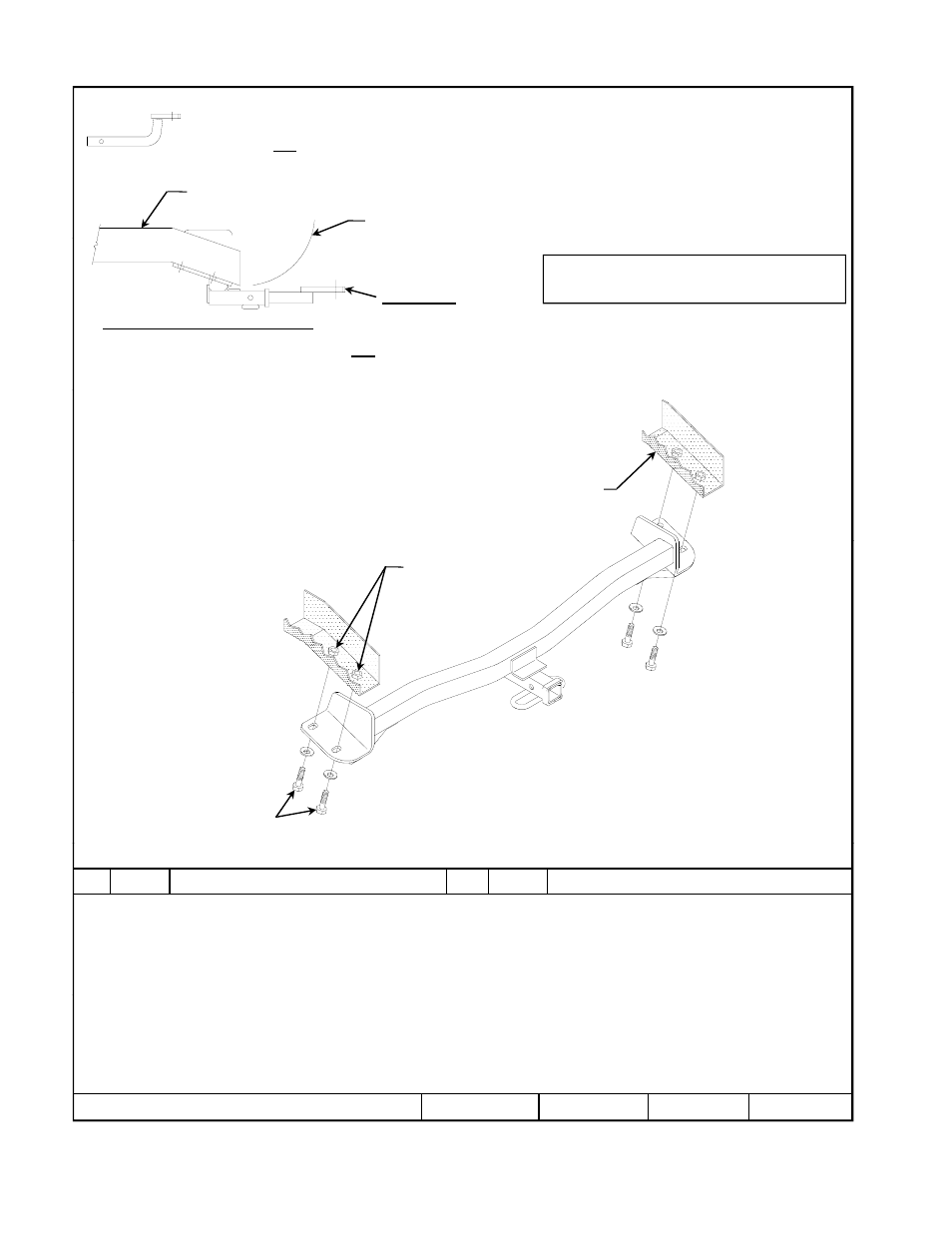

2. Raise hitch into position and install fasteners as shown above.
3. Return all fasteners and tow hooks to vehicle owner.
1 Qty. (4) Hex Bolt – M10 x 1.25 x 30mm CL10.9 2 Qty. (4) Conical Toothed Washer – 7/16”
Tighten all M10 x 1.25 CL10.9 fasteners with torque wrench to 53 Lb.-Ft. (72 N*M)
2
z 2010 Cequent Performance Products Sheet 1 of 1 N36298 6-2-10 Rev. C
Tighten all M10 x 1.25 CL10.9 fasteners with torque wrench to 53 Lb. Ft. (72 N M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Form F206 Rev A 5605
