Draw-Tite 36297 FRAME HITCH User Manual
Installation instructions, Volvo v70 volvo s60, Part numbers

Installation Instructions
Volvo V70
Volvo S60
Part Numbers:
36297
06420
Hitch Shown In Proper Position
Equipment Required:
Wrenches: 17mm
Drill Bits: None
Rev. B
10-16-06
N36297
Sheet 1 of 3
z
2000, 2001, 2003, 2006 Cequent Towing Products
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: Uses Existing Fasteners
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Wiring Access Location: PC3, PC4
Form: F205 Rev A 5-6-05
Tighten all M12 CL9.8 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)
1.
Remove tie-down bracket from passenger side frame rail.
2.
Remove two (2) exhaust hanger bracket bolts from driver side frame rail.
3.
Lower exhaust hanger bracket and heat shield.
4.

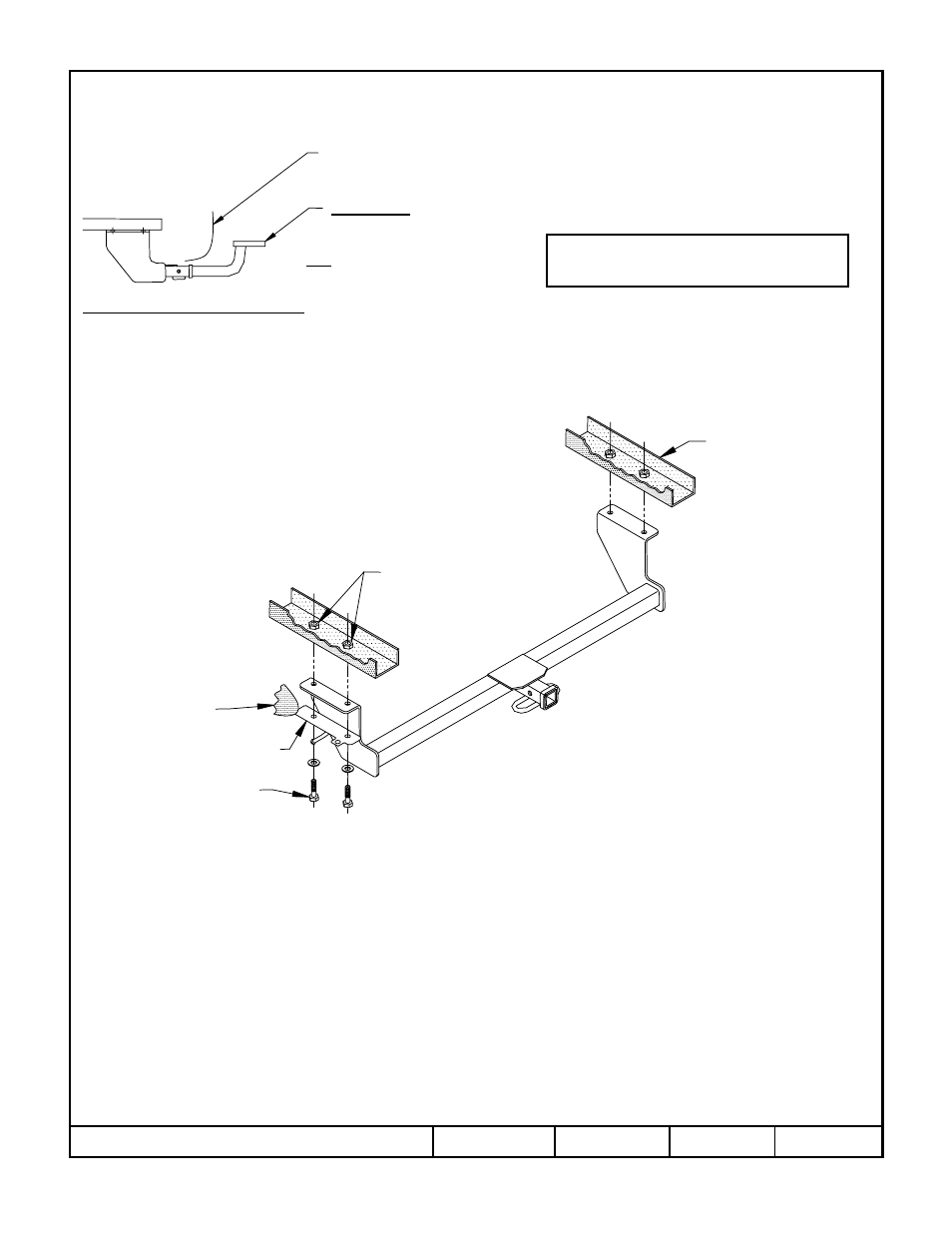

Raise hitch into position and install between frame and exhaust hanger bracket using existing fasteners as shown above.
5.
Return tie-down bracket to vehicle owner.
Frame Rail
Drawbar Kit:
36061
Drawbar must be used in the
Rise position only.
3500 LB, (1589 Kg) Max Gross Trailer Weight
300 LB, (136 Kg) Max Tongue Weight
Heat Shield
Existing Weld Nuts
Exhaust Hanger Bracket
Existing fasteners
typical both sides
Bumper
