Draw-Tite 36525 FRAME HITCH User Manual
Installation instructions, Kia rondo, Part numbers

Installation Instructions
Kia Rondo
Part Numbers:
36525
90220
06184

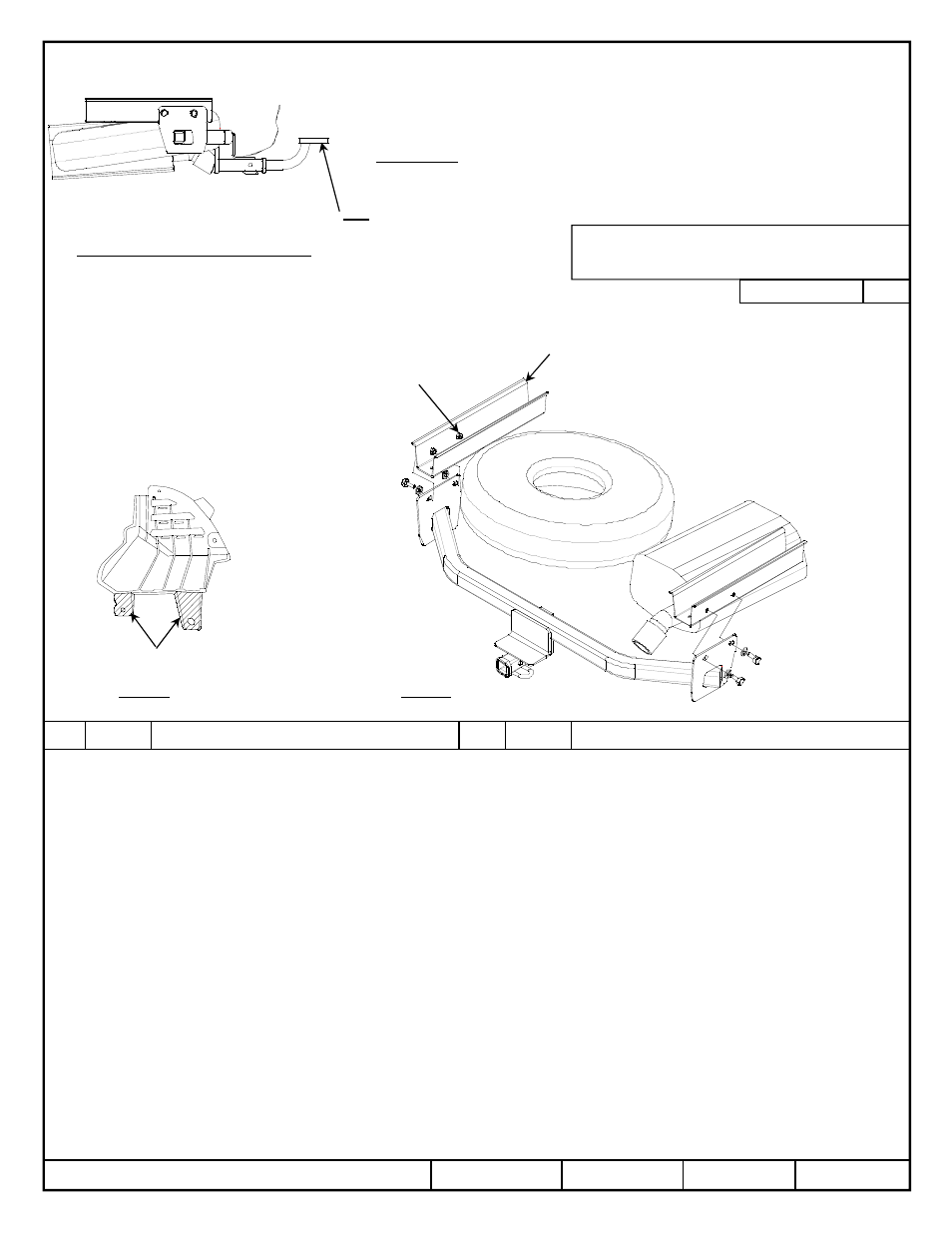

Hitch Shown In Proper Position
Wiring Access Location:
Equipment Required:
Lubricant or soapy water
Wrenches:
10mm,17mm, small philips screwdriver
Drill Bits:
None
Frame rail
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Drawbar must be used in the
Rise
position only.
Drawbar Kit:
36061
Fastener Kit:
36525F
Accessory Rating
B
3500
LB (1589 Kg) Max Gross Trailer Weight
300
LB (136 Kg) Max Tongue Weight
12
Existing
weld nuts
1.
Loosen the spare tire for additional clearance during hitch installation.
2.
Remove the cover panels on both side of frame rails. Obtain owners permission to trim or return to owner. See Figure 2.
3.
Lower exhaust system at the rear rubber isolator leaving the rubber isolator in place on the vehicle. Spraying a lubricant or soapy water on the
metal hanger rod and the rubber isolator helps removal.
4.
Lift hitch into position, passengers side first. Place hitch over the top of the tail pipe. Rotate into position on the outside of the frame rail.
5.
Install fasteners as shown. Figure 1.
6.
Tighten all fasteners to required specification.
7.
Re-install appearance panels if trimmed.
8.
Reattach vehicle exhaust, spraying a lubricant or soapy water will help.
9.
Tighten spare tire back into position, if lowered.
z
2012 Cequent Performance Products, Inc
Sheet 1 of 3
36525N
11-30-12
Rev. A
1
1
1
1
Qty. (4)
Bolt M10 x 1.25 x 30 CL8.8
2
2
2
2
Qty. (4)
Conical washer 3/8”
Tighten all M10 CL 8.8 fasteners with torque wrench to 42 Lb.-Ft. (57 N*M).
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Form F206 Rev B 9-17-2012
Area to be trimmed.
Figure 1.
Figure 2.
1
2
