Installation Instructions

Hyundai Santa Fe

Kia Sorento

Part Numbers:

90212

36511

06133

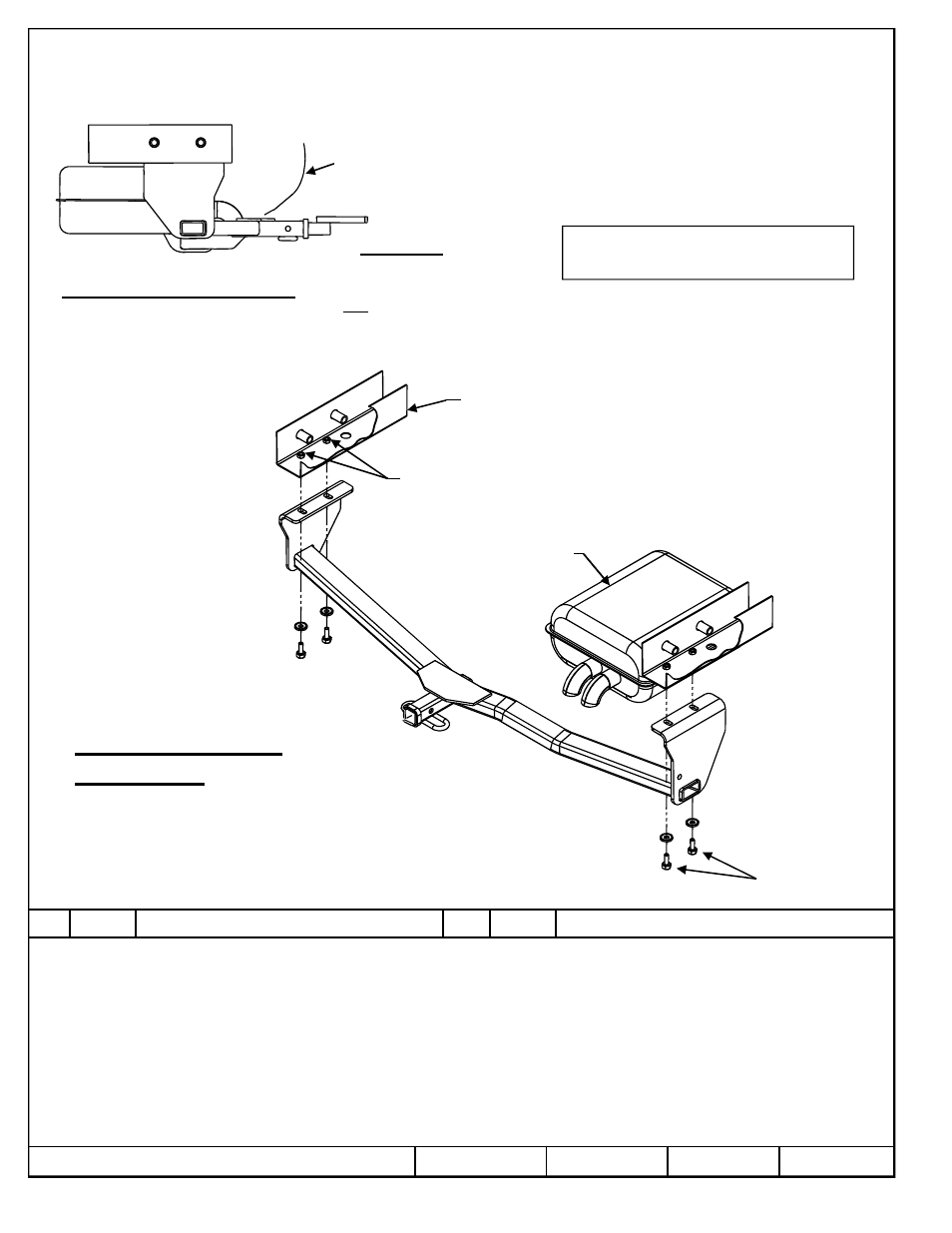

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 16mm

Drill Bits: None

Fastener Kit: 36511F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Wiring Access Location: Santa Fe: SUV3, SUV4

Sorento: SUV7

Frame Rail

Exhaust

Weldnuts in Vehicle
Frame Rail-Typical

Fascia

3500 Lb. (1589 kg) Max Gross Trailer Weight

350 Lb. (159 kg) Max Tongue Weight

Drawbar must be used in the
Rise position only.

Drawbar Kit:

36001

1.

Raise car on ramps, hoist, or jack stands.

2.

Raise hitch into position, installing fasteners as shown into existing weldnuts in vehicle frame.

z

2011 Cequent Performance Products

Sheet 1 of 3

36511N

9-1-11

Rev. A

1

1

1

1

Qty. (4)

Hex Bolt – M10 x 1.25 x 30mm CL10.9

2

2

2

2

Qty. (4)

Conical Toothed Washer – 7/16”

Tighten all M10 x 1.25 CL10.9 fasteners with torque wrench to 59 Lb.-Ft. (80 N*M)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent

entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a

vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and

SAE J684.

Form: F205 Rev A 5-6-05

Fasteners Typical
Both Sides

12

12

12

12
