Draw-Tite 75599 MAX-FRAME RECEIVER - Manual

Installation Instructions
Acura MDX
Honda Pilot
Part Numbers:
44589
75599
87454

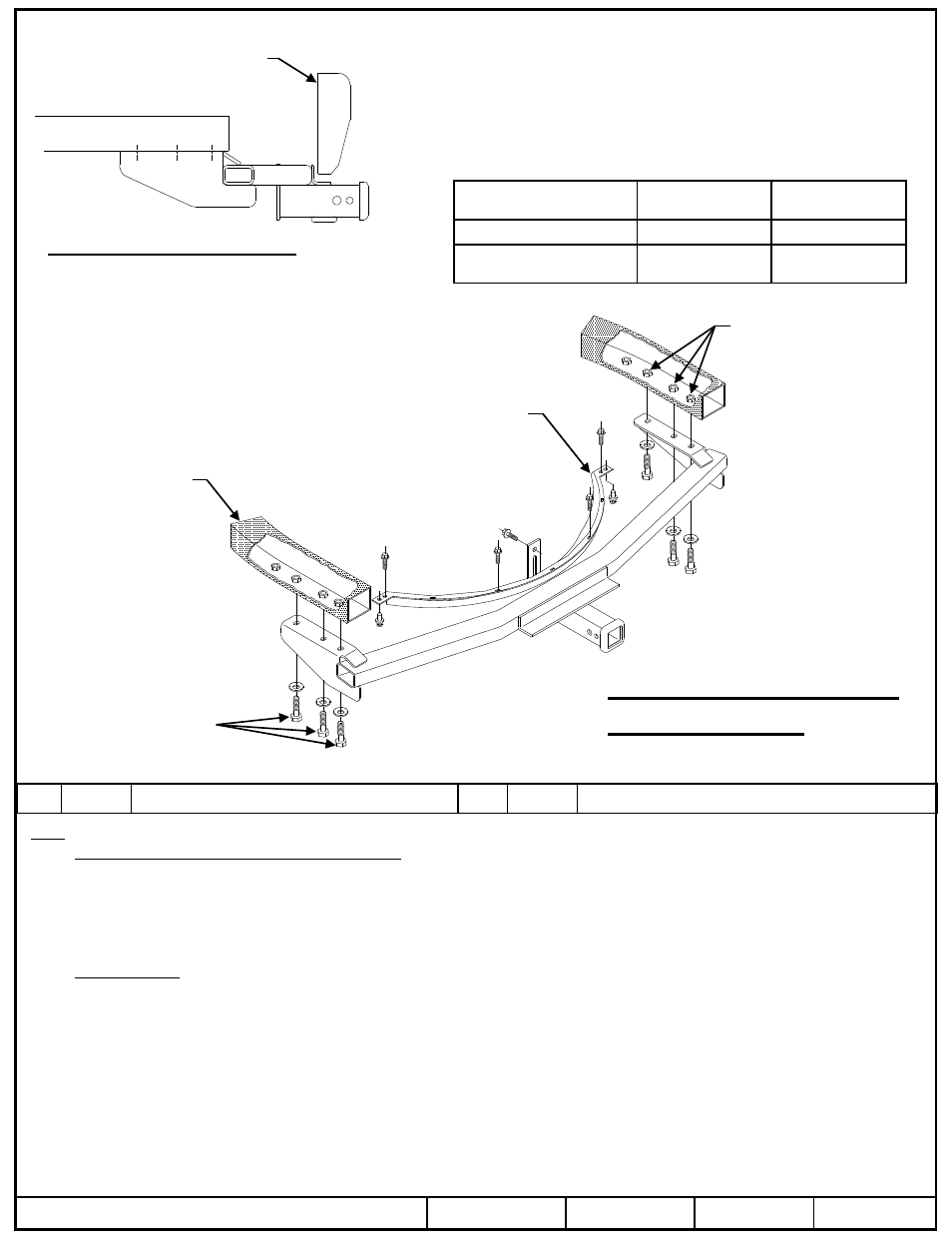

Hitch Shown In Proper Position
Equipment Required:
Wrenches: 10mm, 14mm, 17mm, 19mm
Drill Bits: None
Note: Transmission cooler and Power Steering cooler are required for max. towing capacity (See vehicle owner’s manual for details).
2001-2003 Acura MDX & 2001 and later Honda Pilot:
1. Remove tow hook from driver’s side of vehicle and return hook and fasteners to vehicle owner.
2. Lower exhaust by removing three rubber muffler hangers.
3. Raise hitch into position and install fasteners as shown above.
4. Reinstall muffler hangers removed in step 2.
5. If exhaust rattle occurs, trim rearward exhaust heat shield between crosstube and muffler.
2004 Acura MDX
1. Remove tow hook from driver’s side of vehicle and return hook and fasteners to vehicle owner.
2. Remove fascia under covering by removing bolts and fascia clips shown above and return to vehicle owner.
3. Lower exhaust by removing four rubber muffler hangers.
4. Raise hitch into position and install fasteners as shown above.
5. Reinstall muffler hangers removed in step 3.
© 2007, 2013 Cequent Towing Products – Printed in Mexico
Sheet 1 of 3 75599N 10-24-13 Rev.B
j
Qty. (6) Hex Bolt M12 x 1.25 x 35mm CL8.8
k
Qty. (6) Conical Washer – ½”
Tighten all m12 x 1.25 CL8.8 fasteners with torque wrench to 68 Lb.-Ft.
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to prevent
entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working beneath a
vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5 and
SAE J684.
Fastener Kit: 75599F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
Hitch type
Max Gross
Trailer WT (LB)
Max Tongue
WT (LB)
Weight Distributing 5000 (2270 Kg) 500 (227 Kg)
Weight Carrying
Ball Mount
3500 (1589 Kg) 350 (159 Kg)
Wiring Access Location: SUV3
Form: F205 Rev A 5-6-05
Bumper
Fascia under covering
(some models)
Existing weldnuts
(both sides)
Frame Rail
jk
Fasteners Typical Both
Sides of Vehicle
Fits with mini spare tire stowed under vehicle. Will not fit with full size spare.
