Draw-Tite 75556 MAX-FRAME RECEIVER - Manual

Installation Instructions
Saturn Vue
Part Numbers:
87445
75556
44580

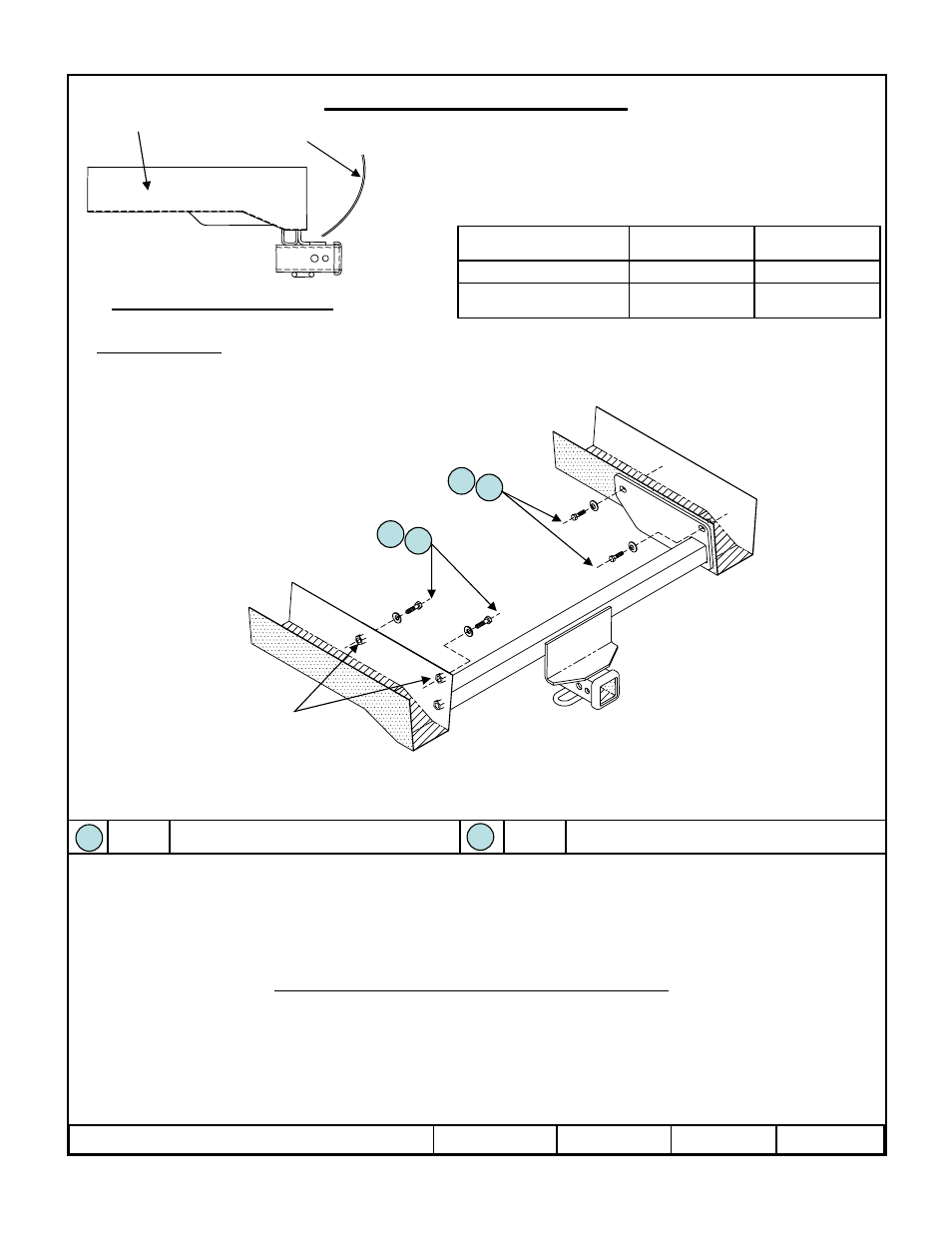

Hitch Shown In Proper Position
Equipment Required:
Wrenches: 18mm
Drill Bits: None
1. It may be necessary to temporarily lower exhaust system to allow for easier access to install frame bolts. If necessary remove
(2) rearward rubber isolator hangers per side. Spraying with a lubricant will aid in removing isolators off of studs.
2. Raise hitch into position and install 12mm bolts and conical washers supplied into existing weldnuts in vehicle frame as shown
above.
3. Reinstall exhaust hangers if removed. Torque all fasteners to specifications below.
Rev. A 6-26-07 75556N Sheet 1 of 3 z 2007 Cequent Towing Products
1/2” Conical washers Qty. (4) 12mm-1.75 X 35mm Cl 10.9 Hex head bolts Qty. (4)
Tighten all 12mm fasteners with torque wrench to 92 lb.-ft., 125 N*M
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: 75556F
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
400 lb. (182 Kg) 4000 lb. (1816 Kg)
Weight Carrying
Ball Mount
400 lb. (182 Kg) 4000lb. (1816 Kg) Weight Distributing
Max Tongue
WT
Max Gross
Trailer WT
Hitch type
Wiring Access Location: SUV3 & SUV4
Form: F205 Rev A 5-6-05
2 1
1
2
Vehicle
Frame
Fascia
1
2
Existing weldnuts in frame.
Typical both sides of vehicle.
