Draw-Tite 75362 MAX-FRAME RECEIVER User Manual

Installation instructions, Part numbers

Installation Instructions

Chevrolet Silverado Pickup

GMC Sierra Pickup

(Requires OEM Bumper)

Part Numbers:

75362
33093
44564
87186

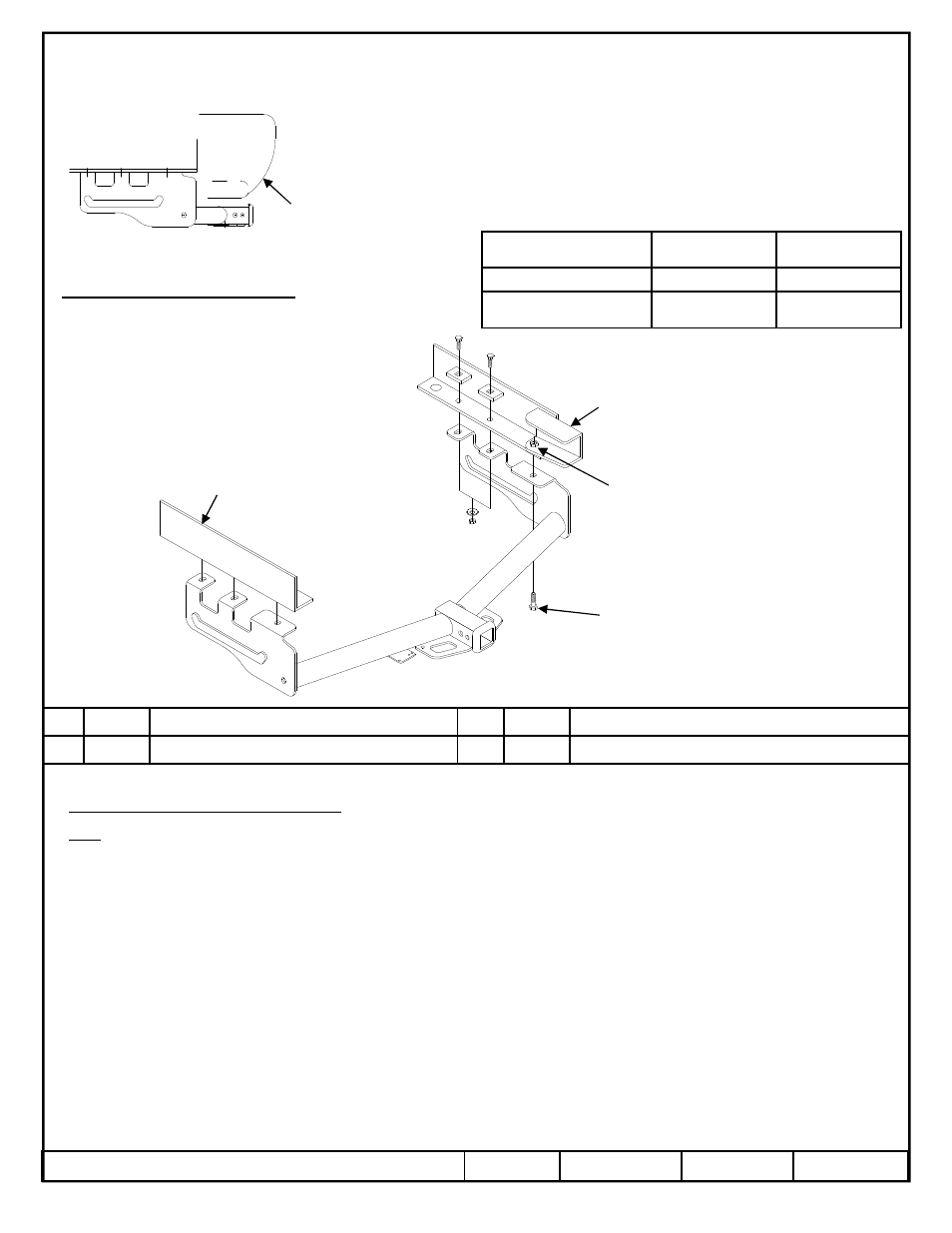

Hitch Shown In Proper Position

Equipment Required:

Wrenches: 3/4 , 7/8, 21 mm

Drill Bits: None

Frame

Fasteners Typical Both Sides of Vehicle

Note: Factory Installed Steel Step Bumper and Brackets Must Be Used In Conjunction with Hitch
1. Remove existing M14 bolts from end of each frame rail.
2. Lift receiver into position, locating rearmost slots in receiver under existing weldnuts in vehicle frame.
3. Reinstall existing M14 bolts through receiver and frame into existing weldnuts.
4. Install remaining fasteners as shown.

Tighten all 1/2 GR5 fasteners with torque wrench to 75 Lb.-Ft. (102 N*M)

z 2005, 2006, 2009, 2013 Cequent Performance Products

Sheet 1 of 3

75362N

9-6-13

Rev. G

Qty. (4)

Carriage Bolt 1/2-13 X 1-3/4

Qty. (4)

Conical Washer 1/2

Qty. (4)

Spacer

Qty. (4)

Hex Nut 1/2-13

Tighten M14 CL10.9 fasteners with torque wrench to 115 Lb.-Ft. (156 N*M)

Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to

prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working

beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5

and SAE J684.

Fastener Kit: 75362F

Do Not Exceed Lower of Towing Vehicle

Manufacturer’s Rating or

Hitch type

Max Gross

Trailer WT (LB)

Max Tongue

WT (LB)

Weight Distributing

8000 (3632 Kg)

800 (363 Kg)

Weight Carrying

Ball Mount

6000 (2724 Kg)

600 (272 Kg)

Wiring Access Location: PU3

Form: F205 Rev A 5-6-05

Existing Weldnut Typical both sides

Factory installed Bumper Bracket

- Typical Both Sides

Note: All Fasteners Typical Both Sides of Vehicle

Note: Factory Installed Steel Step Bumper
and Brackets Must Be Used In
Conjunction with Hitch

Existing M14 bolt

Printed in Mexico
