Draw-Tite 41932 ULTRA FRAME RECEIVER User Manual
Installation instructions, Chevrolet silverado pickup gmc sierra pickup, Part numbers

Installation Instructions
CHEVROLET SILVERADO PICKUP
GMC SIERRA PICKUP
VEHICLES W/ AMBER TURN SIGNALS AND FACTORY BUMPER
Part Numbers:
81587
41932

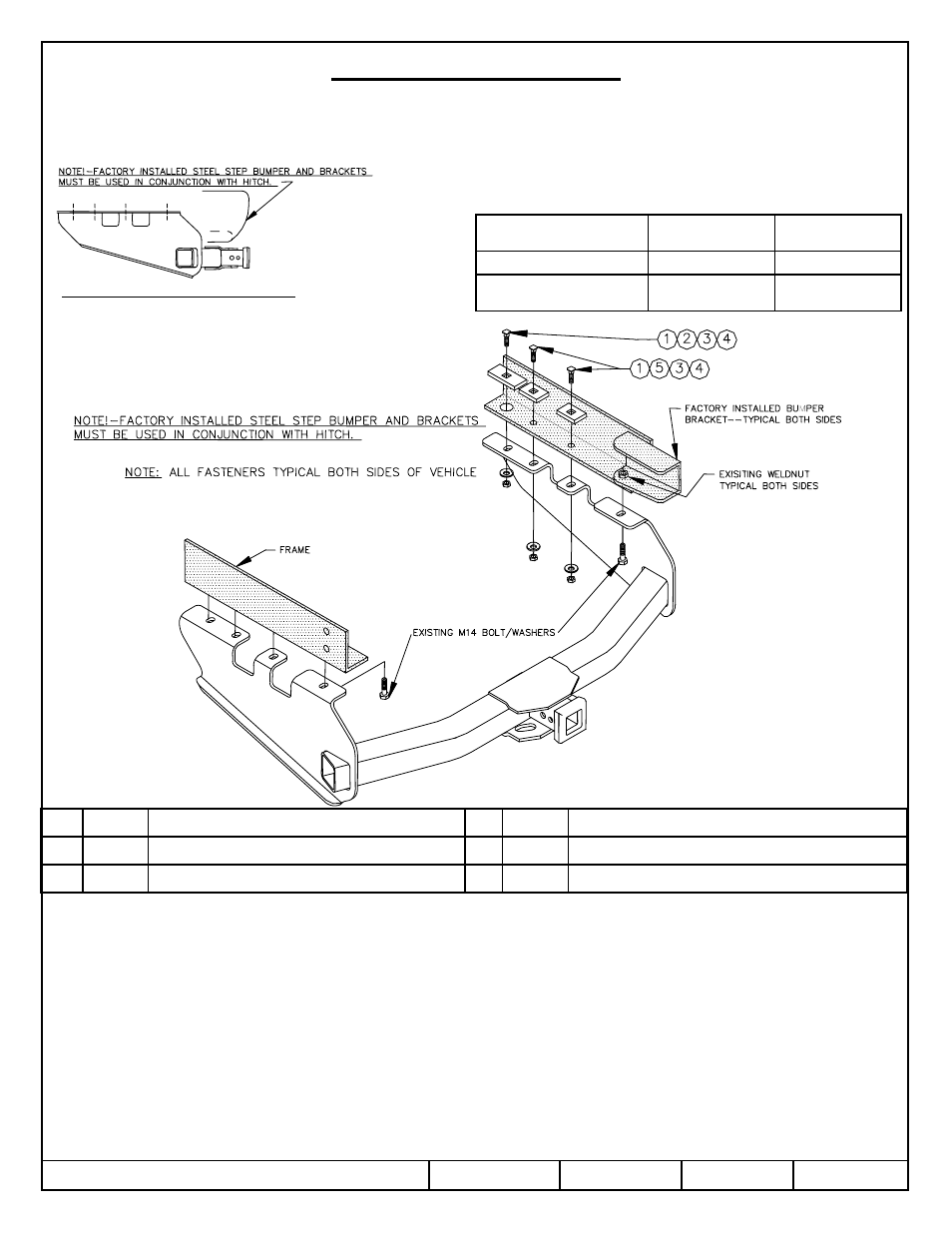

Hitch Shown In Proper Position
Equipment Required:
Wrenches: 7/8”, 21mm
Drill Bits: NONE
1.
Remove existing M14 bolts from end of each frame rail.
2.
Lift receiver into position, locating rearmost slots in receiver under existing weldnuts in vehicle frame.
3.
Reinstall existing M14 bolts through receiver and frame into existing weldnuts.
4.
Install remaining fasteners as shown.
Tighten all 1/2” GR 5 fasteners with torque wrench to 75 Lb.-Ft. (156 N*M)
Rev. B
5-18-06
41932N
Sheet 1 of 3
z
2005, 2006 Cequent Towing Products
Tighten all M14 fasteners with torque wrench to 115 Lb-Ft . (156 N*M)
Note: check hitch frequently, making sure all fasteners and ball are properly tightened. If hitch is removed, plug all holes in trunk pan or other body panels to
prevent entry of water and exhaust fumes. A hitch or ball which has been damaged should be removed and replaced. Observe safety precautions when working
beneath a vehicle and wear eye protection. Do not cut access or attachment holes with a torch.
This product complies with safety specifications and requirements for connecting devices and towing systems of the state of New York, V.E.S.C. Regulation V-5
and SAE J684.
Fastener Kit: 41932N
Do Not Exceed Lower of Towing Vehicle
Manufacturer’s Rating or
1200 (545 Kg)
12,000 (5448 Kg)
Weight Carrying
Ball Mount
1400 (636 Kg)
14,000 (6356 Kg)
Weight Distributing
Max Tongue
WT (LB)
Max Gross
Trailer WT (LB)
Hitch type
Wiring Access Location: PU3
