If you need to use your own Software Control program from a
PC or automation, the device allows communication through
an ASCII code protocol. All commands can be found on our
website: www.analogway.com
All Analog Way products equipped with an RS232 input are
compatible with Crestron, AMX, Medialon, and most major
control systems. TCP/IP control ports are also available on
most Analog Way products, as standard or as options.
To control an OPS200 product with an External Remote
Controller (PC Software Control - Touch Pad Controller…)
follow the indications below:
1. First establish an RS-232 communication between the
Remote Control Software and the OPS200 , in order to setup
the LAN parameters of the product.

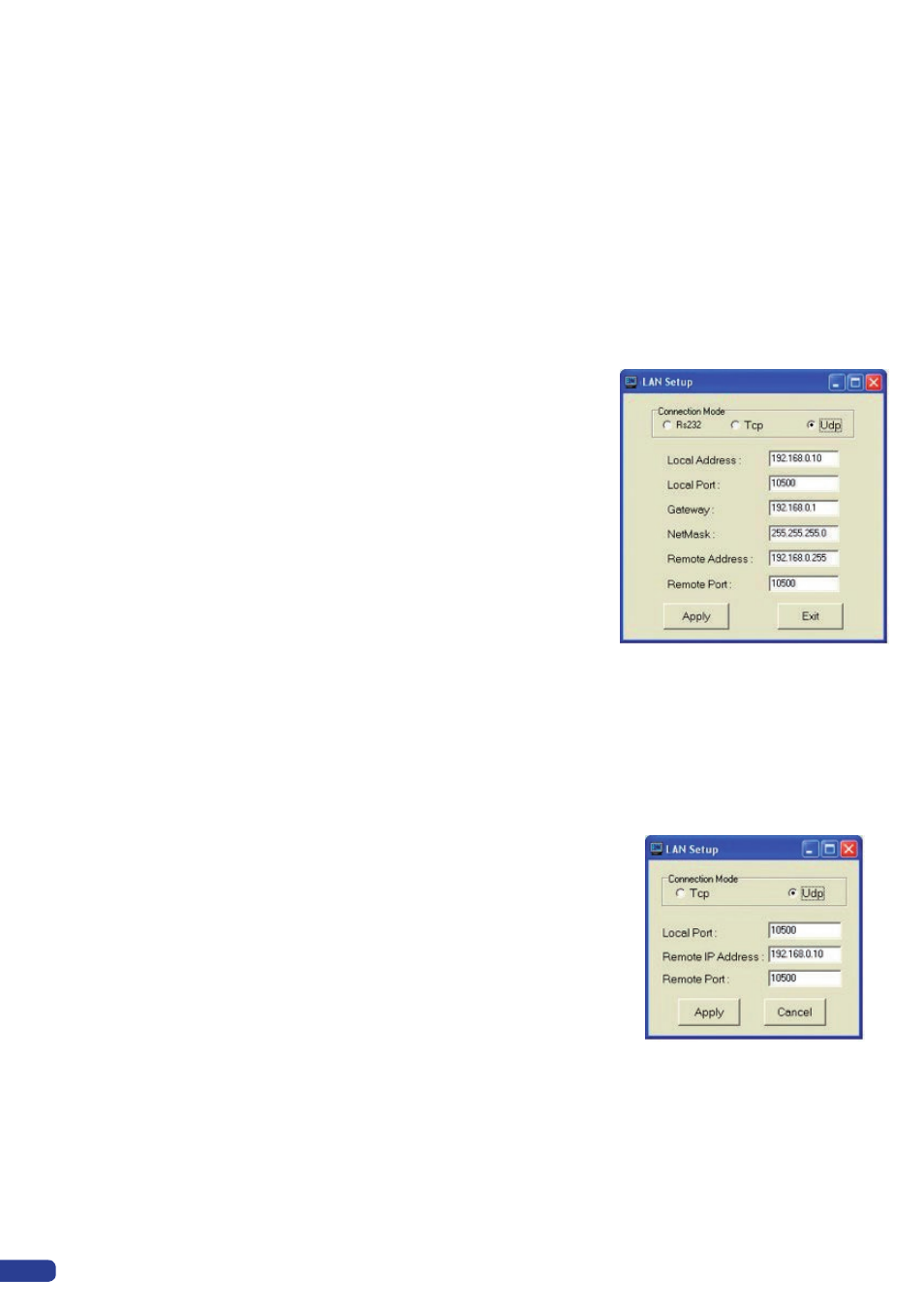

2. In the “Control” - “OPS200 LAN Setup” menu, configure the
connection of the OPS200 product in UDP mode and setup
the Local and Remote Addresses as well as the Local and
Remote Ports in concordance with your Network.
3. Configure the TCP/IP address of your External Remote
Controller.
In example: 192.168.000.001
4. Setup the UDP connection of your External Remote
Controller in concordance with your Network.
In example on the Remote Software in the “Control” - “RS232/
LAN Setup” - “LAN/Setup” menu.
5. Setup the LAN parameters in UDP mode in the “Console” -
“LAN Setup” menu.
In example: RK Address: 192.168.000.002
Remote Address: 192.168.000.010
Gateway Address: 192.168.000.001
RK Port: 10500
Remote Port: 10500
Netmask: 255.255.255.000
6. Select the LAN communication port in the remote controller
console - “RS232/LAN port” menu.
7. You can now control your OPS200 product with an External
Remote Controller.
7-3. EXTERNAL PROGRAMMING
