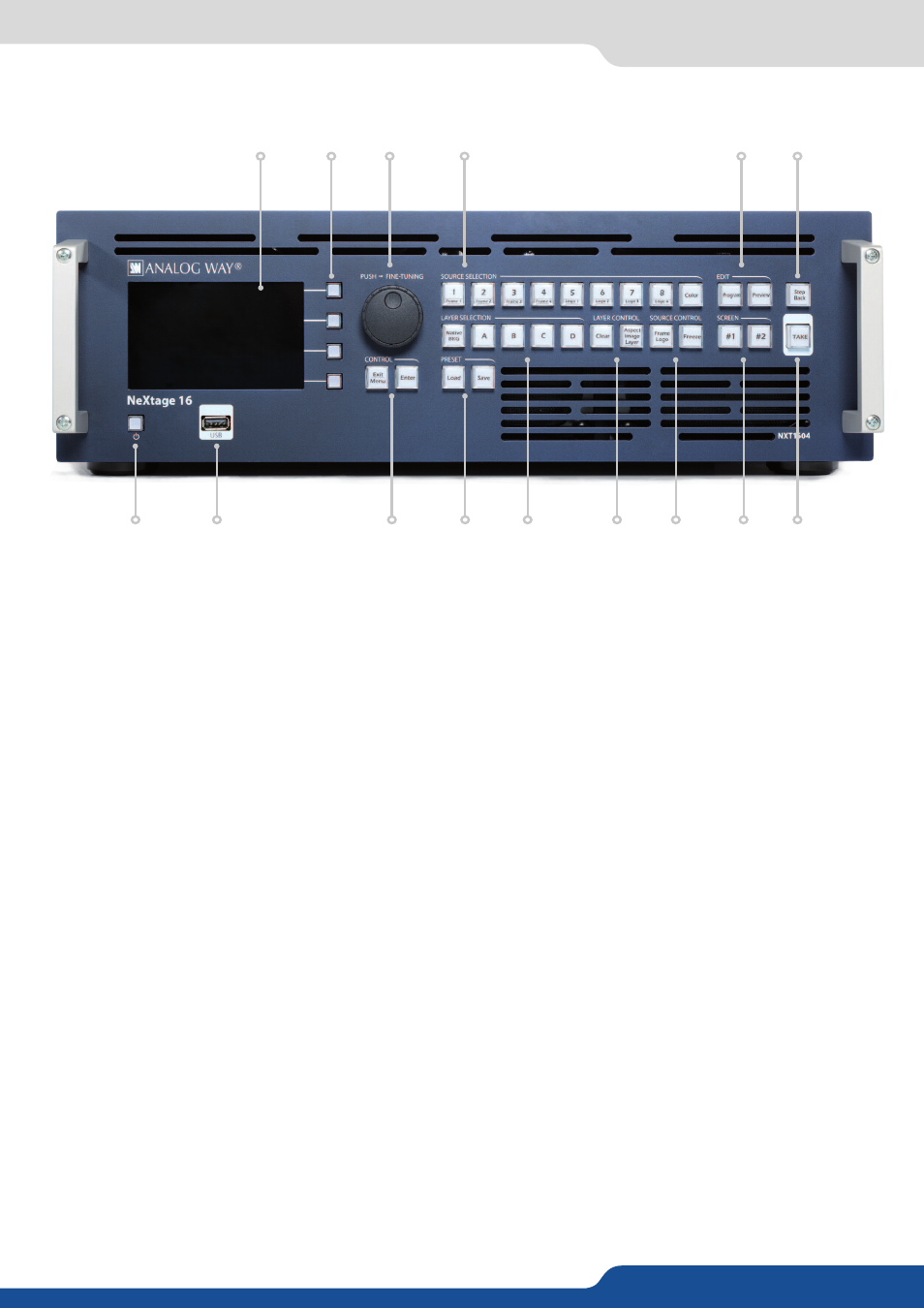

5.1.2 Front panel
5.1.2 Front panel
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1
1.
Stand-by:
Hold for 3 seconds for stand-by mode
2.
4,3’’ TFT color display (with WVGA resolution)
3.
Contextual buttons
4.
Menu scroll knob
5.
Source selection:
#1 to #8: access Frame #1 to #4 or Logo #5 to #8 - Color: fill in a layer with a color
6.
Edit:
Program: edit Program - Preview: edit Preview
7.
Step Back:
Recall the last preset into your Preview monitor
8.
TAKE:
Transition the pre-selected sources onto the Program output with the selected effects
9.
Screen:
#1 to #2: select a screen
10.
Source control:
Frame logo: press before selecting the Logo/Frame number - Freeze: freeze the input
linked to the current layer on the Program
11.
Layer control:
Clear: clear a layer - Aspect Image Layer: adjust Layer properties
12.
Layer selection:
Native Background: not scaled layer - A/B/C/D: scaled layers
13.
Preset:
Load: load a preset - Save: save a preset
14.
Control:
Exit/Menu: Home menu or back one level - Enter: validate the menu or command
15.
USB plug
