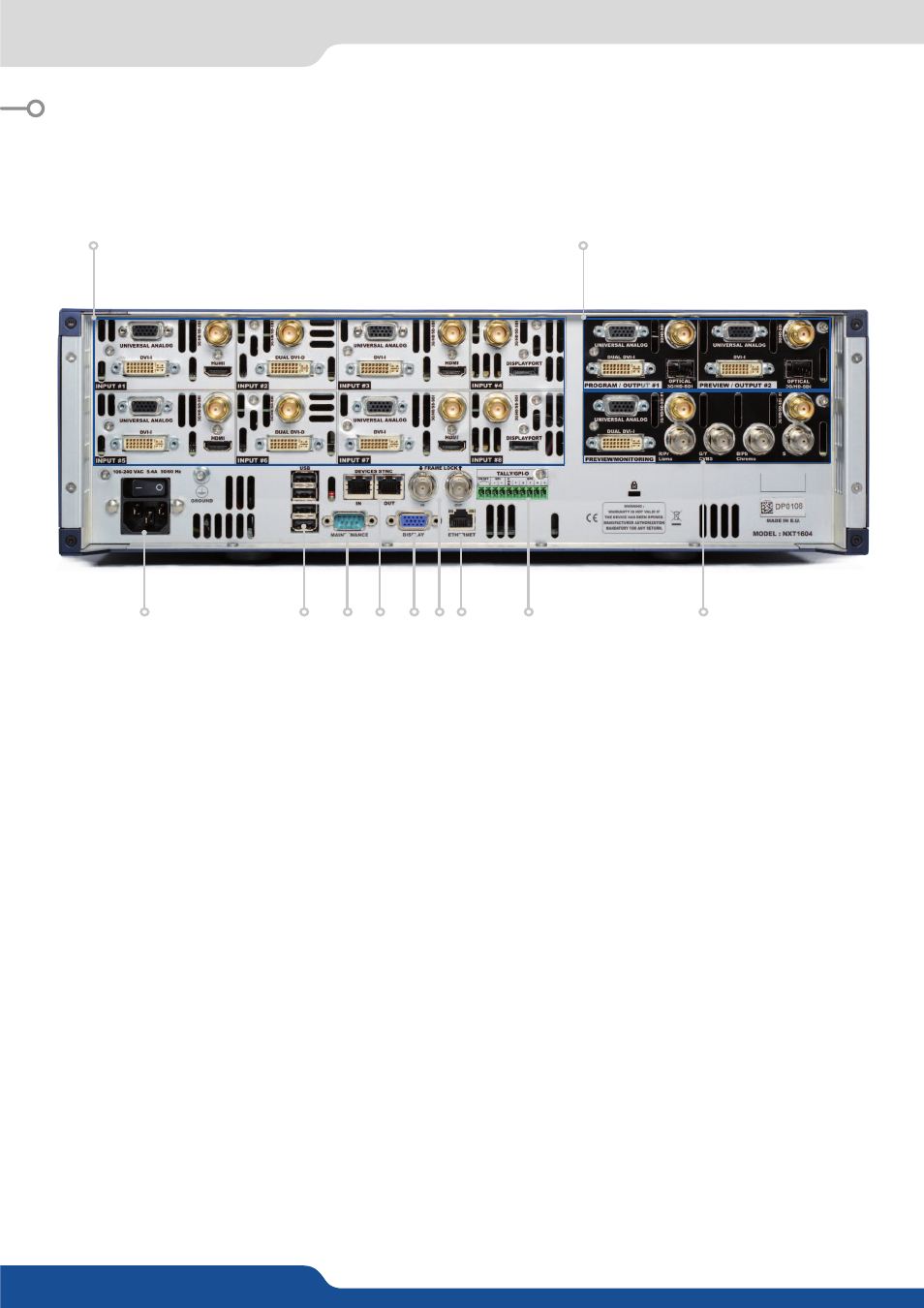

5.1.1 Rear panel
1.
Power supply:
100-240 VAC; 4.8A; 50/60Hz; 225W; internal, autoswitchable
2.
Inputs #1 to #8:
- 4 x HDMI
- 6 x DVI-I (Dual link available on Inputs #2 and #6)
- 2 x DisplayPort (Dual link available on Inputs #4 and #8)
- 8 x 3G/HD/SD-SDI
- 8 x Universal Analog(4 x HD15 & 4 x DVI-A)
3. Program output #1 - Preview output #2:
- 2 x Universal Analog (HD15 & DVI-A)
- 2 x DVI-I (DVI Dual-Link on output #1)
- 2 x Video Optical SFP module cage
- 3G/HD/SD-SDI
4.
Preview/Monitoring:
- 1 x Universal Analog (HD15 & DVI-A)
- 1 x DVI-I
- 2 x 3G/HD/SD-SDI
- 1 x RGBs analog output
5.
Tally, GPI-O connector
6.
Ethernet plug
7.
Frame Lock:
Analog Frame Lock plug and specific loop output
8.
Display output (not active)
9.
Devices sync.:
Used for effect sync in multi-machine mode.
10.
RS232 port:
Reserved for maintenance
11.
4 x USB plugs
