I 0202 - 4 GB
1.4 - SPECIFICATION
Single phase power supply..............................115 - 230 V 50-60 Hz
Protection class ...............................................IP 54
Max. power consumption.................................1100 W
Monitor ............................................................SVGA 15"
Balancing speed approx. .................................180 min -1
Cycle time for average wheel (14 Kg) ..........6 seconds
Balancing accuracy .........................................0,5 grams
Position resolution ...........................................± 1.4 °
Average noise level .........................................< 70 dB(A)
Distance rim - machine....................................0 - 280 mm (400 mm can be preset)
Rim width setting range ..................................1.5" ÷ 20" or 40 ÷ 510 mm
Diameter setting range ....................................10" ÷ 26" or 265 ÷ 665 mm
Total wheel diameter within guard ...................1067mm (42")
Total wheel width within guard.........................500 mm (42")
Max. wheel weight ...........................................65 Kg.
Min/max. compressed air pressure ................7 ÷ 10 Kg/cm 2
.........................................................................approx. 0.7 to 1 Mpa;
.........................................................................approx. 7 to 10 BAR;
.........................................................................approx. 100 to 145 PSI.

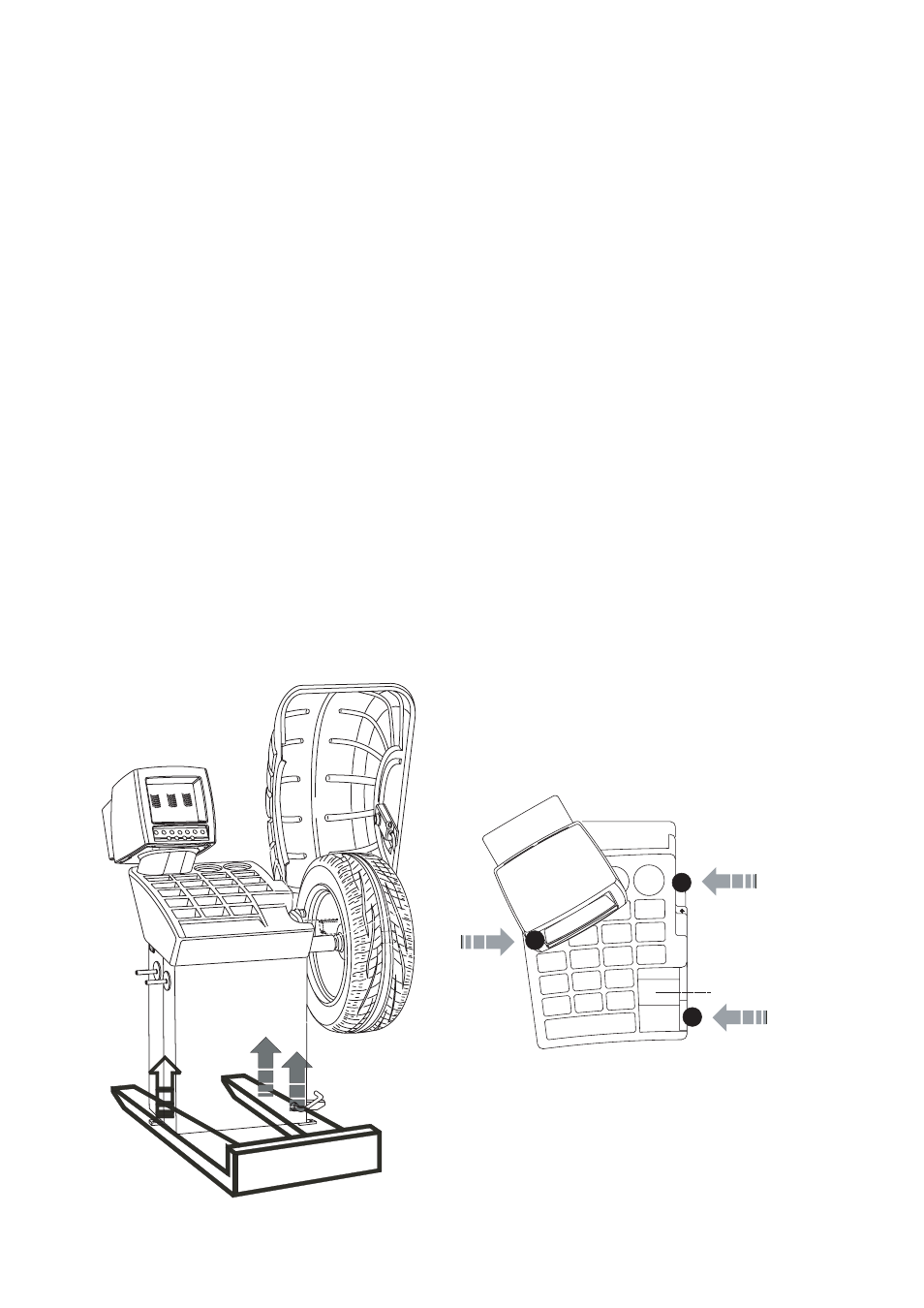

2 - HANDLING AND HOISTING
N.B.: DO NOT HOIST THE WHEEL BALANCER USING DIFFERENT GRIPS
Fig. 2 Fig. 2a
