5.5 RESULT OF MEASUREMENT

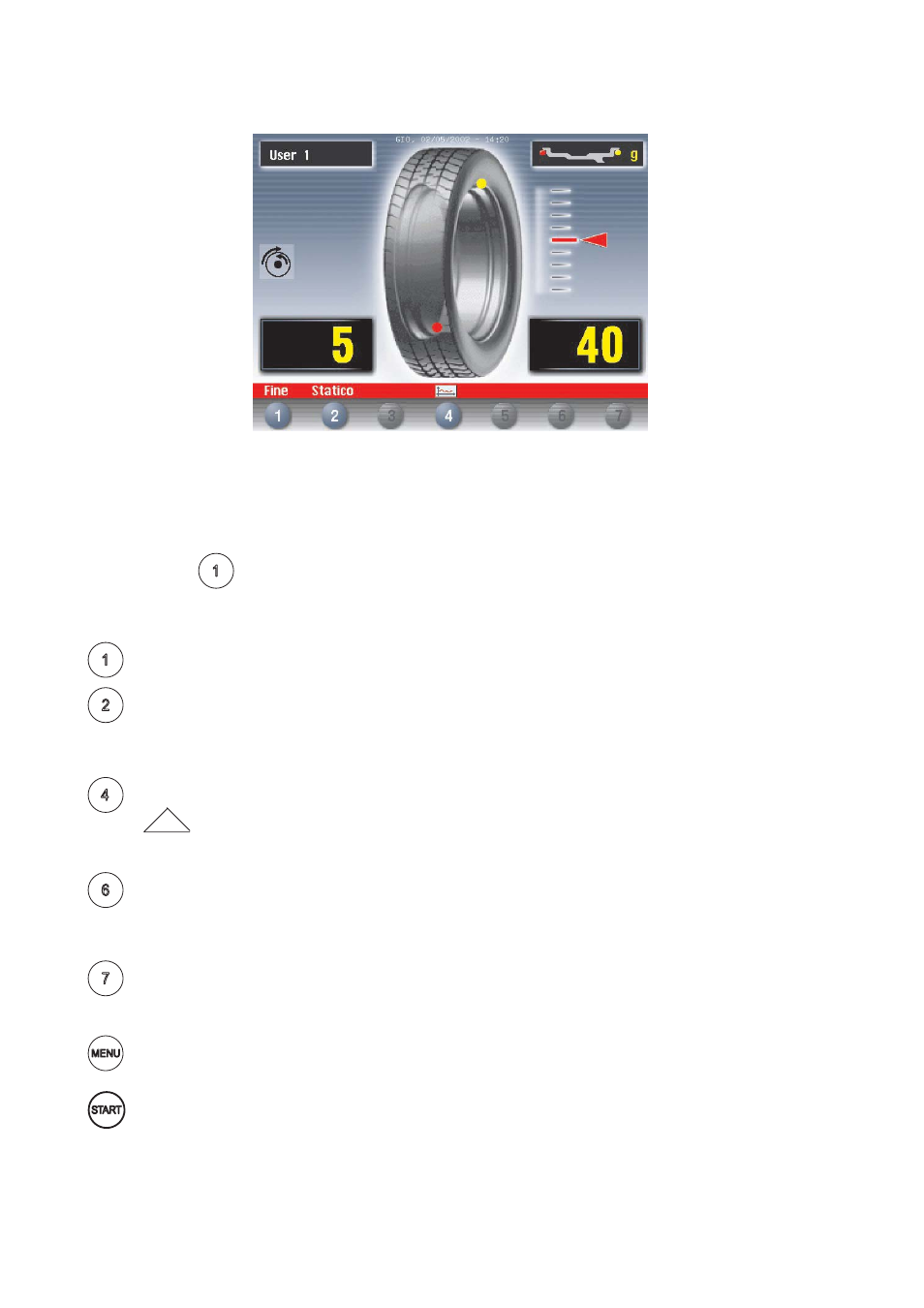

After performing a balancing spin, the unbalance values are displayed as well as arrows useful for
positioning the point of application of the correction weight. After positioning the wheel, apply the weight in
the 12 o’clock position. When the beep signal is enabled (see section ACUSTIC SIGNAL), reaching of the
correction position is accompanied by a “beep”.
If the unbalance is less than the chosen threshold value, the “OK” appears instead of the unbalance value
to indicate, on that particular side, the wheel is in tolerance; the residual unbalance can be displayed by
pressing button with an accuracy of 0.5 g (0.1 oz).
The following buttons are enabled:
Display of residual unbalance
Selection of correction mode (STATIC/DUAL SURFACE). When the mode is changed, the
unbalance values are recalculated automatically on the basis of the previous spin.
Eccentricity measurement graph (option). The symbol above the key is fl anked by the symbol
!
if the harmonic eccentricity exceeds the limit indicated by the setup parameters (First
harmonic limit ).
Split control for splitting of unbalance over presettable components (“SPLIT” control). Button
only enabled in STATIC or ALU S correction.
Indication of the longitudinal position of the unbalance (Indication of exact correction weight
position) is enabled
For selection of special functions
Balancing spin.
N.B. If the machine remains on this screen without being used for more than the time preset in the Setup
parameters (6), the screen automatically returns to the screen-save.
