5.3 - PRESETTING OF WHEEL DIMENSIONS

5.3.1 AUTOMATIC PRESETTING
(see also

CORRECTION MODE

)

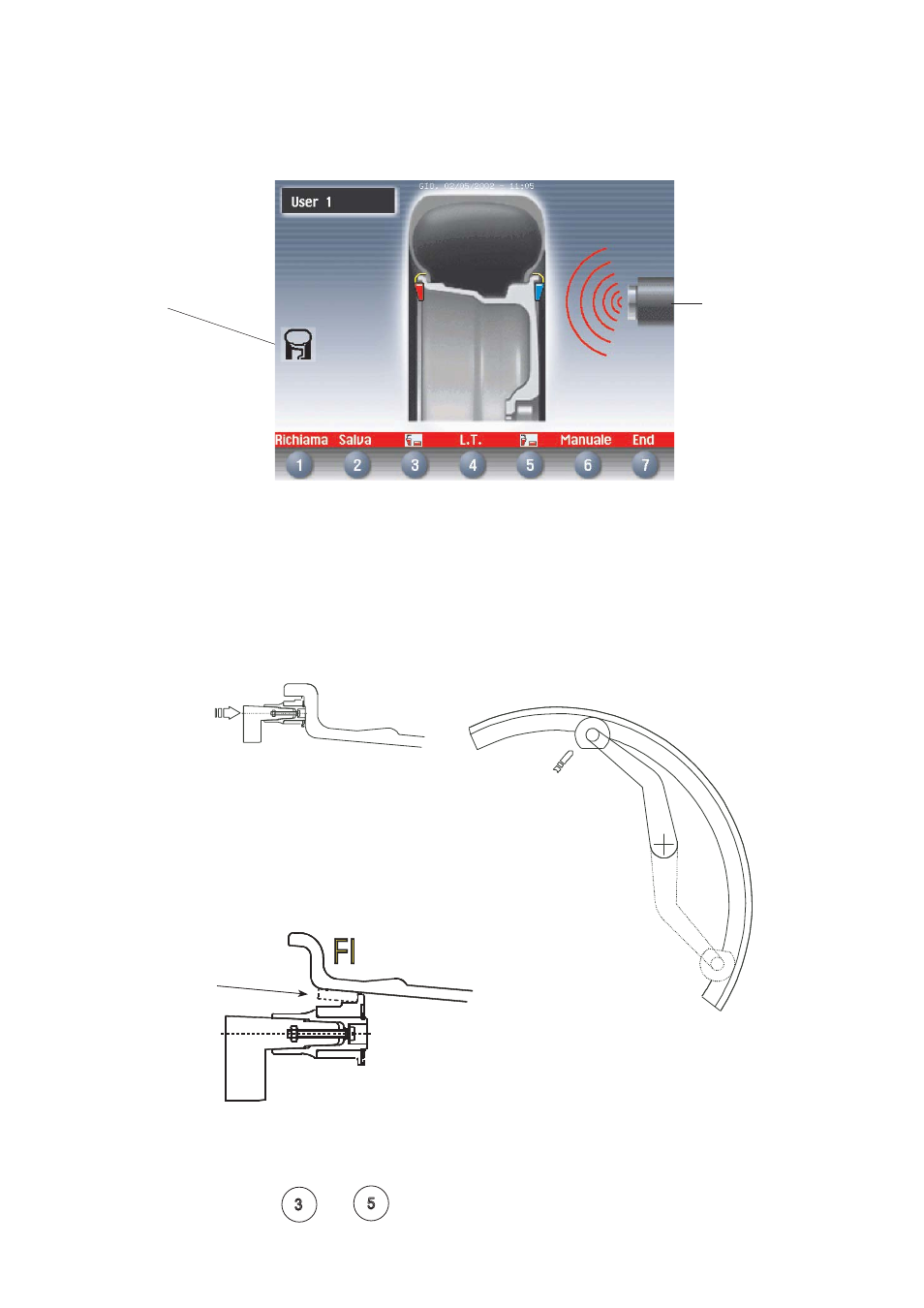

The screen appears upon removing the distance + diameter gauge.
The “dimension acquired” message is indicated by the correction weight symbol, which changes from
blue to red.

- INNER SIDE WEIGHT: Using the special grip, move the end of the gauge against the rim in position:

a) Sprung weight : in one of the positions A/B indicated in fi gure 8.

INDICATOR
L.T. function enabled
(see Buttons
Enabled)

INDICATOR: Width
Sonar function
enabled

b) Adhesive weight: in the position indicated below

- Hold the gauge in position for at least 2 seconds.

If the acoustic signal is enabled (see Acoustic signal), the acquisition of the dimensions is accompanied

by a “beep”. Manual setting is possible using the buttons as described in Manual setting.

N.B.: Use pushbuttons

and

to select the type of weight to apply (see

CORRECTION MODE

)

Position of
adhesive
weight

Fig. 8

Fig. 9
