- OUTER SIDE WEIGHT:

a) Weight outside the rim
Wheel width measurement is carried out by the SONAR by closing the protection system after a valid diameter
and distance measurement. If the width measured is incorrect (out of range), the following message appears:
"Sonar measure is out of range"
"

F1 = repeat"

" F2 = manual set-up"

(If the width sonar is not used, see "

MANUAL PRESETTING

“)

b) Hidden inside adhesive weight

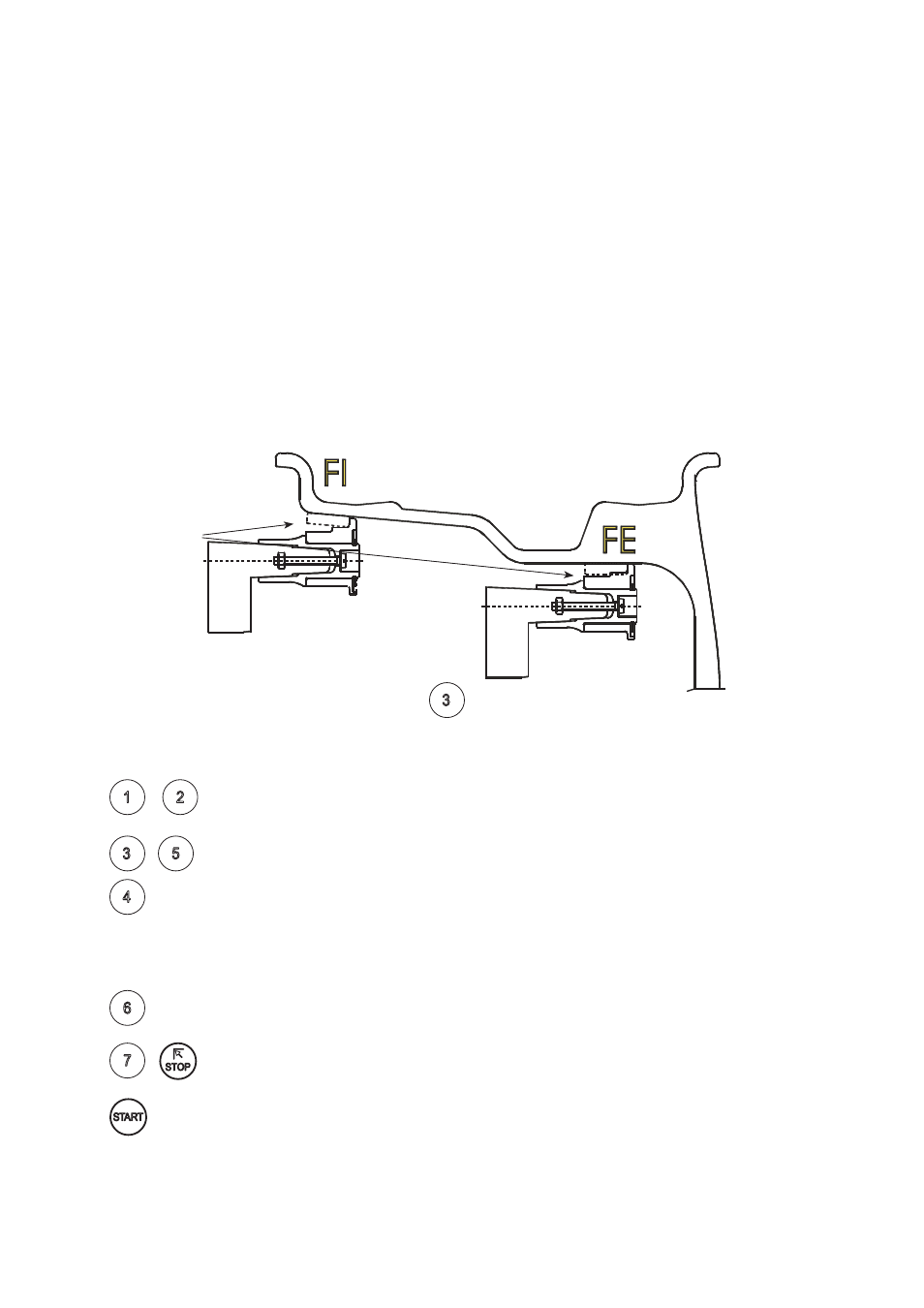

After the measurement performed for the FI inner side, as indicated in fi g. 10, pull out the gauge again to
store the data for the FE outer side; choose position A or B (fi g. 8) at your choice. Keep this position for at
least 2 seconds. The counterweight symbols change colour.
When the acoustic signal is enabled (see

ACOUSTIC SIGNAL

), the acquisition is accompanied by a “beep”.

After having detected the dimensions, use the

key to indicate the type of correction selected for

the inner side.

The following buttons are enabled:

Management of save user recall

Selection of spring or adhesive weight for inner/outer application.

The

L.T. key (LIGHT TRUCK) used to improve the dimensional calibration of large-

diameter wheels such as off-road, trucks, wheels which protrude signifi cantly from the

rim.

Press

the

L.T. key, after distance measurement, immediately before lowering the

guard for Width Measurement. The option is disengaged at the end of current Width

Measurement.

Selecting the manual dimension presetting screen

Return to initial screen

Balancing

run

Position of
adhesive
weights
