1.4 Front Panel Overview
Front Panel Description
Power On/Off switch
VFD display
Voltage adjust knob
Current adjust knob
Up/Down/Left/Right arrow keys
Used to adjust cursor location and selecting menu items.
On/Off / Lock button
Control the output state or locks the front panel button.
Save/Recall button
Used to save and recall instrument settings.
Meter display toggle / Local button
Used to toggle display between setting and measured voltage and current or
to set the instrument back to local mode.
Enter / Trigger button
Used to confirm setting/parameter changes or to provide a single trigger for
list operation.
Escape button
Used to exit menu settings.
Numeric keypad
I-set / P-max button
Used to configure output current or set the maximum power output limit.
OVP set button
Used to configure over voltage protection (OVP) value.
V-set / Slope button
Used to configure output voltage or set the rise and fall time of the output
voltage.
1 2 3 4 5 10
15 12 13 14
8 9 6 7 16
11
1
2
3
4
5
6
7
8
14
12
13
9
10
11

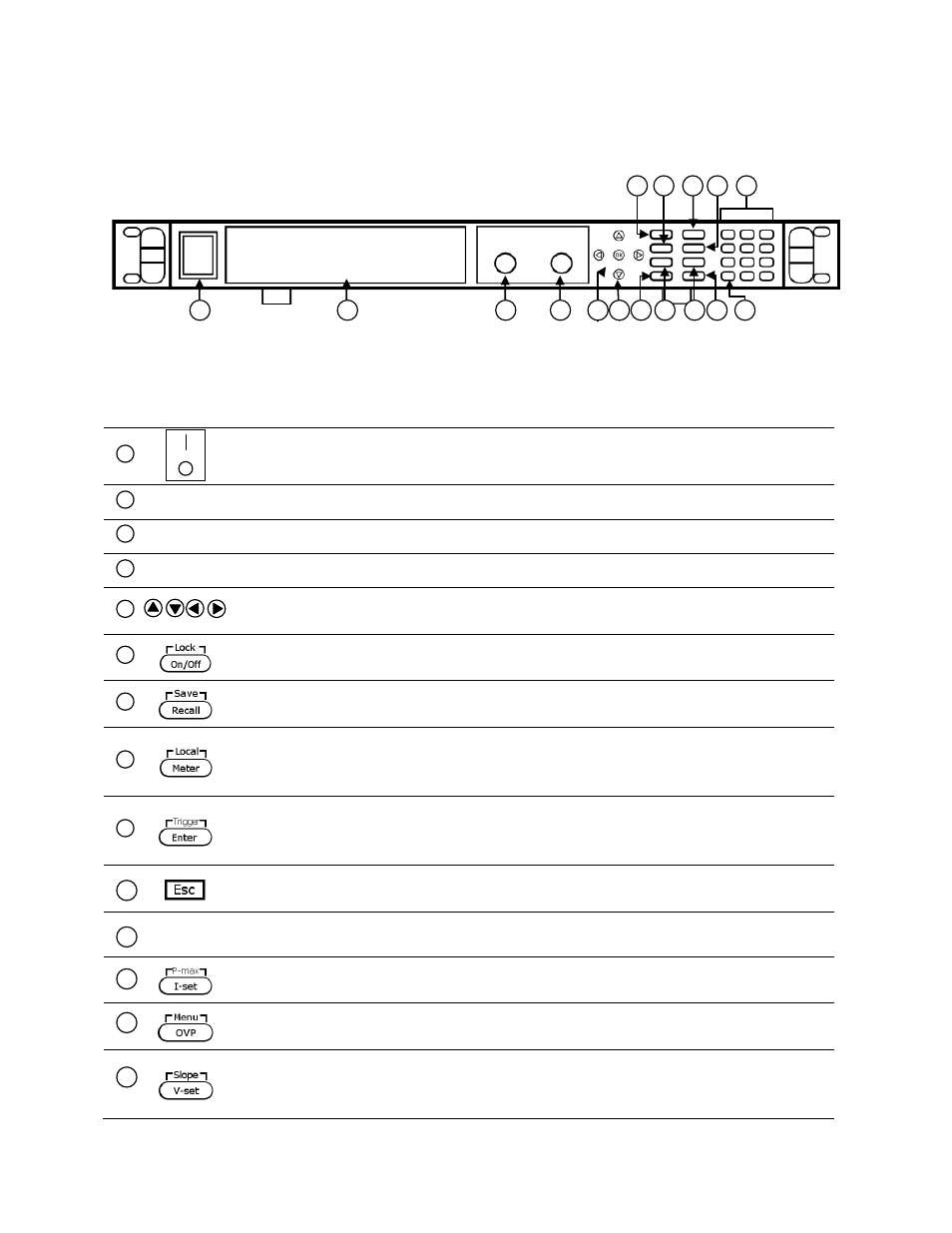

Figure 1.3 - Front Panel for 9115/9115-AT/9116
