Data Sheet
Unmatched Performance for Greater Insight
Into Your Design to Get Your Work Done
Faster
The DPO7000 Series are the new generation of real-time digital phosphor
oscilloscopes and are the industry’s best solution to the challenging signal
integrity issues faced by designers verifying, characterizing, debugging, and
testing sophisticated electronic designs.
The family features exceptional performance in signal acquisition and
analysis, operational simplicity, and unmatched debugging tools to
accelerate your day-to-day tasks. The largest screen in the industry and
the intuitive user interface provide easy access to the maximum amount of
information.
Unmatched Acquisition Performance
Signal Fidelity of Tektronix Oscilloscopes Ensures
Confidence in Your Measurement Results
High sample rate on all models, on all channels, to capture more signal
details (transients, imperfections, fast edges)
40 GS/s on one channel on the 2.5 GHz and 3.5 GHz models
Option 2SR to double the maximum real-time sample rate for the
1 GHz model
High bandwidth up to 3.5 GHz, matched across 2, 3, or 4 channels
and enabled by Tektronix proprietary DSP enhancement. The
user-selectable DSP filter on each channel provides magnitude and
phase correction plus extension to 3.5 GHz for more accurate signal
fidelity for complex measurements. The DSP filter on each channel can
also be switched off to take advantage of true 2.5 GHz analog bandwidth
for applications needing the highest available raw data capture.
The DPO7000 Series oscilloscopes include as a standard feature a
series of user-selectable bandwidth limit filters. These filters preserve
the instrument’s bandwidth roll-off characteristics, flatness, and phase
linearity within the new frequency range, thereby reducing the effects of
out-of-band noise on measurements. Now, designers can purchase one
instrument for their highest bandwidth needs and easily optimize it to
handle lower-frequency measurements as well.
Very low jitter noise floor and vertical accuracy for very accurate
measurements
Long acquisition to provide more resolution and longer time sequence
Standard 10 million data points per channel on the DPO7000 Series
Optional up to 500 million total data points on 2.5 GHz and 3.5 GHz
models
Optional up to 250 million total data points on the 500 MHz and 1 GHz
models
Easily manage this deep record length, provide detailed comparison
and analysis of multiple waveform segments with the MultiView
Zoom™ feature. Automatically scroll through deep records visually, or
create a math expression to instantly highlight differences
Highest-performance probing solutions for differential and single-ended
voltage signals as well as current measurement, because accurate
design verification depends on high-bandwidth access to critical signals
and high-fidelity signal capture

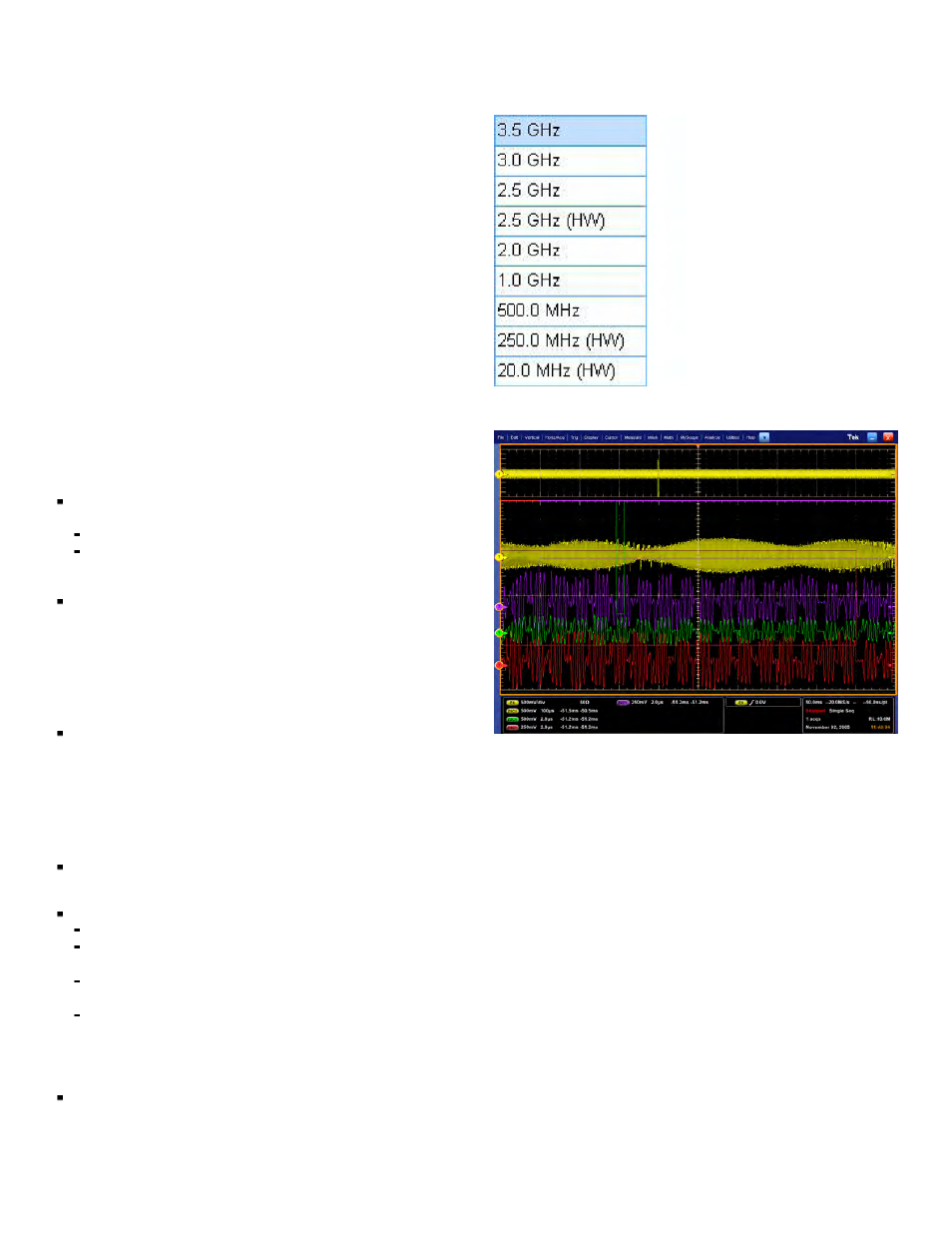

User-selectable bandwidth limiting choices.
Zoom in on four areas of interest simultaneously to compare them.
Unmatched Versatility
Get the Most of Your Oscilloscope by Fully Controlling
its Waveform Acquisition and Display Parameters
You have the choice of three horizontal time base modes of operation. If you
are simply doing signal exploration and want to interact with a lively signal,
you will use the Automatic or interactive default mode that provides you with
the liveliest display update rate. If you want a precise measurement and
the highest real-time sample rate that will give you the most measurement
accuracy, then the Constant Sample Rate mode is for you. It will maintain
the highest sample rate and provide the best real-time resolution. The last
mode is called the Manual mode because it ensures direct and independent
control of the sample rate and record length.
With the MyScope ® Feature, Create Your Own Control
Windows with Only the Controls, Features, and
Capabilities that You Care About
Easily create your own personalized "toolbox" of oscilloscope features
in a matter of minutes using a simple, visual, drag-and-drop process.
