Fluke Networks OptiView™ Integrated Network Analyzer
Protocols

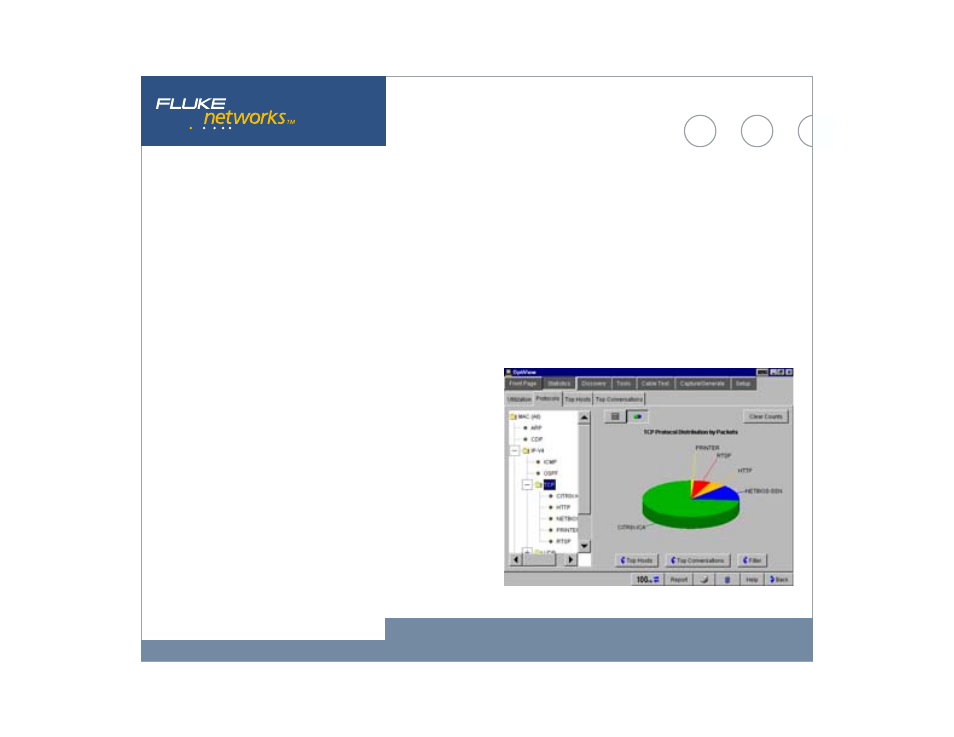

The protocols screen displays the current list of active protocols as
seen on the network segment to which the analyzer is connected. The
left side of the screen displays the protocol tree that may be expanded
to show all protocols, and sub-protocols running–from the MAC layer all
the way to the application layer. The protocol mix may be displayed at
any level in a pie chart or tabular format. When used in tabular mode
the protocols may be sorted by Packets or Octets by pressing the
Packets or Octets column header. The Top Hosts and Top Conversations
keys allow you to display the top hosts or conversations by protocol
type. For example, expanding TCP, selecting HTTP and pressing the Top
Conversations key will provide a display of all the conversations using
HTTP protocol.
